Home > Products > CATV/Trunk Amplifier > Hot sale outdoor two way line catv transformer signal trunk amplifier

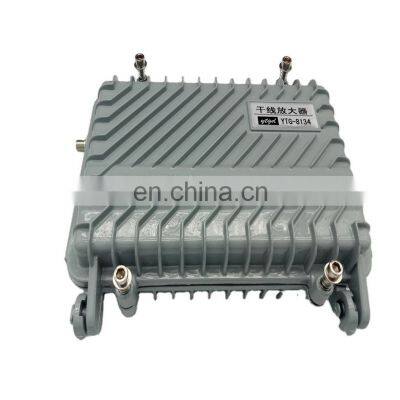

Hot sale outdoor two way line catv transformer signal trunk amplifier
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
hot sale enclosure line outdoor 2 outputs catv trunk amplifier
-
best price outdoor line 4 ports cable tv transformer catv signal trunk amplifier
-
high quality 4 outputs power consumption outdoor line catv signal trunk amplifier
-
wholesale adjustable resistance signal metal two way outdoor trunk amplifier
-
catv ftth shutter mini fiber passive micro optical receiver node rfog hfc optical mini node receiver with power supply
-
Hot selling 1550/1577/1270 nm 5G/10G XGPON FTTH Mini active optical node CATV Optical Receiver
Product Description
| Item | unit | YTG134 | YTG8134 | Reverse parameter |
| Frequency Range | MHZ | 47/750 | 47-860 | 5-30/42/65 |
|
Frequency Division (selected by user) |
MHZ | 30/47 , 42/58 , 65/87 | ||
| Rated Gain | db | 30 | 30 | -2 |
| Band Flatness | db | ±0.75 | ±0.75 | +0.3 |
| Rated input level | dBuV | 72 | 72 | 98 |
| Rated output level | dBuV | 102 | 102 | 96-80 |
| Gain ajustment Range | db | 0-20 | -2-18 | |
| slope ajustment Range | db | 0-20 | -3db /precision | |
| Noise figure | db | ≤8 | ≤10 | ≤6 |
| (CTB/59CH input | db | 63 | 61 | 78 |
| (COS/59CH input | db | 62 | 61 | 70 |
| Tempreture factor (-15℃-45℃) | db | -1.5db-1db |
Take SA8134 As Example |
|
| Reflection loss | db | ≥16 | ||
| Lighting Resistance | KV | 5(10/700s) | ||
| Power Voltage | V | AC22±10% or AC 30-60v | ||
| Power consumption | VA | 12 | ||
| Dementions | mm |
255×140×81(2 port) 290×190×130(4 port) |
||
| Working Tempeture | ℃ | -20 ±50 | ||
| Weight | KG | 1.82 | ||
| Impedance | Ω | 75 | ||
