Free Project Design Catv Headend Rf Modulator 16 Channels Cable Tv Rf Modulator
- 1000 per Month
- T/T Credit Card
You May Like
-
Free Print Cable Tv Rf Modulator Catv Modulator Price
-
Customized Professional Hotel Tv Rf 24 Channel Fixed Modulator
-
top selling digital dvbt encoder isdbt modulator with low price
-
best price standard type iptv fm dvb professional audio video modulator
-
Promotion 24 channels 8 carriers HD input rf out digital encoder modulator
-
Mux scarmbling 3316/3332 IPTV 16 channel ip Qam Modulator
Product Description
Features

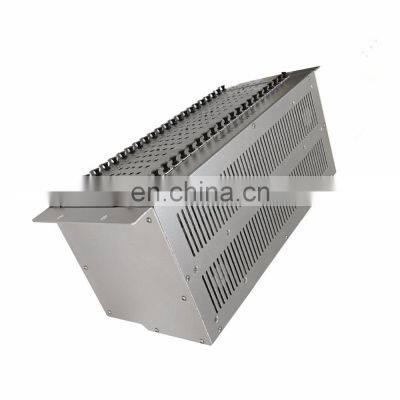

24 channels module type modulator tv is low cost and high stability, specially designed for MATV or SMATV system. Professional design with simple installation. It is easily operated or maintained by users.
1. 1 set can install 24 channels. Adjacent channel workable.
2. Individual function keys for each channel, simple operation.
3. High efficiency SMPS enable stable performance.
4. All the figures already pre-set in the factory. No further adjustment to the modulator tv in case of necessary.
5. 19” rack mountable.
Specifications
|
Frequency Range |
47~860MHz (Any one channel) |
|
Output Level |
≥105dBμV |
|
Output Level Adjustment Range |
0~-20dB (Variable) |
|
Video to Audio Carrier |
-10dB~-30dB adjustable |
|
Output Impedance |
75Ω |
|
Spurious Output Suppression |
≥60dB |
|
Frequency Accuracy |
≤±5KHz (VHF) , ≤±10KHz (UHF) |
|
Video Output Reflection |
≥12dB (VHF); ≥10dB (UHF) |
|
Video Input Level |
1.0Vp-p (87.5% Modulation) |
|
Video Input Impedance |
75Ω |
|
Differential Gain |
≤5% (87.5% Modulation) |
|
Differential Phase |
≤5°(87.5% Modulation) |
|
C/L Delay |
≤45 ns |
|
Flatness |
±1dB |
|
Video Modulator Depth |
0~90% (Variable) |
|
Video S/N |
≥55dB |
|
Audio Input Level |
1Vp-p (±50KHz) |
|
Audio Input Impedance |
600Ω |
|
Audio S/N |
≥57dB |
|
Audio Pre-weighted |
50μs |
|
Power Supply |
AC 220V±10% 50Hz±2Hz,50W |
|
Working Temperature |
0~40℃ |
|
Dimensions |
19 Inch 4 U housing |
