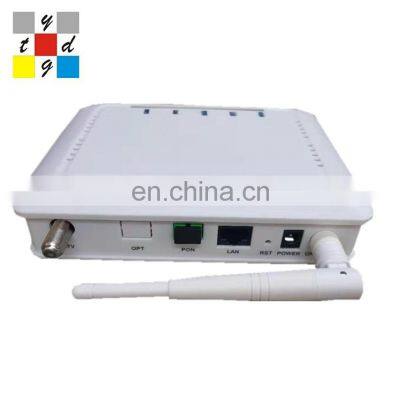

XPON 1GE+CATV+WIFI GPON ONU

Features:

l Conform to ITU-T G.984 GEPON standards.

l Two WIFI antenna:  a internal antenna , a External antenna

l Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services

l Support frame filtering and suppression

l Support standard 802.1Q Vlan function, support VLAN conversion

l Support 4094 VLANs (802.1Q)

l Support Dynamic Bandwidth Allocation (DBA) function

l Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc

l Single ONU supports up to 1 LLID.

l Support IGMP Snooping

l Support Ethernet port ratelimit loop detection

l Support power failure alarm

l Support lightning protection for power supply and lightning protection for service port

l Complies with 2.4GHz IEEE802.11n v2.0 and bacKWFard compatible with IEEE 802.11b/g standards

l Supports NAT/NAPT IP sharing

l WAN Protocols: PPPoE/StaticIP/PPTP/DHCP

l Supports advanced 2T2R MIMO technology to enhance the throughput and coverage range significantly

l High speed data rate - up to 300Mbps

CATV service function:

Port features:

l 1  PON ports (2.5G)

l 1  10/100/1000M port

l 2  WLAN Port:  a internal antenna , a External antenna

l 1  CATV Port

Physical features:

l Power supply: 12VDC

l Power consumption: 4W

l Dimension: 161mm*38mm*115mm(W*H*D)

l Packing Dimension: 192mm*68mm*128mm(W*H*D)

l Net weight :0.22Kg

l Packing weight :0.35Kg

l Temperature:

  Working temperature:0~55℃

  Storage temperature: -30~60℃

l Relative humidity: 10~90% (non-condensing)
