High Temperature Steam Sterilization Pot/aluminum Can Retort Machine Sterilization Tank for Aluminum Cans Food Canned Seafood
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Fully Automatic Electric Heating Steam Generator
-
Fully Automatic Canned Food High Pressure Retort Cooker
-
Steam Heating Automatic Food Sterilizing Retort Machine
-
Industrial Sterilizing Retort Machine For FoodBeverage
-
Customized High Pressure Vessel Food Sterilization Autoclave
-
PP Bottle Canned Drink Sterilizing Machine
Product Description
Products Description
Spray sterilization pot is to inject a small amount of process water to reach the predetermined position (can't soak the product) through a high efficiency circulation pump - strainer - high efficiency heat exchanger to inject water into the spray pipe, and then through the spray nozzle to spray hot water atomization to the surface of food, the heat distribution in the pot is uniform,no sterilization dead Angle.The water is heated and cooled by heat exchanger, and the heating and cooling speed are fast, which can sterilize the products efficiently, comprehensively and stably.

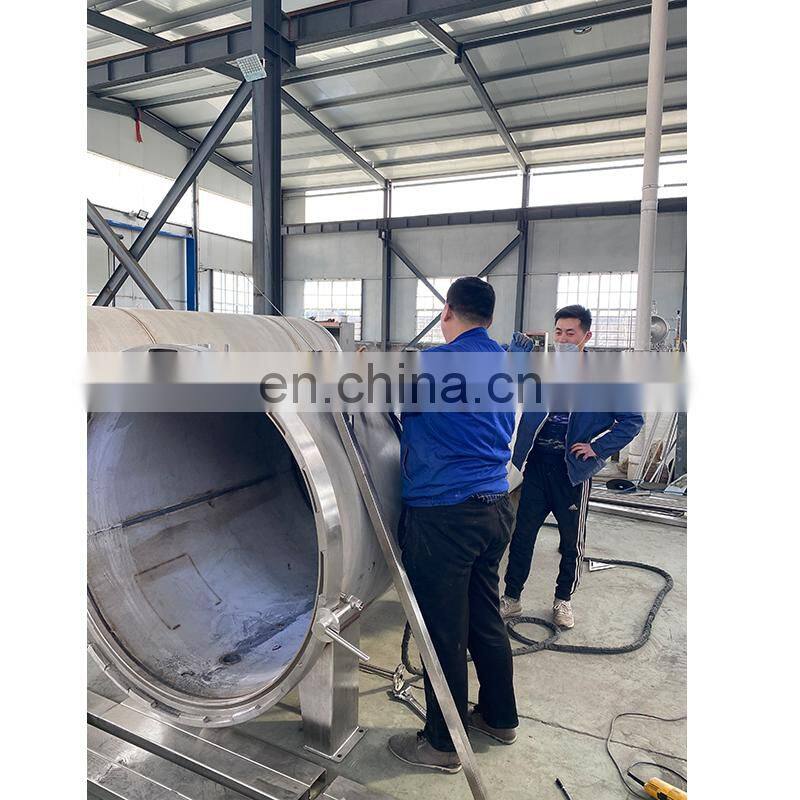

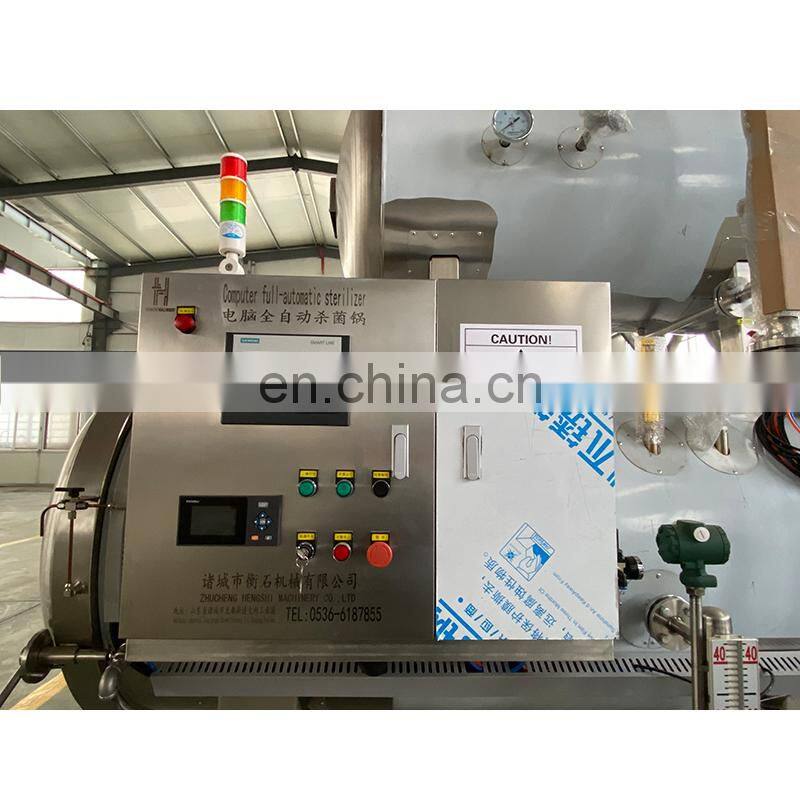

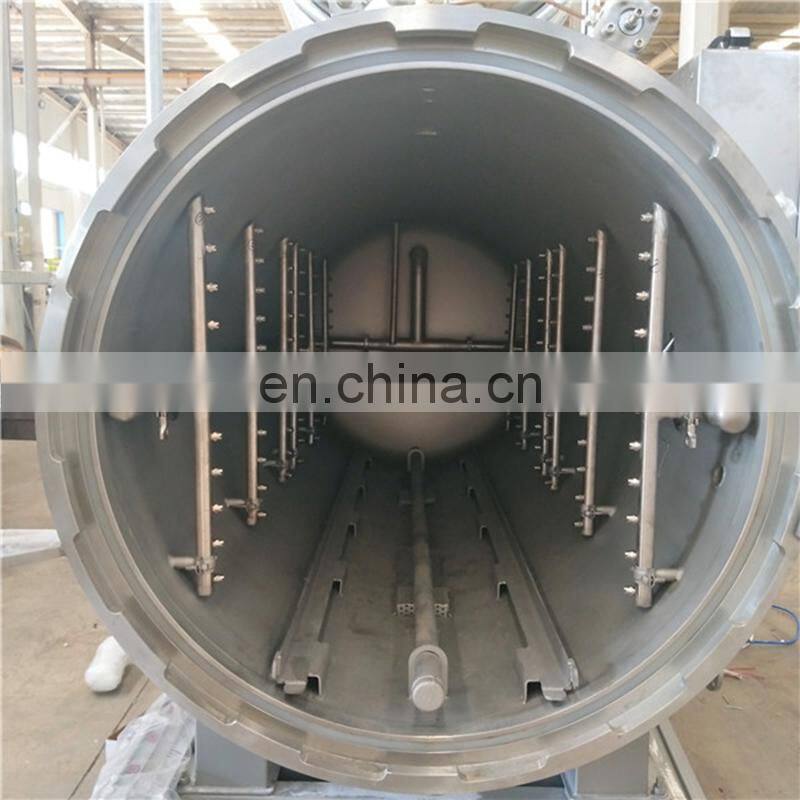

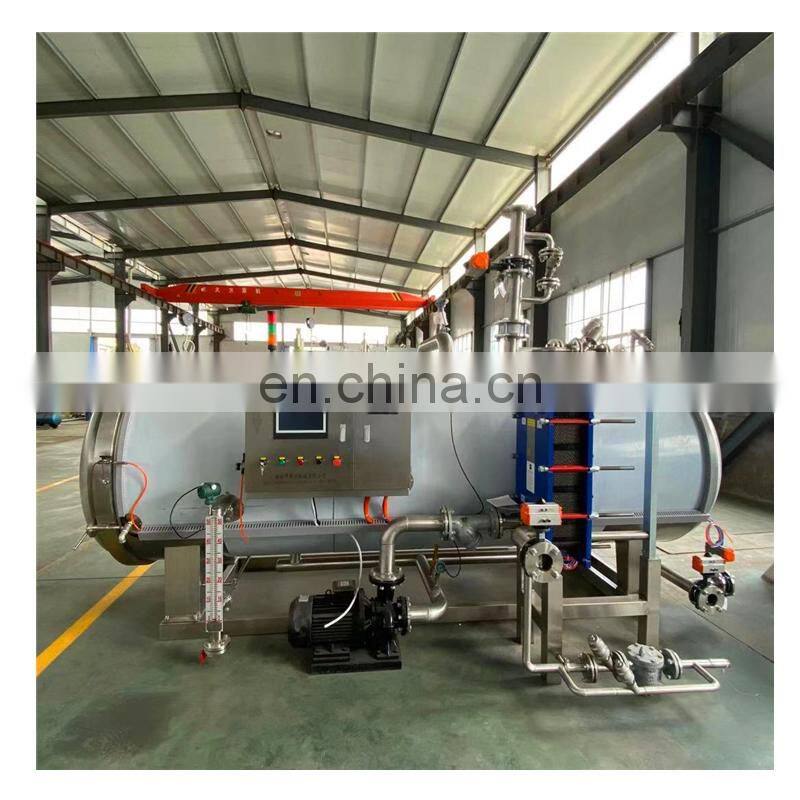

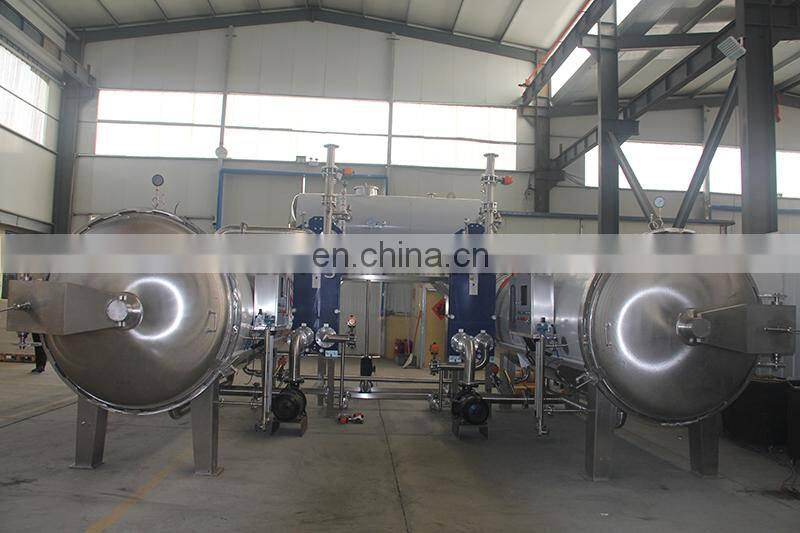

Details Images
Equipment features:
1. Indirect heating and indirect cooling, the cooling water is not in contact with the process water, which avoids secondary
contamination of food and does not need to be used for chemical preparation of water treatment.High temperature short time sterilization.
2. Reduce steam consumption. The sterilizing water after steam atomization is directly mixed in the sterilizing kettle to improve the heating and cooling speed.
3, a small amount of process water quickly cycle, quickly reach the predetermined sterilization temperature.
4, low noise, to create a quiet and comfortable working environment.
5. The kettle is equipped with four movable temperature sensing probes, which can monitor the F value of the food center and the heat distribution in the kettle at any time, so as to know the heat penetration at any time.
6, perfect pressure control, the pressure in the whole production process is constantly adjusted to adapt to the changes in the internal pressure of the product packaging, so that the deformation of the product packaging to reach the minimum, especially suitable for products containing gas packaging.
7, the process water preheating system can ensure that the heat preservation, heat filled products get a continuous heating process.
8. The water used for sterilization shall be softened to avoid the problem of water quality in the process, which will cause no dirt in the outer package.
1. Indirect heating and indirect cooling, the cooling water is not in contact with the process water, which avoids secondary
contamination of food and does not need to be used for chemical preparation of water treatment.High temperature short time sterilization.
2. Reduce steam consumption. The sterilizing water after steam atomization is directly mixed in the sterilizing kettle to improve the heating and cooling speed.
3, a small amount of process water quickly cycle, quickly reach the predetermined sterilization temperature.
4, low noise, to create a quiet and comfortable working environment.
5. The kettle is equipped with four movable temperature sensing probes, which can monitor the F value of the food center and the heat distribution in the kettle at any time, so as to know the heat penetration at any time.
6, perfect pressure control, the pressure in the whole production process is constantly adjusted to adapt to the changes in the internal pressure of the product packaging, so that the deformation of the product packaging to reach the minimum, especially suitable for products containing gas packaging.
7, the process water preheating system can ensure that the heat preservation, heat filled products get a continuous heating process.
8. The water used for sterilization shall be softened to avoid the problem of water quality in the process, which will cause no dirt in the outer package.




A variety of spray and heat transfer methods are available to meet the requirements of different products.
Product Paramenters
Model | volume | power | voltage | Maximum working pressure |
1000 | 2.2m3 | 4kw | 380V/220V | 0.4Mpa |
1200 | 4.58m3 | 5.5kw | 380V/220V | 0.4Mpa |
1300 | 5.3m3 | 5.5kw | 380V/220V | 0.4Mpa |
1500 | 10.05m3 | 15kw | 380V/220V | 0.4Mpa |
Applicable Scope:
Spray sterilization pot is suitable for all kinds of high temperature resistant packaging materials:
1. Plastic containers: PP bottles, HDPE bottles.
2. Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, high temperature cooking bag, etc.
3. Tin cans: aluminum cans and glass bottle products
Spray sterilization pot is suitable for all kinds of high temperature resistant packaging materials:
1. Plastic containers: PP bottles, HDPE bottles.
2. Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, high temperature cooking bag, etc.
3. Tin cans: aluminum cans and glass bottle products
Company Profile
Zhucheng Hengshi Machinery Co., Ltd. is a professional supplier of sterilization equipment for food and beverage processing and pharmaceutical industry.The company is specialized in manufacturing all kinds of sterilization kettle, high temperature cooking pot, sandwich pot, wok and so on. The products are adopted by many food and beverage enterprises at home and abroad. The company has the pressure vessel manufacturing certificate (certificate No. : TS2237F40-2020) and the self-supporting import and export right (registration form No. 03554598).It has formed a network system integrating raw material supply, product development, process design, production and manufacturing, finished product inspection, storage and transportation, and after-sales service.
The company always adheres to the enterprise management philosophy of "high grade, high standard, people-oriented, customer as source, quality service for survival, technology and culture for development".The establishment of a market-oriented strong sales mechanism, the establishment of a sound after-sales service system, to ensure that the global scope of effective and fast service.
The company focuses on the future, constantly create new energy saving, environmental protection, low carbon solutions to help our users win the future full of competitive challenges, but also believe that we will be full of enthusiasm to serve users, pay attention to your needs, exceed your expectations, with our efforts to achieve your brilliant career.



Product packaging



Contact us

FAQ
We always strive to solve problems for customers, improve product quality.
1.What if the machine breaks down within a year?
We have two ways to solve this problem:
1) Telephone guidance to confirm problems.
2) We will shoot a video to show "how to solve a problem".All problems can be solved by video booting.
2. What if the PLC suddenly breaks down?
We use German brand PLC, is a relatively stable brand.If it does crash, we usually:
1) Customers are advised to buy more than one storage device.Computer we also upload the program.
2) In case of failure, replace the new one or the broken one and send it back to us. We will rebuild the system and send it back to you.
3. What is the difference between cooking and autoclaving?
Both words refer to the process of disinfecting a given object.These items could be medical equipment, sealed food containers, or anything else.So there's no difference between these two terms.These are two different ways of saying the same thing.
4. Is it advisable to use evaporators instead of autoclaves in the microbiology laboratory?
The evaporator is a autoclave.The difference here is that our retorter can perform a variety of processes, namely water spraying,water soaking and steam-air, except for saturated steam, with or without horizontal or rotational stirring.
