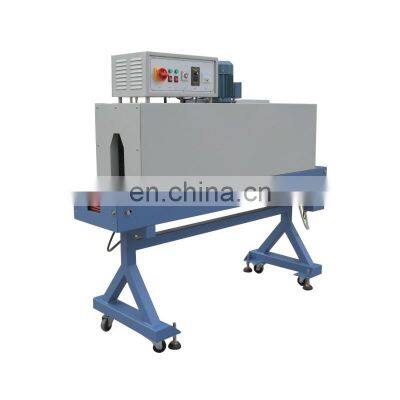

BS-1230 Hualian Conveyor Labeling Capping Cup Bottle Label Tunnel Shrink Wrapping Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
FXJ-5050ZQ Hualian Pneumatic Automatic Auto Flap Fold Mobile Phone Packing Pack Box Milk Case Sealer Carton Sealing Machine
-
DXDF-60AX Hualian Vertical Filling Sachet Plastic Multi-Function Bag Pouch Automatic Sealing Powder Packing Machine
-
DXDZ-600D Hualian Automatic Food Pillow Pack Packaging Horizontal Packing Machine
-
FX-800 Hualian Manual Kraft Paper Gummed Tape Dispenser
-
Hualian FRP-770I Horizontal Ink-jet Printing Print Code Coding Continuous Band Sealer Sealing Machine
-
FR-770II Hualian Automatical Heat Plastic Bag Continuous Mechanical Seal Food Packing Band Sealer Vertical Sealing Machine
Product Description
Product Description
Description:
BS-1230 series label shrink tunnel adopts hot air circulation for shrinking, is mainly used for shrinking labels of bottles, jars
and cups etc, no matter the label is on the body, bottom or cap of the bottle.
Features:
BS-1230 and BS-1540
1. Adopt high power blowing motor and turbine for air blowing, which will not cause label to change position or become deformed.
2. Simple changeover for different kinds of bottles.
3. The heater made of stainless steel has long use life.
4. The shrink temprature can be regulated according to the requirements of package at will,up to 300 degree.
5. Adopt stepless conveying speed regulation controlled by electronic speed governor.
6. Only the cap parts of bottle is heated, so the quality of product inside the bottle will not be affected due to high
temperature.
7. Tunnel can be heated partially according to some special requirement of the products in order to save the energy.
8. The machine can be operated alone or connected with production line.
BS-1230X and BS-1540X
1. Inside the tunnel, two high power blowing motors to ensure enough circulating air.
2. If necessary, rotary device can be added and the blowing air for the tunnel can be strengthened partially.
3. It is equipped with the ground bolts and truckles, so the machine can be moved and fixed freely.
4. Tunnel height is adjustable to be connected with different production lines .
5. Rack of the tunnel can be fixed or removed from the tunnel on the production line.
Application:
BS-1230 series label shrink tunnel is widely used in industries such as foodstuff, beverage, pharmacy, cosmetics and pesticide for
containers with labels like glass bottle, plastic bottle, paper cup etc.
BS-1230 series label shrink tunnel adopts hot air circulation for shrinking, is mainly used for shrinking labels of bottles, jars
and cups etc, no matter the label is on the body, bottom or cap of the bottle.
Features:
BS-1230 and BS-1540
1. Adopt high power blowing motor and turbine for air blowing, which will not cause label to change position or become deformed.
2. Simple changeover for different kinds of bottles.
3. The heater made of stainless steel has long use life.
4. The shrink temprature can be regulated according to the requirements of package at will,up to 300 degree.
5. Adopt stepless conveying speed regulation controlled by electronic speed governor.
6. Only the cap parts of bottle is heated, so the quality of product inside the bottle will not be affected due to high
temperature.
7. Tunnel can be heated partially according to some special requirement of the products in order to save the energy.
8. The machine can be operated alone or connected with production line.
BS-1230X and BS-1540X
1. Inside the tunnel, two high power blowing motors to ensure enough circulating air.
2. If necessary, rotary device can be added and the blowing air for the tunnel can be strengthened partially.
3. It is equipped with the ground bolts and truckles, so the machine can be moved and fixed freely.
4. Tunnel height is adjustable to be connected with different production lines .
5. Rack of the tunnel can be fixed or removed from the tunnel on the production line.
Application:
BS-1230 series label shrink tunnel is widely used in industries such as foodstuff, beverage, pharmacy, cosmetics and pesticide for
containers with labels like glass bottle, plastic bottle, paper cup etc.
Product Paramenters
BS-1230 | BS-1230X | BS-1540 | BS-1540X | ||||
Voltage (V/Hz) | 3 Phase 380/50 220/60 | ||||||
Power (kw) | 15 | ||||||
Max. Packing Size(dia.×H)(mm) | 100*250 | 140*350 | |||||
Packing Speed (pcs/hour) | 8000-12000 | ||||||
Tunnel Size (L×W×H)(mm) | 1500*120*300 | 1600*150*400 | |||||
External Dimensions (L×W×H)(mm) | 1800*600*1665 | 1500*1005*2100 | 1900*600*1665 | 1600*1005*2100 | |||
Net Weight (kg) | 250 | 300 | 300 | 350 | |||
Product packaging
Model | BS-1230 |
Pcs/CTN (pc) | 1 |
Package Type | W/C |
Gr. Wt. (kg) | 271 |
Net. Wt. (kg) | 223 |
Dimensions(cm) | 190*62*164 |
Volume each set (cbm) | 1.932 |
Company Profile
FAQ
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
