Silo Blockage Cleaning System

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

Storage silo cleaning

JH clearing machinery equipment-rotating whip is the most effective silo clearing tool, such as grain, feed, cement, coal, soda ash and other storage industries.
Guangzhou JingHu Mechanical and Electrical Equipment Co.,Ltd. has developed a silo cleaning system. The unique design of the rotating whip allows the equipment to be extended from the manhole at the top of the silo to operate, eliminating the personal safety hazards involved in personnel entering the confined space. Portable clearance equipment helps you safely recover valuable inventory materials, so that you can get more products and storage space and enhance the fluidity in the warehouse.

The rotating whip is driven by hydraulic power and does not require air at all. Moreover, food-grade hydraulic oil can be selected and will not cause oil pollution to materials (grain). Unlike other pneumatic equipment, which has the problems of lack of power and dust generation, the rotating whip is very powerful and has the advantages of light weight, portability, and safety.
Warehouse clearing machines are widely used by various customers all over the world. This clearing equipment helps large and small enterprises to solve difficult industrial cleaning situations.

No matter what kind of commodities you are engaged in, the whip can be your most effective tool.
* Suitable for containers of various specifications
* Restore 100% storage capacity
* Hydraulic drive (no need for compressed air)
* Speed and direction adjustable and reversible rotating cleaning head
* Completely portable and easy to move from warehouse to warehouse, or from factory to factory
* The safest container and silo cleaning solution on the market

When the silo is completely blocked, the rotating whip is used in conjunction with the silo drill.

Why use hydraulic pressure instead of compressed air?
The reasons are as follows:
1. Power:
Hydraulic power has more powerful torque and striking force. It will not stop at a slow speed, and it can be controlled at a
slower speed to maintain full torque and easily knock loose agglomerated materials.
Air is compressible, which depends on the force of high-speed impact, making it difficult to control the cleaning head. If there is not enough air pressure, the whip will not work effectively.
2. Performance:
The hydraulic power rotating whip can be reversed. This is very desirable. By changing the direction of rotation of the whip, the agglomerated materials can be easily knocked down at the corners and the edge of the wall, or when the whip is entangled with the temperature measurement cable in the silo during the work, only The reversal can easily solve the winding problem, which is a function that pneumatic cannot have.
3. Efficiency:
All necessary power sources only need a simple power source. No need to lease or buy an air compressor. There is no high air consumption and no occupation of the factory air system.
The pneumatic whip, expelling a large amount of air into the loose material is easy to produce dust.
4. Durability:
The hydraulic power unit has a whip with a lower wear rate. The aerodynamic device relies on high speed to generate power, which creates greater friction, heat and wear on the whip. The service life of hydraulic is 4 times longer than that of pneumatic.
5. Security:
The hydraulic oil used in hydraulic equipment is food grade. If leakage occurs, no harmful substances will be released.
Air motors require lubrication to operate, so they continuously drain oil during normal operation.

JH clearance equipment is effective for almost any bulk material, including:

Catalyst Coke Pigment
Cement Alcohol protein feed Plastic
Clay Feed Powder
Clinker Fertilizer Salt
Coal Fly Ash Sand
Coarse ore Slaked lime Sawdust
Concentrated materials Gravel Slag
Gravel Gypsum Soda Ash
Minerals Pulp Soy flour
Talc Powder Wheat Sawdust
Wood pulp

Raw coal bin clearing equipment, cement warehouse clearing machinery, clearing robots, grain bin clearing equipment, mechanical clearing, coal bunker clearing machines, clearing machinery

FEATURES AT A GLANCE

What's bin whipper & slio cleanout

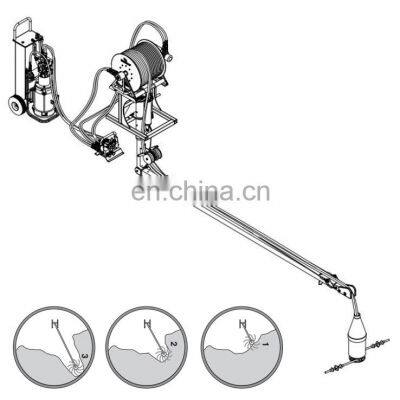

Keeping dry material in silos, storage bins, and hoppers flowing freely is essential for sustaining optimal plant productivity, JH series hydraulic powered whips are the safest, most effective solution for maintaining continuously operating process streams.Able to eliminate build-ups of any dry media including grain, flour, salt, sugar, coal, ores, and cement powder, our whip systems successfully clear build ups, restore maximum flow rates, and recover lost storage capacity. The portable devices are lowered in from the top of the silo and operated remotely — cleared material simply falls to the base of the silo for easy extraction by normal means. Safe to use, there is no need for an operator to enter into a potentially dangerous confined space and there is no risk of vessel damage. Our whip systems feature a boom reach of 10' to 23' and are suitable for use in containers measuring up to 150' in depth — all that's required is an 18" x 18" access way to drop and maneuver the positioningbooms and cutting tools. We supply the units as a complete package including hose reel and mount assembly, power unit, cleaning head, telescoping booms,and a variety of whips and cutting edges to knock down even the toughest materials. Our turnkey systems are cost effective, reliable, and can be used in active process streams and in hazardous and sensitive locations.

Project examples

The hydraulic power rotating whip can be reversed. This is very desirable. By changing the direction of rotation of the whip, the agglomerated materials can be easily knocked down at the corners and the edge of the wall, or when the whip is entangled with the temperature measurement cable in the silo during work, just Reversing can easily solve the winding problem, which is a function that pneumatics cannot have.

SALES AND SERVICE NETWORK

Applications
Cement	Flour	Sugar	Fertilizer	Powder
Gypsum	Maize	Animal Feed	Catalyst	Dust
Grain	Soy bean	Coal	Ore	Aluminum
For more information!! Contact us: WhatsApp:0086-13922323485, email:jinghujidian@163.com
