Multi-motor Cold Rolling Machine With Reasonable Price

Sales Department                                                           Technical Department

Production name:

Multi-motor  cold rolling machine  with Reasonable Price

Brief introduction:

The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour .

Our Advantages:

Best quality

Lowest Price

Low consumption,save energy

Low production costs

Low labor costs

Latest design. New Configuration

Perfect service,timely customer response

No pollution

Main component

1. Rolling mill base

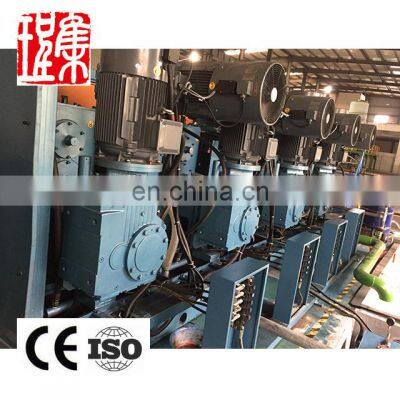

2. 2-roller motive power frame(including reducer, Inverter motor)

3. Pay-off frame

4. coiling take-up system

5. Lubrication system

6.  Emulsion system

7. Electronic control system

8. straightening device

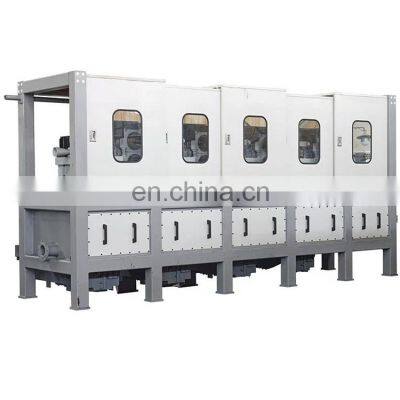

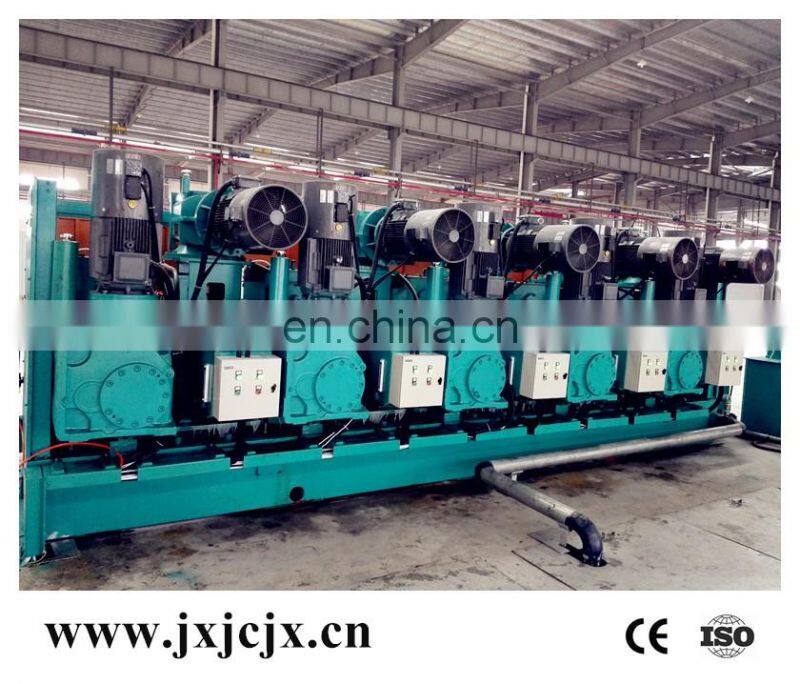

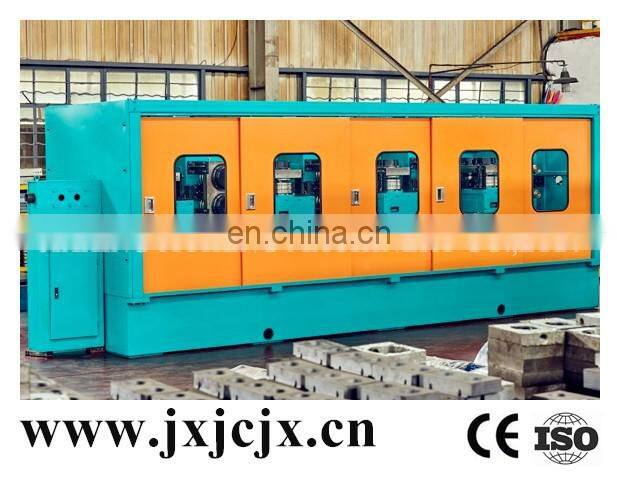

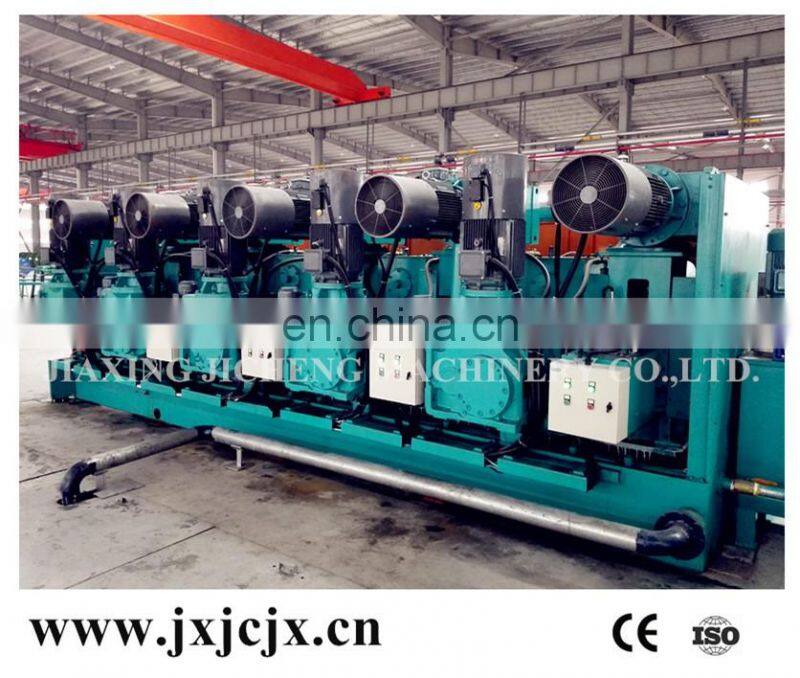

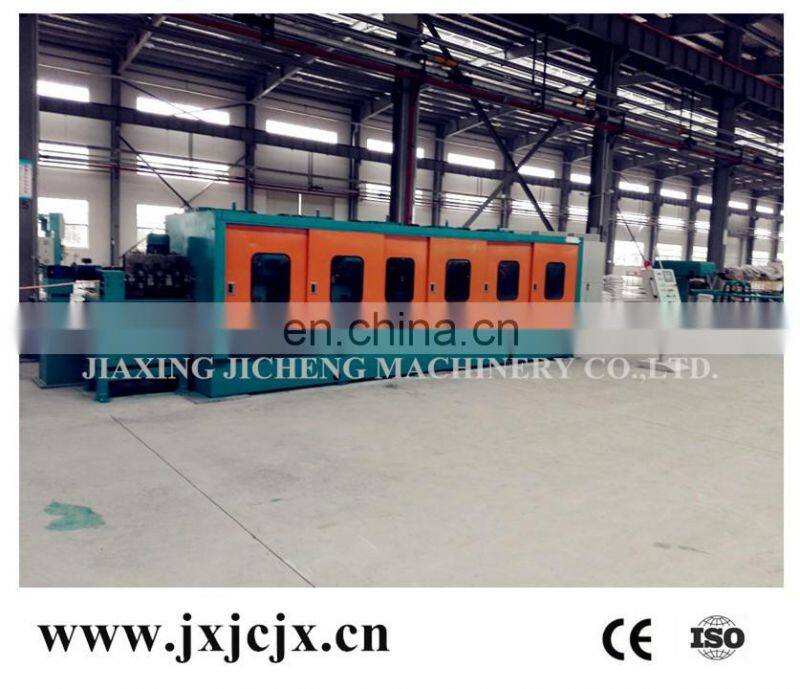

1. main rolling mill

The main rolling mill is the important part of the continuous cold rolling mill . It includes  base, frame, reducer, motor etc.

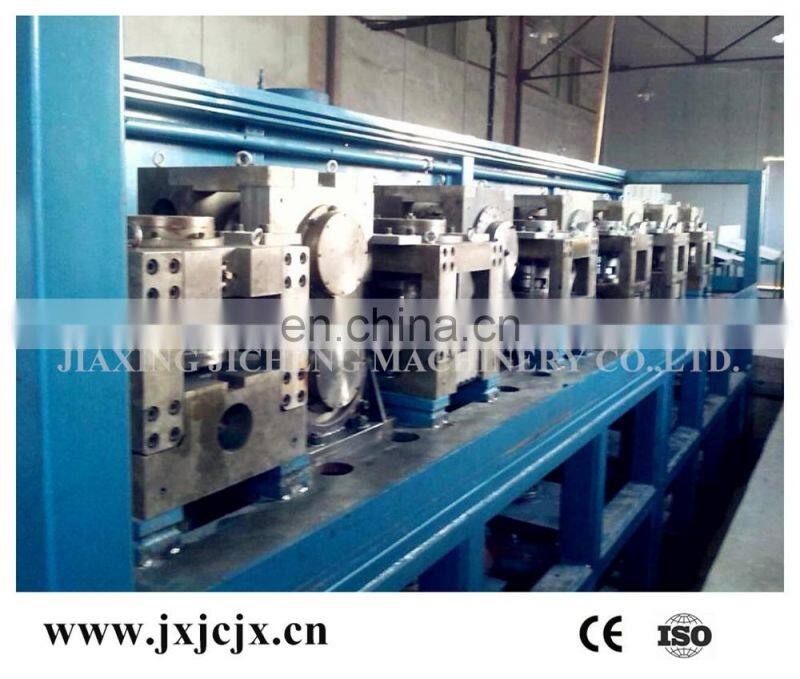

2 .guide system

each pass has entry and exit guide.

2 .guide system

Each pass has entry and exit guide, odd frame of entry guide glides to lead in, and even frame rolls to lead in.

3. pay off

The unit is used to pay off raw material rod into main rolling mechanisms.

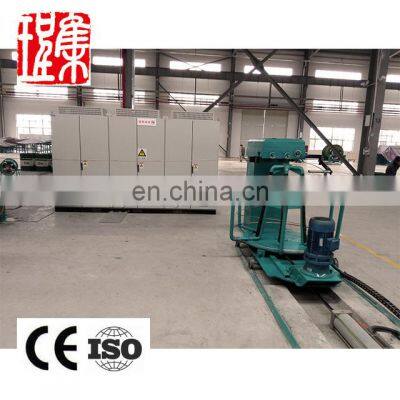

4 .Coiling take-up machine

This machine consists of draught gear and take-up device, meets the characteristics of taking-up enclosure and requirements of constant taking-up speed.

5.Oil lubrication system

Oil flows through pump to filter, passes roll organization and oil tube of the main reduction box ,then flows through branch oil tube, bearing to spray oil lubrication.

6 .Emulsion system

In order to improve the surface quality of the cold rolling copper rod, emulsion cool and lubricate the roller , copper rod and guide device in the rolling process.

7 .electrical system

The electrical system includes the power system and the controlling system.

8. feeding and straightening device

The feeding and straightening device is in front of the main rolling mill, and it is used to straighten the rods so that it can feed the rod easier.

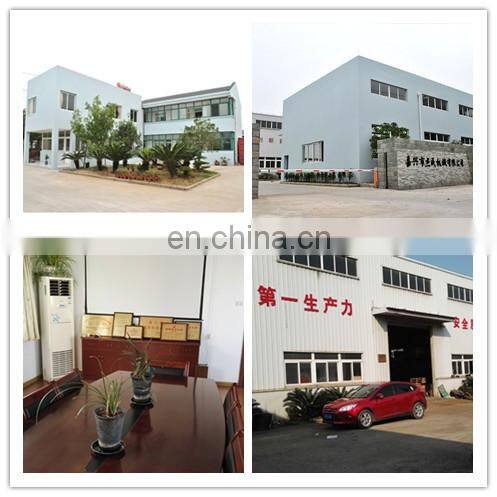

JIAXING JICHENG MACHINERY CO.,LTD
