Home > Products > Dispossable tableware > PLA PBAT Starch Biodegradable Twin Screw Pellets Extruder Machine
PLA PBAT Starch Biodegradable Twin Screw Pellets Extruder Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Wallpaper Notebook Limestone Paper Making Machinery Stone Paper Production Line Caco3 Paper Extruder
-
Twin Screw Extruder GS65 Biodegradable Pla Extruder Pelletizing Line
-
Automatic Biodegradable Eco-Friendly Corn Starch PLA Material Plastic Drink Coffee Tea Cup Forming Thermoforming Making Machine
-
Perfect Plastic Extruder Machine Authoritative Plastic Products Production Line
-
Co-Rotating Parallel Plastic Filler Masterbatch and Compounding Twin Screw Granules Making Extruder Machine
-
Plastic Extruder Machine Quality After-sales Service
Product Description

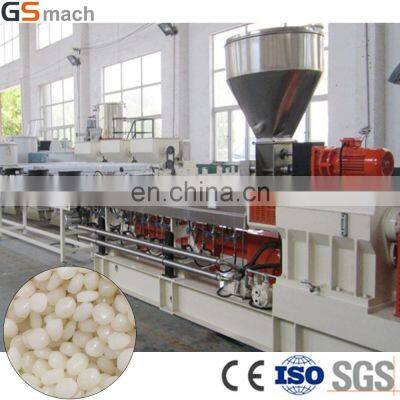

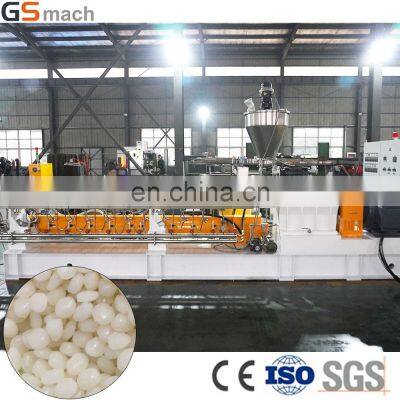

Biodegradable Twin Screw Pellets Extruder Machine
Introduction
biodegradable plastic granules making machine
As we all know, more and more countries are banning the use of plastic products, and the use of biodegradable plastic products will become a popular trend. Our plastic extruder machine is based on biological starch Add PLA/PVA/PBAT to make the granules .
We provide Turn-key Project. we can provide the biodegradable granules making machine with formula ,the granules can be used for blowing bags ,agricultural film ,garbage bags,disposable tableware ,straw and,container .
Product Specification
300 L High speed mixer
-----Effective capacity: 300L,
-----motor Power: 47/67 kw
----- Mixing time per batch:
----- Mixing time per batch:
6-10 min
-----Max output: 250-350 kg/h
-----Max output: 250-350 kg/h
Spiral Load Feeder
-----motor Power: 3 kw
----- load time per batch: 2 min
Twin Screw Extruder
---- Main motor:
----- Power: 75kw
----- Adjust Speed Method: adopting” ABB” AC frequency inventor
----- Gear box:
----- Input rotating speed:1480rpm
----- Output speed: 600rpm
----- Screw:
----- Diameter: φ62.4mm
----- L/D
----- Barrel:
-----Material:45# steel is as body, ∞ inner hole adopts fine double alloy casting bush
----- Power: 75kw
----- Adjust Speed Method: adopting” ABB” AC frequency inventor
----- Gear box:
----- Input rotating speed:1480rpm
----- Output speed: 600rpm
----- Screw:
----- Diameter: φ62.4mm
----- L/D
----- Barrel:
-----Material:45# steel is as body, ∞ inner hole adopts fine double alloy casting bush
Electrical Control System
------AC contactor :SIEMENS brand
------Main motor air switch: LG brand
------Intermediate relay:OMRON brand
------Temperature controller: OMRON brand.
------Other low voltage electrical and button, switch: all use the Delixi
------Electric control cabinet include temperature control system and driving system
Conveyor Belt:
-------Length:18m
-------17 PCS cooling fans.
-------the belt is stainless steel
-------main motor :4kw , inverter control
-------Length:18m
-------17 PCS cooling fans.
-------the belt is stainless steel
-------main motor :4kw , inverter control
Pelletizer :
-------Inverter control
-------Cutter: one set Power:5.5kw
-------Model:LQ-300, Cut number: 25,
-------Maximum traction speed: 85m/min,Inventor control speed.
-------Granules size:φ3×3mm,
-------Inverter control
-------Cutter: one set Power:5.5kw
-------Model:LQ-300, Cut number: 25,
-------Maximum traction speed: 85m/min,Inventor control speed.
-------Granules size:φ3×3mm,
Final production
Certification of machine
My Company
GS-Mach is a professional in plastic, rubber, chemical machinery researcher,designer and manufacturer .
Orientated by the world market,we insist on strengthening our talents, innovating,refining our quality and improving the management, aiming to supply our customer the best products and make the GS-mach a worldwide top machinery manufacturer and supplier.
Our business is consisted of three parts:GS-mach Extrusion,GS-mach Recycle and GS-mach Rubber Tech.
Our business is consisted of three parts:GS-mach Extrusion,GS-mach Recycle and GS-mach Rubber Tech.
1)GS-mach Extrusion:specializing in the researching and manufacturing the machinery for plastic extruding, granulating, extrusion molding and extrusion filament.
2)GS-mach Recycle :Specializing in the researching and manufacturing the machinery for waste plastic,rubber and chemicals recycling.
3)GS-mach Rubber Tech:specializing in the rubber machinery researching and manufacturing.
