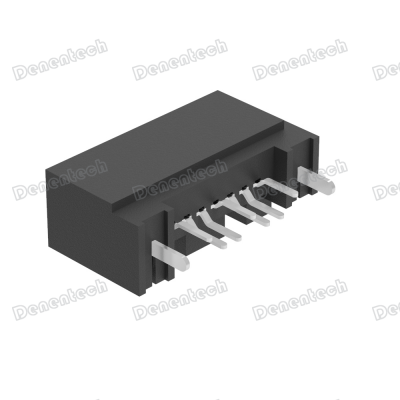

Denentech SATA cable 7P Male Straight DIP SATA connector
US$ 0.06 - 0.09
/ Piece
100 Pieces(Min. Order)
- shenzhen
- T/T
You May Like
-
Dnenlink 2.00mm pitch Sell Well Dual Row H4.0mm PogoPin Connector
-
Dnenlink 3.00mm pitch Triple Row H4.0mm Solder PogoPin Connector
-
Dnenlink 2.54mm pitch Triple Row H2.5mm Straight SMT Pogo Pin connector
-
Dnenlink 2.54mm pitch Single Row H2.5mm Straight DIP PogoPin Connector
-
Dnenlink Machined Pin Female Header 3.00x2.54 Dual Row Straight connector
-
Dnenlink Machined Pin Female Header 3.00x2.54 Single Row Straight Connector
Product Details
| Brand Name | Denentech | Place of Origin | China | |
| Model Number | SM63-07ST0ST610X | Type | Other, SATA | |
| Application | PCB | Gender | Male |
Product Description
| Current Rating | 2 AMP |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | AC100V/0.5mA/60s |
| Insulation Resistance | DC500V/50MΩ |
| Operation Tempererature | -55℃ To +125℃ |
| Contact Material | Phosphor Bronze |
| Contact Plating | Au Or Sn Over Ni |
| Insulator Material | Polyester UL94V-0 |
| Standard | LCP+30%GF |
| Shell Material | Steel or Brass Ni/Sn or Au Plated |
| Revit/Harpoon | Copper Alloy |
| Packing | Tray(Standard) |
