(TYA Series)

Introduction

Widely used in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises.

Purifying hydraulic oil, gear oil, engine oil, compression oil, freezer oil, coolant oil, heat treatment oil, compressor oil, refrigeration oil, HTO heat transfer oil and other industrial oils.

For most economical conditioning and drying of all kinds of contaminated oils.

1.Degassing, dehydration and filtering of oil with variable oil through put in one or several passes

2.Adopt back flushing system, which can clear impurities automatically.

3.Double primary filter structure, large capacity for holding particles, multi-stage filtration system to ensure high filtration precision

4. We uses stainless steel filter element which has a good function in anti-corrosive. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.

6. The unique degas and dewater system: Using the 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gas from the oil quickly by the Multi-level water-oil separation technology.

7.Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

8.High quality and low noise oil pump

9. Hi-automatization operation, convenience, reliable, and safety

Technical Parameters:

Guarantee Value

Working Principle

The oil is conveyed into the degassing tank by means of pressure difference. Oil is indirectly heated by heater, thus avoiding hot spots and over-swinging of the pre-selected operating temperature. At the meantime, the oil pass through the primary filter to remove big and medium size particles. Then oil is conveyed into secondary filter to separate big amount of water and out to degassing system. The special degassing system and geometry with several stages in degassing tank creates a large oil surface and a resulting thin film for most effective maximum degassing. The treatment with a lower end vacuum (-0.06 to -0.095 MPa) guarantees, among others, that no light fractions are evaporated in the edible oil, whereby the required characteristics of the oil are not changed.

The oil level regulation in the degassing tank assures a continuous oil flow-through in the plant, thus resulting in an optimized degassing of the oil.

After degassing and dehydration under vacuum, the oil is conveyed by means of a specially sealed and frequency controlled pump through the fine filter and out of the plant finally.

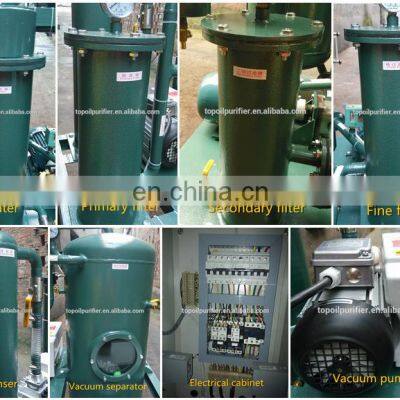

Machine Stucture

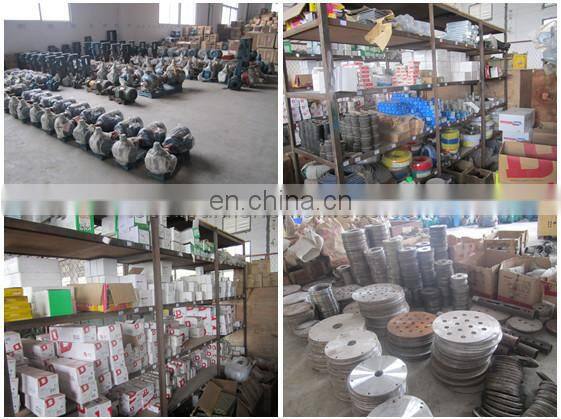

Some of the spare parts. (necessary parts are free.)

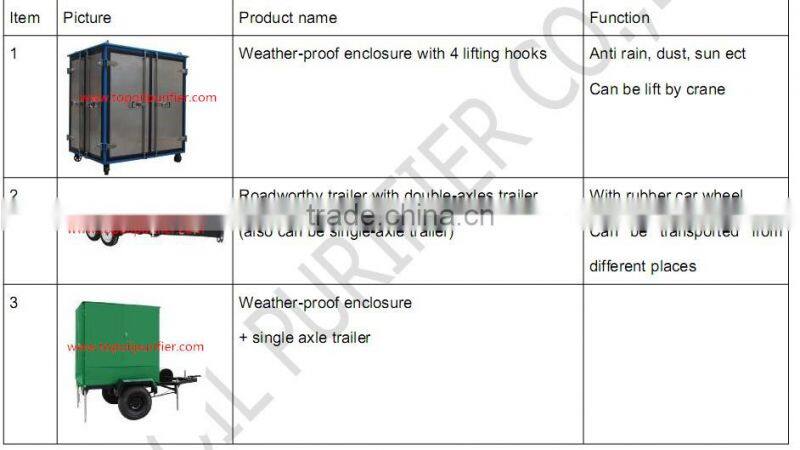

Trailer and enclosure are available for weather proof use.
