COP-S-150 Ready to Ship China Supplier Stainless Steel Used Cooking Oil Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

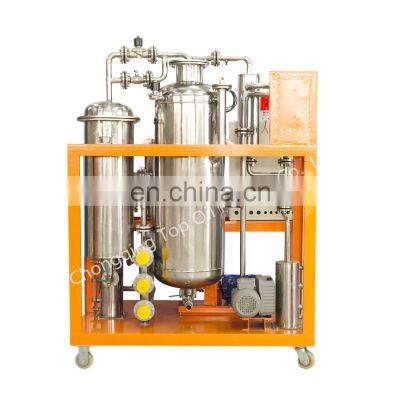

COP-S Series Stainless Steel Vacuum Cooking Oil Purifier

Item			Unit	COP-S-10	COP-S-20	COP-S-30	COP-S-50	COP-S-100	COP-S-150	COP-S-200
Flow rate			L/min	10	20	30	50	100	150	200
Working vacuum			Mpa	-0.06 ~- 0.095
Working pressure			Mpa	≤0.4
Temperature			℃	0~100
Power supply				380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise			dB(A)	≤65~80
Working time			H	≥ 4000
Continuous working time			H	≥150
Working noise			dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80
Electric heating power			kW	36	40	45	72	80	90	120
Total electric power			kW	38	42	47	75	87	101	135
Outlet(inlet) caliber			mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50	Ф50
Weight			kg	350	380	400	450	550	650	700
Size	L	mm	1500	1500	1500	1600	1750	1900	1950
		W	mm	1000	1050	1050	1150	1150	1600	1600
		H	mm	1600	1600	1650	1700	1750	1950	1950
Index after filtering	Moisture content	PPM	≤50
		Gas content	%	0.1
		Impurity size	μm	≤1(Customerizable)
		Demulsification value		(fresh oil)≤15min, (oil in operation)≤30mi
	Cleanness degree		≤4（NAS 1638）

Series COP-S vacuum oil filtration machine is made of 304 stainless steel (food grade). It is designed specially for filtering used cooking oil, virgin coconut oil, dirty vegetable oil, trench oil, swill oil, animal oil etc. It effectively and completely removes particles, water, alcohol etc. from oil. The treated oil is clean and clear withgood smell. COP-S is an ideal purification machine for virgin coconut oil and vegetable oil factories, frying food factories, oil restaurants, waste oil collecting stores etc.

1. Highly effective vacuum dewatering, deodorizing, and impurities removing system. 2. It has the back flush system which can clean the filter elements automatically. 3. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities. 4. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology. 5. Made of food grage stainless steel suitable for final oil edible usage. 6. Hi-automatically operated, convenient, reliable, and safe.

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
