ASTM E2412 Fourier Transform Infrared Spectrum Analyzer FTIR Spectrometer Infrared Spectrometer

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

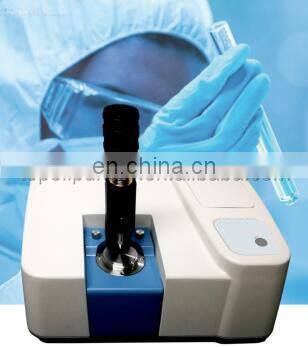

ASTM E2412 Fourier transform infrared spectrum analyzer FTIR spectrometer Infrared Spectrometer

(Model: FTIR-Smart )

FTIR-SMART is a single beam FTIR spectrometer, meeting standard of ASTM E2412, operated by a PC. It is a powerful tool to analyze the sample structure in many fields such as petroleum, chemical engineering and pharmaceutical.

Tehcnical Parameters

1. Spectral range:4000~400cm-1
2. Resolution: 1.0cm-1
3.*SQ ratio: 30000:1 P-P value
4.*Detector: high sensitivity DLATGS detector (imported).
5. Beam splitter: KBr substrate rhodium plating (imported).
6. Scanning speed: microcomputer controls and selects different scanning speeds; the grades are continuously adjustable; and the spectrogram is automatically compared.
7. imported light source: long-life high-intensity air-cooled infrared light source (imported).
8. Interferometer: 30° incident Michelson interferometer, built-in automatic collimation mechanism, airtight structure.
9. Electronic system: 24-bit A/D converter, 500kHz A/D conversion highest USB2.0 communication interface.
10. Closed interferometer and its built-in dryer with excellent moisture resistance, equipped with intelligent humidity automatic reminder device.
11. Built-in advanced dynamic collimation system and dynamic mirror drive system.
12. Power supply: AC220V, 50Hz.
13.Dimensions: 355mmX265mmX 160mm
14.Weight: 9.6Kg

*Operating software:

English spectrum notes, data processing functions (peak note, peak area integral, baseline calibration etc.), spectrum search function, self-diagnosis function, spectrum auto-compare function (input into the main device to realize automatic comparison function) no need to manually compare to reduce the accident caused by error, standard file format, basic infrared analysis function, QC comparison function, point smoothing function, y-axis normalization function, self-owned spectrum group saving function (can self-build standard spectral library)

Related Equipment

We also have many other oil testers, and we manufacture oil purifier machines too. If you need any other related equipment, please tell me to quote them together. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.

Packing&Shipping

Packing: standard export wooden case per set.
Delivery method: testing equipment are usually delivered by express or air, but other method is available if necessary.

Company Introduction

Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We have departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, excellent performance and lone service life.

Certifications

FAQ

1. What is the mini order quantity? MOQ: generally 1 unit/piece/set

2. What payment methods are supported? Payment method: By T/T, L/C, Alibaba Trade Assurance etc.

3. What are the available delivery methods? Our port location: Chongqing, Shanghai or other main port of China Delivering to: Worldwide Delivering method: by sea, by air, by truck, by express, combined transportation 4. How long is the product date of delivery probably? Delivery date differs with product type, order quantity, special requirement etc. Usually this testing equipment delivery time is around 5~10 days. Some products have stock, contact us anytime to get more information. 5. How long is the warranty period? We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system. 6. How is the technical services on the product? Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.

If you are interested in this machine or other related equipment, welcome to contact me for more information. You can send me inquiry here or contact me at +8613983391036 (Mob/Whats App) or abby( at ). I will response the soonest within 24 hours.
