ASTM D1500 Color Meter Chongqing Color Meter For Liquid Color Separation Machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

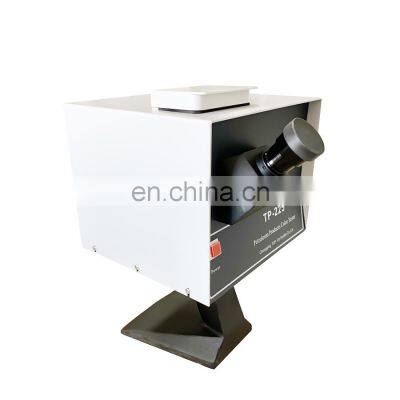

Petroleum Products Chroma Tester Model TP-225

Petroleum products chroma tester is designed and manufactured under the requirements of standard SH/T0168 in“Determination of chroma in petroleum products”. Applicable to the determination of the color in various lubricants, kerosene, diesel and other petroleum products. The tester indicial colors and the GB/T6540 provisions colors represent a correspondence.

1.Petroleum products Chroma tester consist of standard color wheel, an observation optical lens, light, colorimetric tube. 2. Taking the inside frosted light bulbs as standard light source, which using 220V / 100W, the color temperature is 2750 ± 50K. After Source light color filter through the milky glass and sunlight filter glass, the spectral characteristics of the resulting standard light similar to North Light. 3. The light of petroleum products Chroma tester through the filter, then form two parallel beams, their size and shape are exactly the same, uniformly irradiated on the sample of color glass in standard color wheel and sample colorimetric tube, and through the prism and lens reflex, then enter into the eyepiece. 4. There are 26 pieces of Φ14 light holes, of which 25 were 1-25 sequence containing color number standard color glass sheet, the twenty-sixth is blank, the color wheel on the right side hole, so that the operator selects the correct standard corresponding color when toggle the standard color wheel, and compares the standard color in standard color wheel and color of samples in color tube. 5. Colorimetric tube is a flat glass tube, which inner diameter Φ32 mm, height of 120 to 130 mm of colorless. Colorimetric tube is put into the cavity from a small cover on top of the instrument. 6. Observed eyepiece consist of optical lenses, you can observe standard color glass samples in the eyepiece. Both the two colors each occupied semicircular area, which left for the sample color, the right to a standard color on the color wheel. Optical eyepieces have focusing and light adjustment capability, also easy to use.

1.1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800

8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.

Welcome to visit our website, welcome your inquiry.

Jennifer (Miss) | Sales Manager
CHONGQING TOP OIL PURIFIER CO.,LTD
Manufacture oil purifiers and supply test equipment.
Add: No. 1, Jianlong N. Rd., Jiulongpo District, Chongqing, China
E: sales9@topoilpurifier.com
Cell: 0086-17338389692 (Whatsapp/Wechat) | Skype: topoilpurifier
Tel: 0086-23-88901306 | Fax: 0086-23-88901306
;
