Onsite Transformer oil regeneration system/waste transformer oil recycling machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

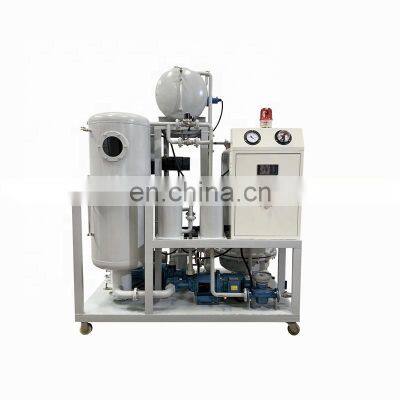

Onsite Transformer oil regeneration system/waste transformer oil recycling machine

Application:

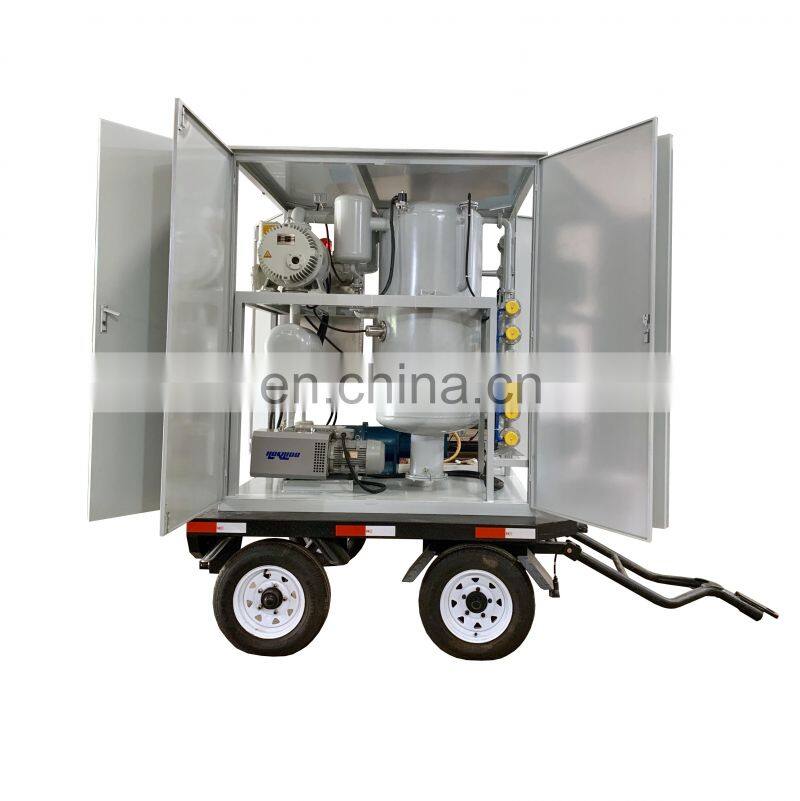

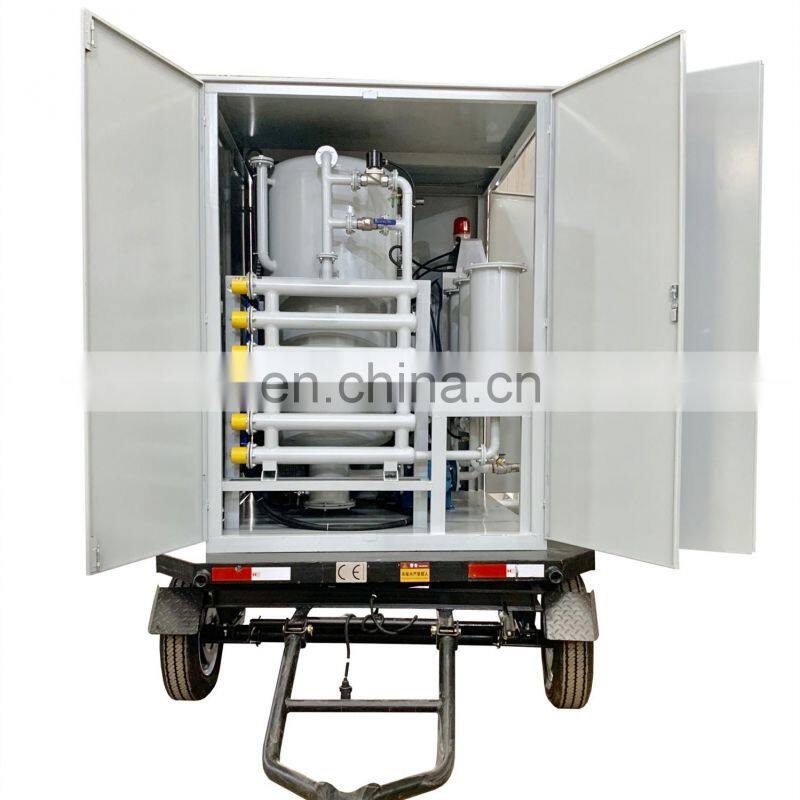

ZYD-I machine is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.

Features:

1. For special application, the operation can be controlled by P.L.C (Programmable Logic Controller) (ZYD-I-A Series).

2. Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly

3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.

4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.

5. Can be applied for vacuum oiling and drying power transmission equipment.

6. Special additives for depolarization can recover oil color of aged transformer oil to new.

Advantages:

Compared with single vacuum oil purifier, the machine has faster, more complete dehydration, degassing, and impurity removal, and the oil has a higher maximum pressure resistance value. This machine has a bridge vacuum connection system and can be used as a filter oil machine. It can also be used as an independent vacuum source for vacuum injection of electrical insulation equipment.

Technical parameter

item		Unit	ZYD-I-30	ZYD-I-50	ZYD-I-100	ZYD-I-150	ZYD-I-200	ZYD-I-250	ZYD-I-300
Flow rate		L/h	1800	3000	6000	9000	12000	15000	18000
Vacuum degree		MPa	-0.08 ~ -0.099
Vacuum pressure		MPa	≤0.3
Temperature range		℃	20 ~ 80
Power supply			Three Phase 50Hz,380V (or as needed)
Working noise		dB(A)	70	70	70	75	75	75	75
Heating power		KW	28	30	45	60	75	90	120
Total power		KW	35.5	37.5	52.5	71.4	86.5	102.5	135
Oil outlet/inlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
weight		Kg	600	800	1050	1400	1800	2000	2200
size	L	mm	1050	1100	1200	1450	1600	1800	1900
	W	mm	750	800	950	950	1100	1200	1200
	H	mm	1350	1400	1500	1650	1800	1900	1900

Item	Unit	Index after filtering
Breakdown voltage	kV	≥75
Moisture content	PPM	≤3
Gas content	%	≤0.1
Impurity size	micron	≤0.5 (no free carbon)

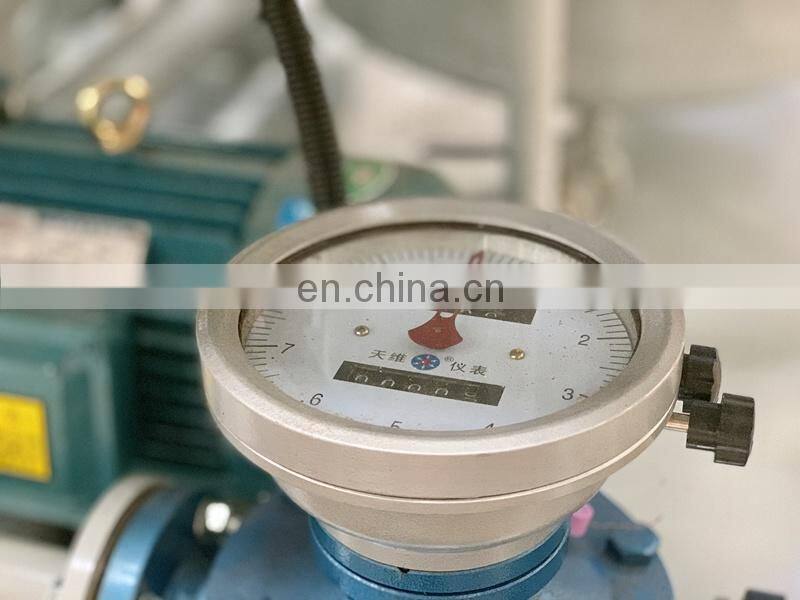

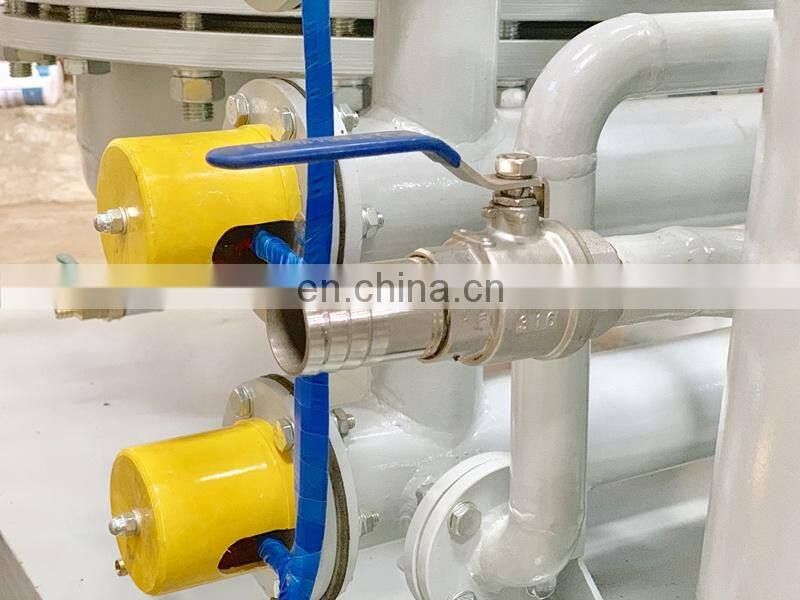

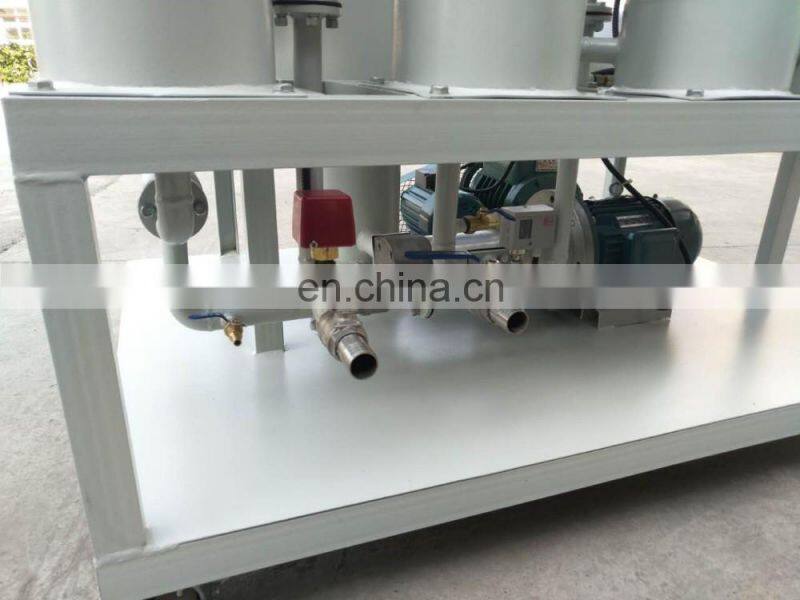

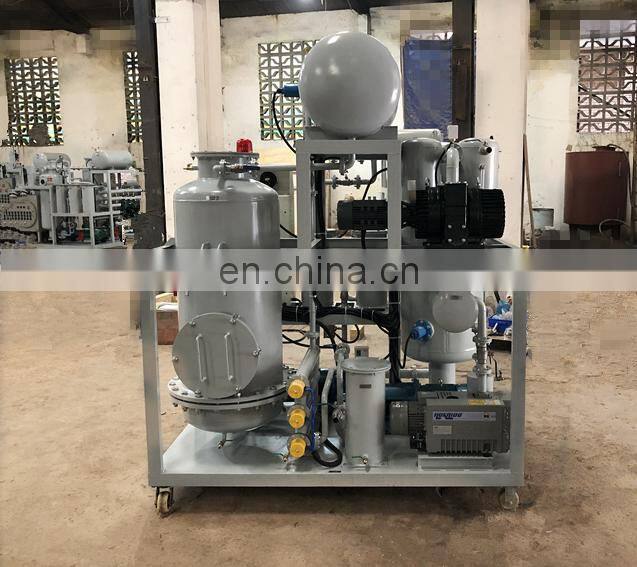

Detailed Images

Packing & Delivery

Certificates

Our Company

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
