Home > Products > Black Oil Decoloring and Purification Machine > Stainless Steel Vacuum Cooking Oil Waste Oil Treatment Plant

Stainless Steel Vacuum Cooking Oil Waste Oil Treatment Plant

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Stainless Steel Vacuum Cooking Oil Waste Oil Treatment Plant

Parameters

Unit

TYS-1

TYS-2

TYS-3

TYS-5

TYS-10

TYS-15

TYS-20

Treatment Capacity

Ton/day(8 hr))

Power Supply

380V/50HZ/3Phase (Customizable)

Working Noise

dB(A)

≤65

Working Vacuum

MPa

-0.06～-0.095

Working Pressure

MPa

≤0.5

Working Temperature

℃

30～90

Inlet (outlet) caliber

Ф25

Ф32

Ф42

Ф50

Weight

1500

2000

2500

3000

3500

4000

4500

Size

Length

1800

1850

1900

1950

2000

2200

2300

Width

1300

1350

1400

1450

1500

1600

Height

2300

2400

2500

2700

After treated

Color

≤ 1-3

Impurity

μm

≤1(Customizable)

Water

ppm

≤100

Demulsification

min

≤15(GB/F 7305)

Cleanliness

grade

≤6(NAS1638)

TYS series Food Grade Oil Purification and Decoloration Machine is specially designed to clean new and used cooking oil, coconut oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc., It can effectively and completely remove water, particles, acid and alcohol etc. Furthermore, it can also remove odor and recover the oil color from black to original yellow. This is combined with our special brand food grade earth, which is pure natural and has high efficiency. The treated oil is clean, limpidity, and good smell.

TYS is a good purification machine for biodiesel production factory, soap factory, Fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store etc., According to the needs, the material of the machine can be made in carbon steel or stainless steel.

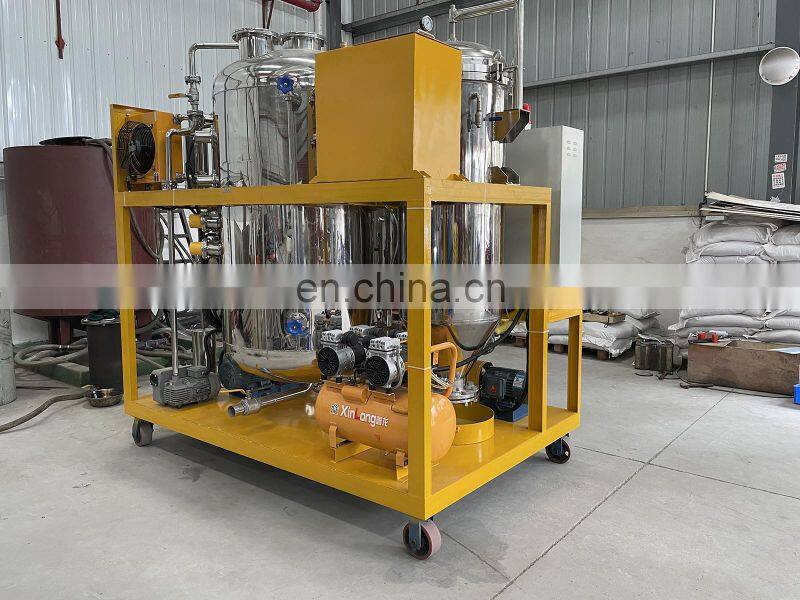

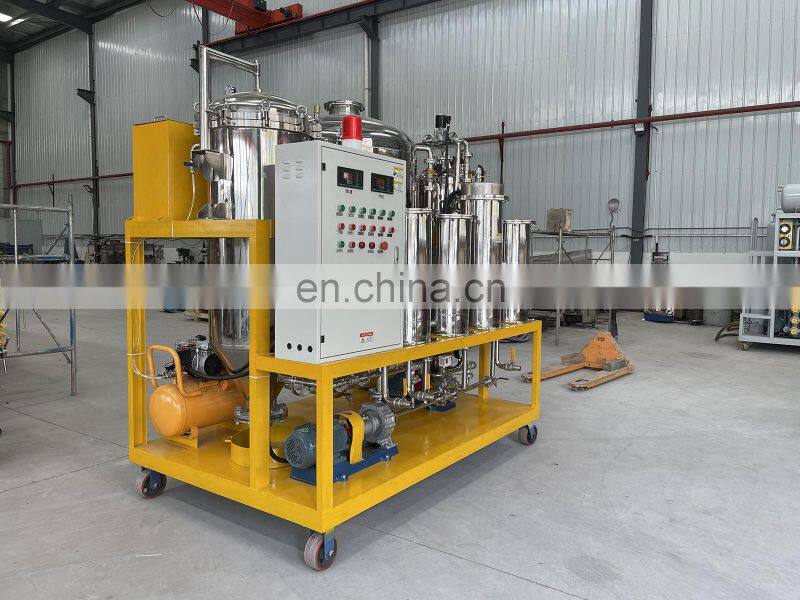

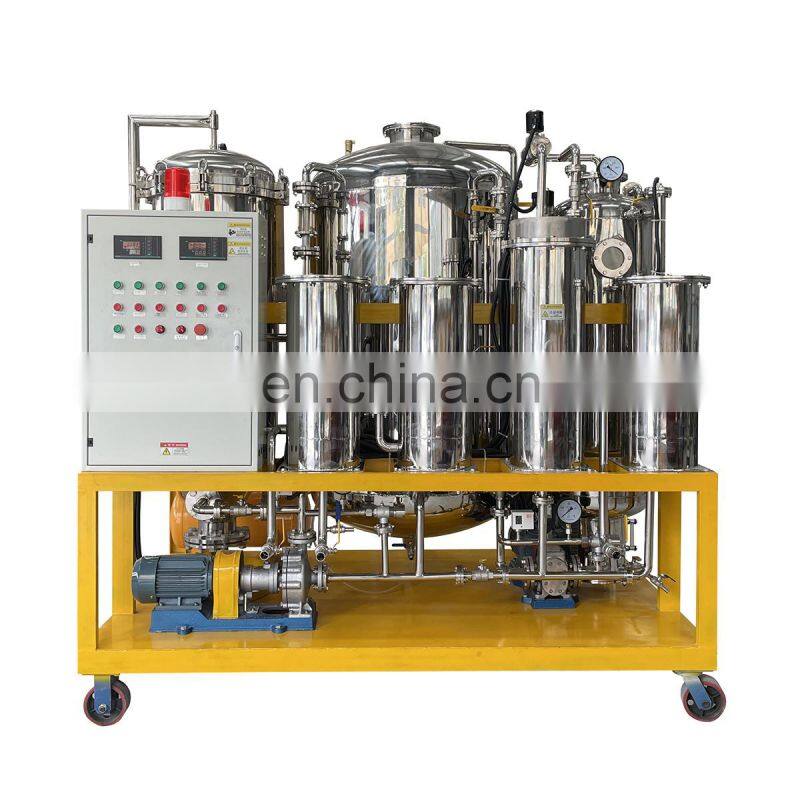

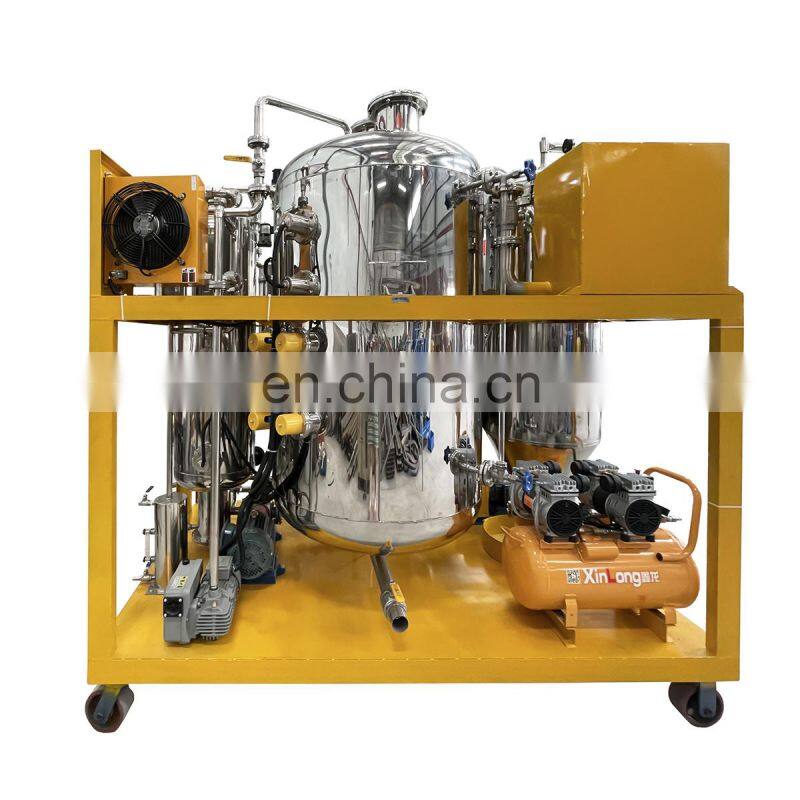

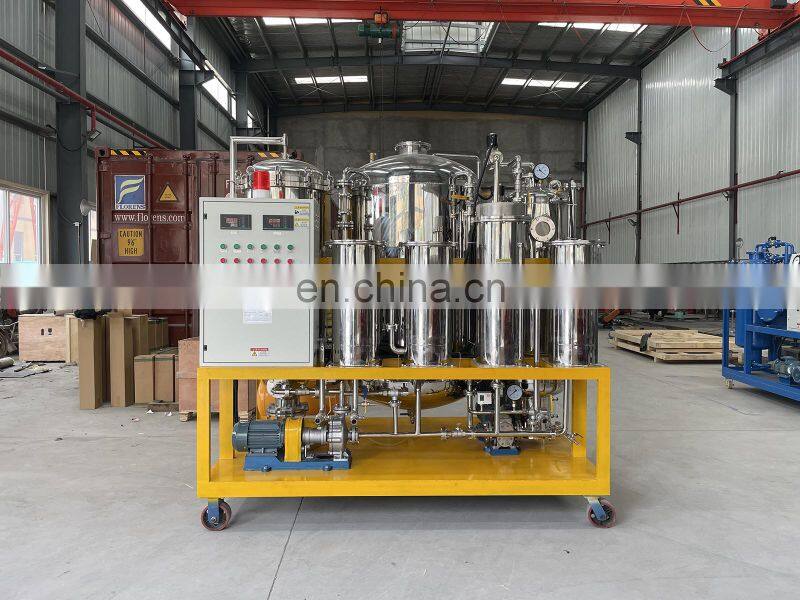

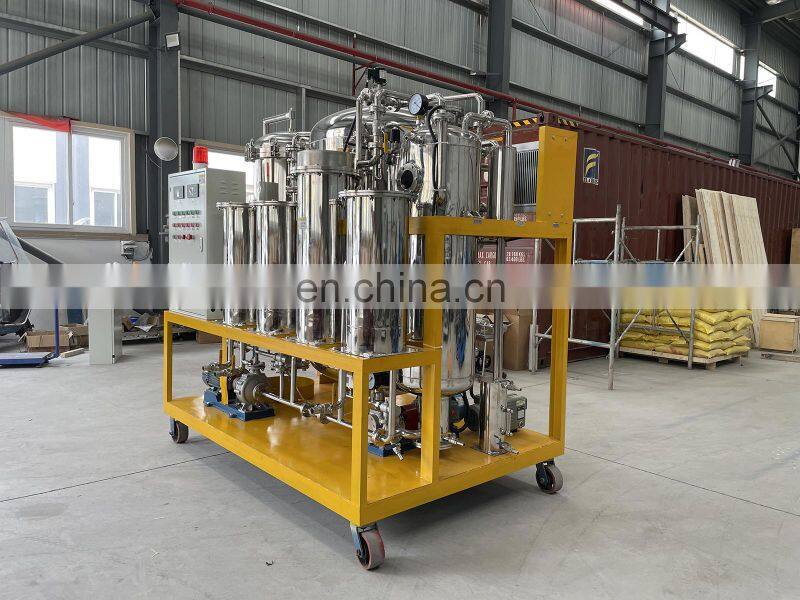

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.

Welcome to visit our website, welcome your inquiry.
