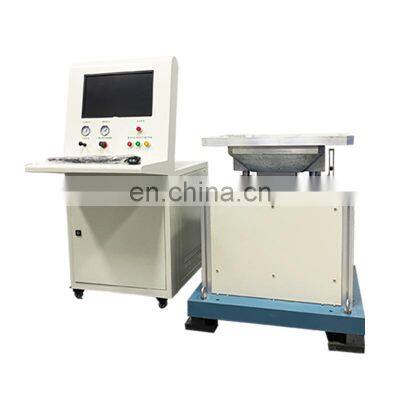

Lithium battery pneumatic impact testing machine customization
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
IEC 62619 dynamic shaker electromagnetic high-frequency vibration tester made in China
-
Electro-dynamic displacement air cooling sine and random sine vibration shaker systems
-
Economy electromagnetic triaxial sine vibration shock testing system for battery
-
Vertical horizontal vibration testing machine 60810 standard for radiators sieve test
-
Two directions paper box radiator professional vertical vibration testing machine
-
computer controlled mechanical electromagnetic shaker table vibration testing machine 250kg
Product Description
Purpose
This equipment is used for collision test of various electrical and electronic products with a mass of less than 50kg.
Assess the functional adaptability and structural integrity of the test product in a collision environment.
This equipment complies with standards
GB 2423.6 "Basic Environmental Test Regulations for Electrical and Electronic Products Ea: Collision Test Method" MIL-
STD20ZF, MIL-STD810B, GJB150-86, GJB360-87 and IEC68-2-27 "Test Ea: Impact" have the requirements for collision test.
Rated load (kg) | 50 (including fixtures, test pieces, sensors, etc.) |
Shock pulse waveform | Half sine wave |
Drive way | Fully automatic pneumatic drive |
Peak acceleration | 100～1000m/s2 |
Pulse duration | 30～3ms |
Table size (length X width) | 700mmX500mm |
Maximum collision frequency (times/min) | 80 |
Total weight of equipment (kg) | About 1200 |
Environmental conditions | Temperature (℃: 0～40 |
Humidity (25℃):＜85% | |
Stable air source (MPa): ≤0.8 (user-provided industrial air source or air compressor, Air compressor 1.25m3 /min, the flow rate of the air compressor will be The maximum frequency that affects the device) |
Special attention items:
1. This test equipment is a test system with more complete functions, more advanced performance, and more complicated operation. The indoor environment should be tidy and clean, and there should be no dust particles and irritating and corrosive gases around the equipment, and the ventilation should be good; the equipment should be equipped with an independent circuit breaker and well grounded.
2. The pneumatic impact impact test bench is placed on the flat ground on the first floor. A 700X850 rubber sheet with a thickness of 10mm should be placed on the bottom of the equipment to reduce the vibration of the equipment on the ground during operation. The equipment may move by itself during long-term collisions. If necessary, use anchor screws to fix the equipment (an anchor screw hole is designed). The equipment covers an area of ??about 1.5mX2.5m, and the main body of the equipment is AC220V, 1KW. The gas source is self-provided. It is best to use a 0.8MPa industrial gas source. When using an air compressor, it must be able to ensure that the output pressure of the air compressor remains stable. The pressure and flow rate of the air compressor will affect the maximum frequency of the collision table and the repeatability of the parameters and operation. The interface of the air source of the equipment is a φ10 PU pipe.
3. The equipment will have a strong impact on the ground and cause vibration. If there is an event request that is sensitive to the vibration environment near the equipment, a reasonable placement location should be considered
Packing & Delivery
Click here for more similar products
Company Profile
Click here for more technical support
FAQ
Why choose us?
1. About voltage
Intimately serve plugs in different countries, manually change the voltage from 110V to 220V, and insurance indicator light.
2. Excellent after-sales service:
12 months warranty. In the process of using your machine, if you have any questions, you can contact us at any time, we will give you professional and timely technical guidance, and solve the problem for you through video, telephone and other methods.
3. About our company
We are a professional manufacturer of R&D and production of environmental, mechanics and vibration laboratory instruments. We support factory inspections. We have ISO certification, CE certification and a number of patent certificates to escort export to your country.
