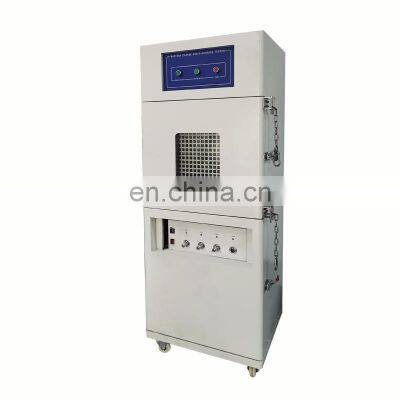

Laboratory battery charge and discharge tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Laboratory Temperature Control Battery Short Circuit Test Chamber
-
hongjin programmable low pressure battery explosion proof test chamber
-
Battery Dual Explosion-proof Testing Machine
-
Professional stainless steel ball weight impact testing machine
-
Battery explode-proof Thermal Abuse Test Chamber for IEC62133 india market
-
Battery explode-proof Thermal Abuse Test Chamber for IEC62133
Product Description
PRODUCT SPECIFICATIONS
Main functions of battery charge and discharge tester:
1. It has the function of constant current discharge of the battery pack. Constant current discharge current: 0-30A continuously adjustable, which can accurately measure the capacity of the 220V battery pack of the electric power supply.
2. With the intelligent charging function of the battery pack. Charging current: 0-30A continuously adjustable, which can meet the charging and maintenance of battery pack.
3. With online monitoring function and fast capacity analysis function. Real-time online monitoring and display of all test data: current, battery pack voltage, cell voltage, discharge time, capacity; at the end of the check discharge test, the remaining capacity of each cell can be quickly analyzed.
4. With activation function: the number of charge and discharge cycles can be set to activate the battery pack and effectively increase the monomer capacity.
5. With cell voltage detection function, cell voltage range: 1-16V. Meet 2V, 6V, 12V monomer monitoring.
6. It has a full deep discharge function: it can meet the ten-hour continuous discharge test, accurately measure the battery capacity, and automatically record the test data.
8. Safety relay device: The safety relay is controlled by the local microcomputer, and can be completely isolated from the battery when there is no discharge or alarm.
FEATURES AT A GLANCE
Mirror surface stainless steel material, with explosion-proof function inside
Glass mesh explosion-proof door to prevent battery chips from popping up during the test
Test hole for power-on test
Connect the battery wire to charge and discharge the internal battery
Equipment Specifications | 5V/10A |
Device channel number | 8 |
Channel control mode | Independent control for each channel, current and voltage four-wire system collection |
Channel characteristics | Constant current source and constant voltage source adopt double closed loop structure |
Input impedance | ≥1MΩ |
