JBS-300B Semi-automatic Impact Tester

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

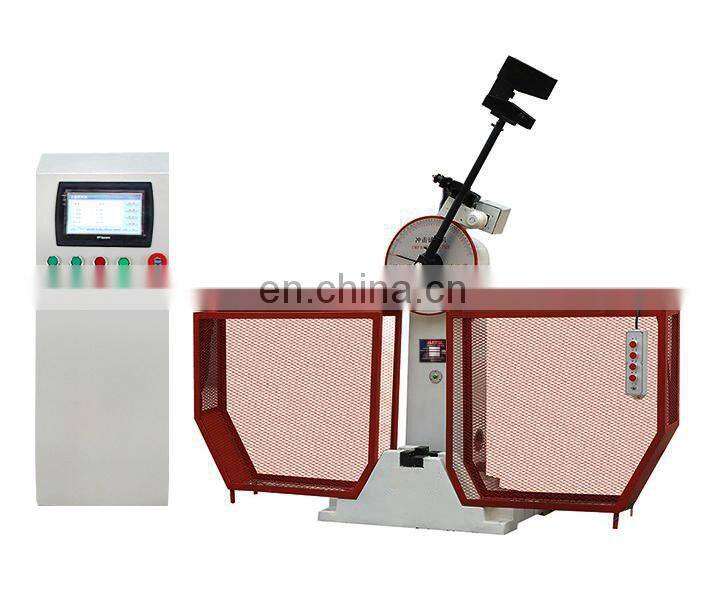

JBS-300B Semi-automatic Impact Testing Machine

LED Touch Screen Display Impact Tester

Feature:
1. Microcomputer control, electric rising pendulum, impact, results are measured calculated by microcomputers and displayed digitally and printed out; having high operation efficiently, high testing accuracy. the energy which is remained after the specimen is impacted broken can automatically rise the pendulum for the next testing, simple operate and has high working efficient, the materials impact absorbed energy, impact elasticity and pre-rising angle of pendulum and average value of test can be calculated and displayed, The test data and average value of the time can be printed
2. The principle machine of the testing machine has single column structure,Cantilever type pendulum hanging mode; the pendulum body is U-shaped.
3. The impact cutter is installed and fixed by screws and is convenient and easy to replaced.
4. The specimen is supported via simply by supported beam
5. Safety guard pin is arranged on the principle machine which is also provided with safety guard net.
6. The testing machine is controlled in a semi-automatic way, electric control is realized for pendulum rising、pendulum hanging、impacting and pendulum placing, The energy which is remained after the specimen is broken can automatically rise the pendulum for the next testing, thus, the testing machine is suitable to be used in laboratories which make consecutive impact tests or the metallurgy and machine manufacturing sectors which are involved with a large of impact tests.

Model	JBS-300B	JBS-450B	JBS-500B	JBS-600B
Impact energy	150J/300J	450J	250J/500J	300J/600J
Control type	Electric	Electric	Electric	Electric
The distance between the pendulum shaft and impact point	750mm	750mm	800mm	800mm
Impact speed	5.2m/s	5.4 m/s	5.4 m/s	5.4 m/s
Display type	Digital Readout
Pre-rising angle of pendulum	150°
Specimen bearer span	40+0.2mm
Round angle of the jaw	R1-1.5mm
Round angle of impact cutting edge	R2-2.5mm、R8mm
Accuracy of angle	10×10×55mm
Specimen box capacity	Manual type
Machine size	2200×600×1400mm
Machine weight	450Kg / 550Kg
Power	50Hz 380V 180W

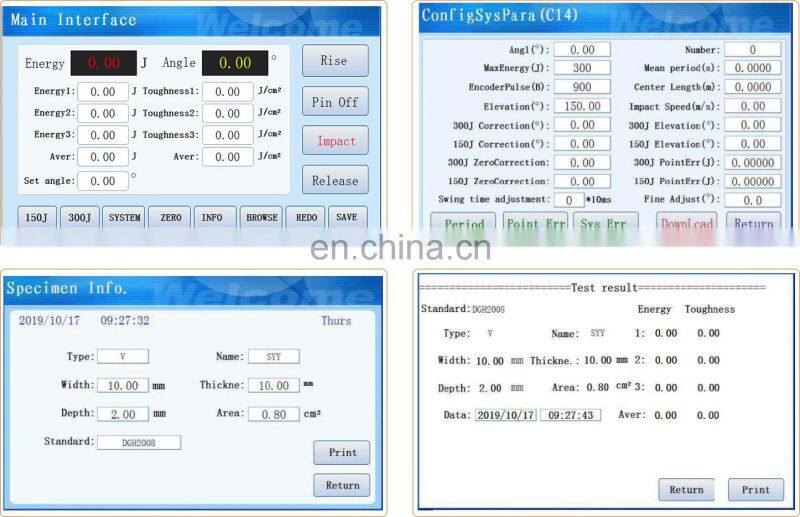

Operation System User Interface

Detailed Images

Our Factory

Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
