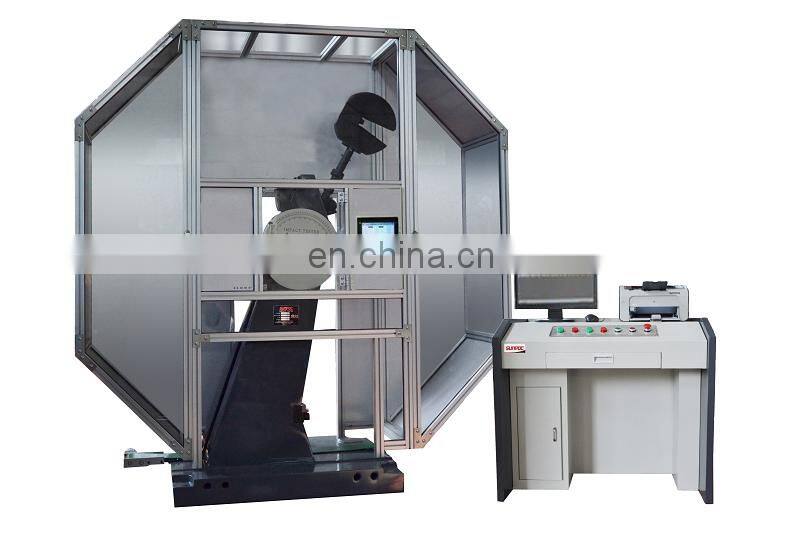

JBW-300C Semi-automatic Impact Tester

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

JBW-C Series Semi-automatic Impact Testing Machine JBW-300C Impact Tester

JBW-C series is PC Microcomputer control, electric pendulum rising, impact; the results are measured, calculated by microcomputers and displayed digitally and can be printed out; having high operation efficiency and high testing accuracy; the energy which is remained after the specimen is impacted broken can automatically rise the pendulum for the next testing; better used in laboratories which make consecutive impact tests or the metallurgy and machine manufacturing sectors which are involved with a large amount of impact tests. the material impact absorbed energy, impact elasticity, pendulum rising angle and average value of tests can be calculated and digitally displayed. The test data and average value of tests of the time can be printed out. via simply by supported beam,the pendulum shaft of hanging pendulum position ,two ends using axletree support,pendulum hang the middyway position of the pendulum shaft, support column front and back symmetry,It has many characteristics such as good stability,great rigidity,simply structure,it doesn’t quiver when hanging pendulum to do impacting test.

Test Standard:
GB/T 2611-2007, JB/T 7406.1-1994, GB/T 3808-2010GB/T 229-2007,
JJG 145-2007, GB/T 18658-2002, JB/T 6147-2007.
ISO 148:1998《Metallic materials-Charpy pendulum impact test》
ASTM E23-07a《Standard Test Methods for Notched Bar Impact Testing of Metallic Materials》

Model	JBW-300C	JBW-450C	JBW-600C	JBW-750C
Model		JBS-300C	JBS-450C	JBS-600C	JBS-750C
Impact Energy	300J	450J	600J	750J
Scale Range	0-300J	0-450J	0-600J	0-750J
Test range	10-90%FS	10-90%FS	10-90%FS	10-90%FS
resolution	2J	3J	4J	5J
Distance between Axis of Pendulum Shaft and Striking Center	750mm	750mm	750mm	750mm
Maximal Impact Speed	5.2m/s	5.2m/s	5.2m/s	5.2m/s
Included Angle of Impact Blade	30°±1°
Pre-raising Angle of the Pendulum Hammer	150°, Resolution 0.1°
Span of Test Sample Support	40 +0.2mm
Radius of Circular Arc of Sample Support	R1: 0-1.5mm
Radius of Circular Arc of Impact Blade	R2: 0--2.5mm, R8: 8mm±0.05mm
Angle of Impact Cutter	150°
Specification of Test Sample	10(7.5, 5, 2.5)×10×55 mm
Precision of Force Transducer	≤±1%FS
Take part	Manual by people
Impact test POWER	AC 380V 50Hz

Detailed Images

Our Factory

Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
