Product Description
Product Description

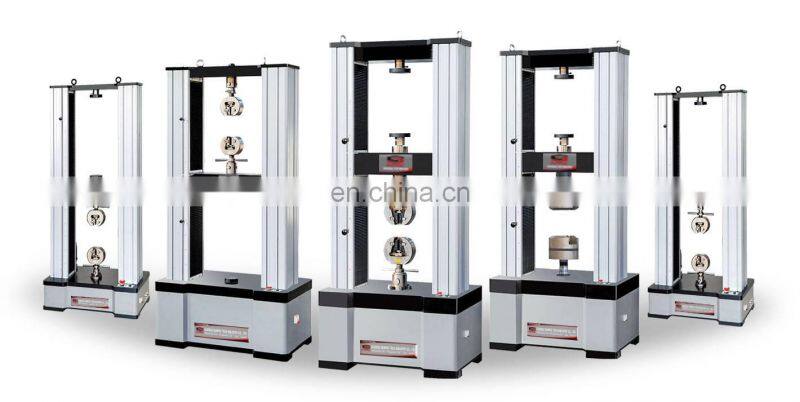

WDW-D Series Electronic Universal Testing Machine (Single Column)
Features:
Using direct current Servo Motor as a power source, this testing machine adopts the chip integrated advanced technology, professional design to enlarge the data acquisition and control systems, test power amplification, A/D conversion process of implementation of the dual control and display of all digital adjustment. The machine can be of various metals, non-metallic and composite mechanical properties of materials testing and analysis, widely used in aerospace, petrochemical, machinery manufacturing, electric wires, cables, textiles, fibers, plastics, rubber, ceramics, food, medicine packaging, plastic pipes, plastic doors and windows, geotextile fabric, film, wood, paper, metal materials and manufacturing. According to GB, JIS, ASTM, DIN, ISO standards, this machine can automatically test the greatest value, the value of fracture strength, yield strength, upper and lower yield strength, tensile strength, compressive strength, fracture elongation, tensile elastic modulus the amount of bending modulus of elasticity, etc testing data.
Stop automatically: after moving beam stop automatically as the specimens broken;
Demarcate automatically：the system can realize the demarcate of indication accuracy;
Process realize: testing progress, measurement display etc as per SCM;
Limit protection: have progress control and machinery protection;
Overload protection: stop automatically when 3%-5% of grads max exceed.

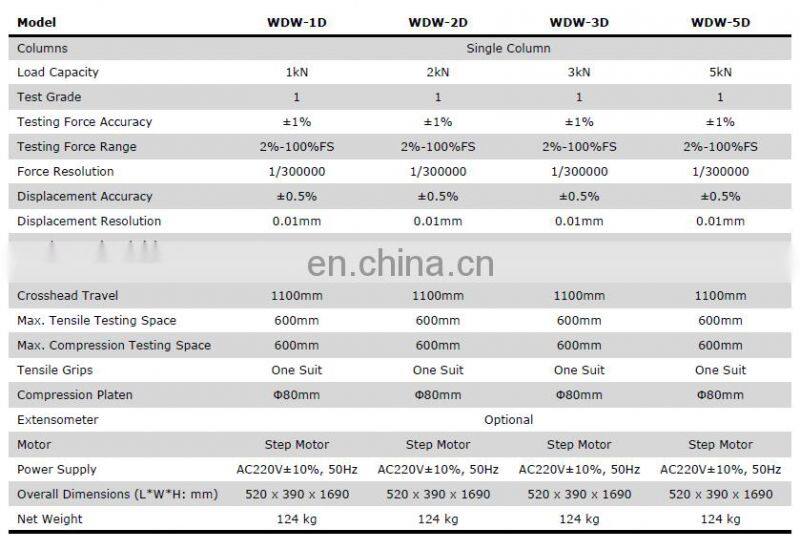

WDW-D-HS SPECIFICATIONS | ||||||
Main Features
Microcomputer closed-loop control, whole digit amplification and collection, stable display, high accuracy and convenient usage. The principle machine adopts imported servo motor and servo speed control system as well as ball screw and is characterized in stable transmission, low noise, high speed and accuracy, wide speed regulation range and long service life; microcomputer is used to automatically control the testing process, the test results are automatically analyzed and processed, flexible and variable control modes are provided. The test software is upgraded and renewed free of charge. The test forces, peak value, displacement, speed, test condition and test curve are simultaneously displayed; the functions, such as position limiting, overload auto-protection and auto-stop upon specimen fracture are provided.
Certifications

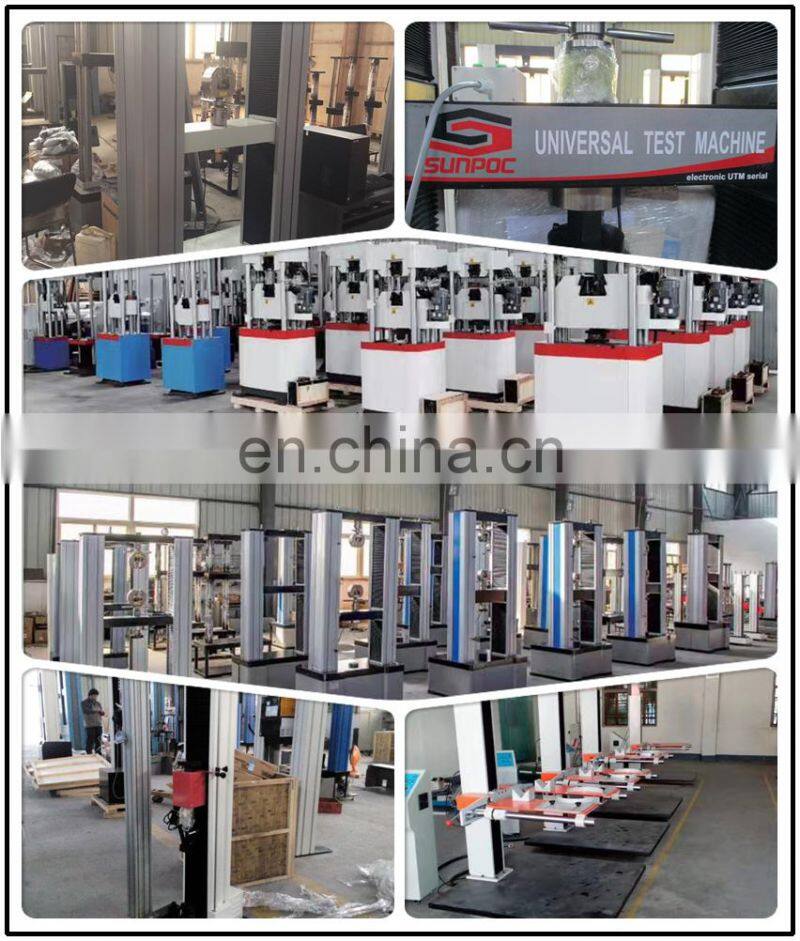

Our Company
Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
*12 Months Products hard ware warranty.
