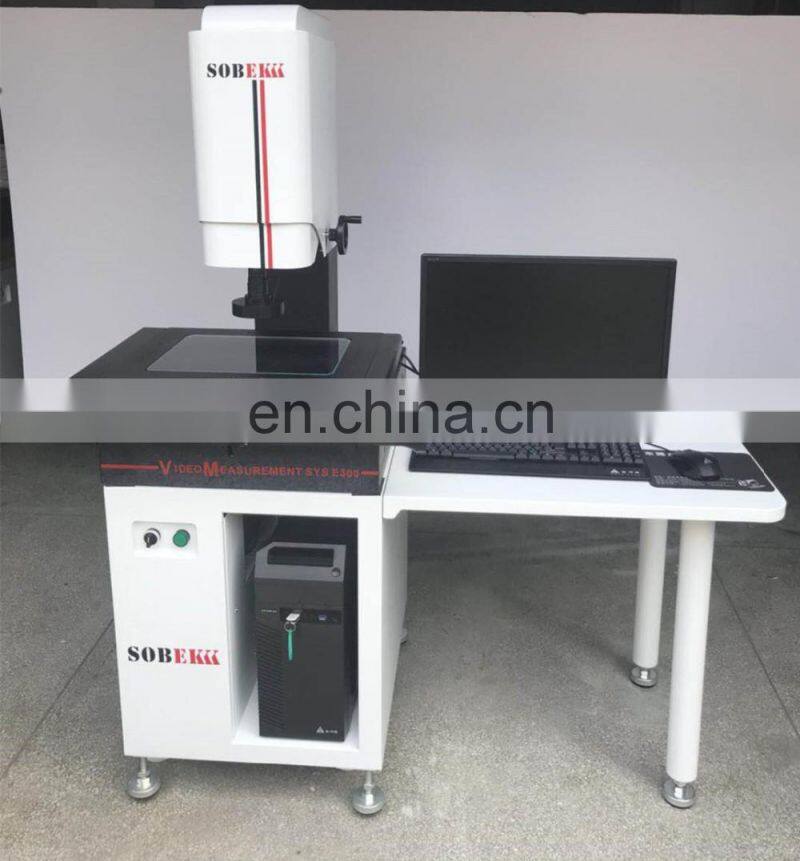

SOBEKK E-Series Manual Vision Measuring System
- T/T Credit Card
You May Like
-
SOBEKK AC-CNC Economic Automatic Vision Measuring System
-
Low Cost Cheap Price High Quality Horizontal Optical Comparator Profile Projector
-
Low Cost Cheap Price High Quality Horizontal Profile Projector
-
Cheap Price Optical Comparator Profile Projector
-
Low Cost Optical Comparator Optical Profile Projector
-
Low Cost Cheap Price High Quality Horizontal Profile Projector With Projection Screen 1200mm
Product Description

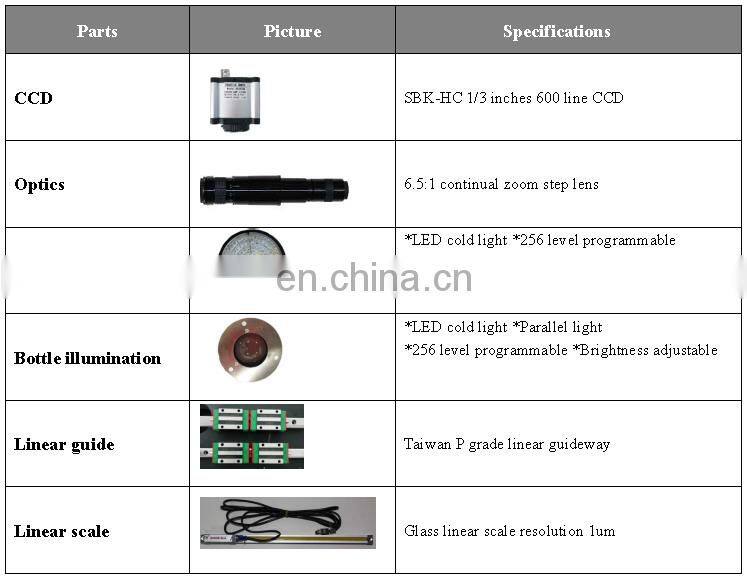

Features
1) "HIWIN" P level linear guideway and precision cross roller guideway for increased accuracy & working life
2) Integrated granite base and column ensures machine stability.
3) Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and vision height
measurement function.
4) Supplied with removable & dismountable console support table
5) High-definition detent step zoom lens and high-resolution CCD performs high-definition measurement.
6) Supports different file formats of data output such as Word, Excel, CAD etc. DXF import for quick inspection


Specification
Model | E200 | E300 | E400 | E500 | |||
Measuring range(mm) | 200*100*200 | 300*200*200 | 400*300*200 | 500*400*200 | |||
Machine size(mm) | 750*1300*1500 | 750*1300*1500 | 900*1400*1500 | 1100*1125*1650 | |||
Weight(kg) | 300 | 300 | 400 | 530 | |||
Max load(kg) | 20 | 25 | 25 | 30 | |||
Accuracy of X-Y axis | 3+L/200µm | ||||||
Accuracy of Z axis | 5+L/200µm | ||||||
XYZ resolution | 1.0μm | ||||||
Repeatability(mm) | 0.003 | ||||||
Magnification | Optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X | ||||||

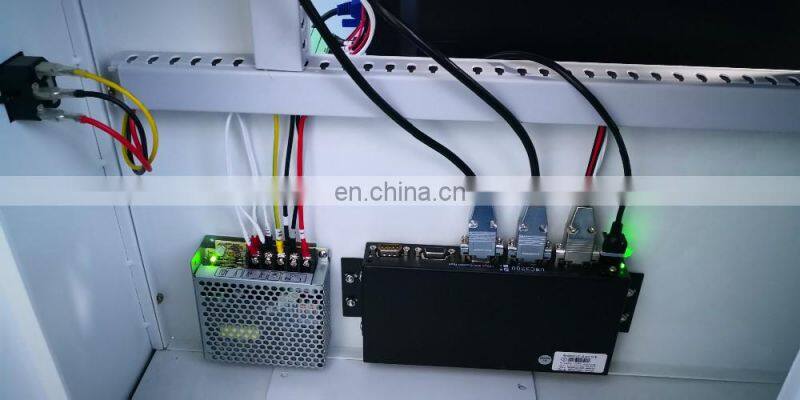

Control system | SBK3000 control box, USB port, adjustable light | ||||||
Operated mode | Handle wheel | ||||||
Software Interface








As the branch of SUNPOC group, SOBEKK Precison Instrument is a professional manufacturer for video measuring machine from China with more than 15 years experience, we are made up of 1 factory, 6 after sales service centers, 1R&R center and 1 foreign sales department. we meet the standard of ISO9001,products with CE certificate. now we are service the customers from more than 30 countries and regions . such as :USA, Poland, Hungary, Korea, Vietnam, Thailand, Malaysia ...
Company Goal: to be the most stable supplier for video measuring machine in China
