2bec Liquid/Ring Double Stage Vacuum Pump & Compressor for Power Plant Oil Free Piston Vacuum Pump

Brief introduction:

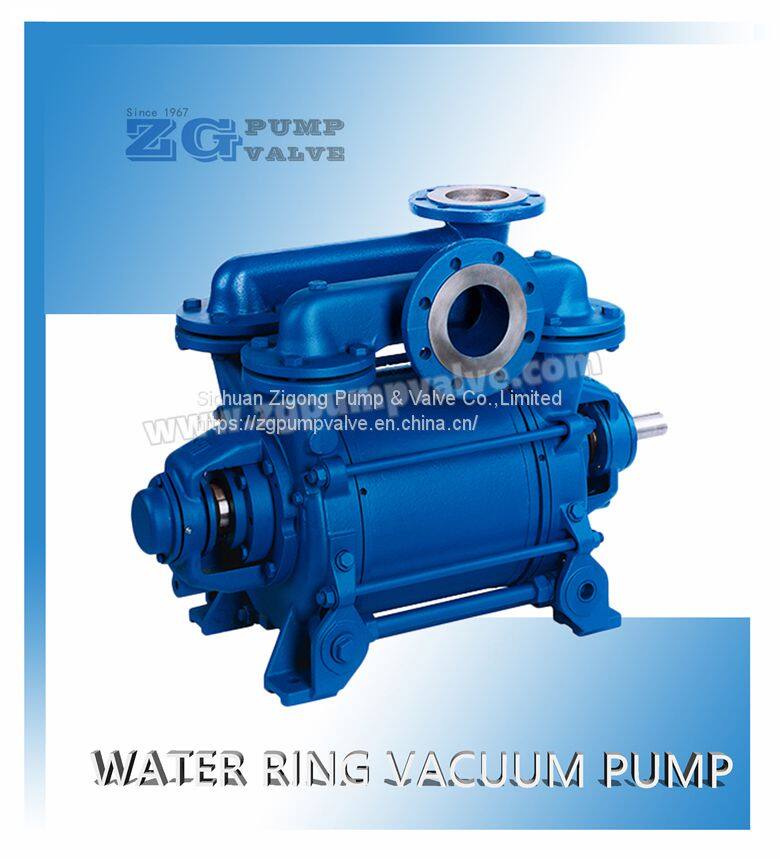

SK single stage water ring vacuum pumps are widely used in petrochemical, pharmaceutical, food, sugar industry and other fields. Because the gas compression process is isothermal during the working process, it is not easy to compress and pump flammable and explosive gases. It is dangerous and its application is more extensive.

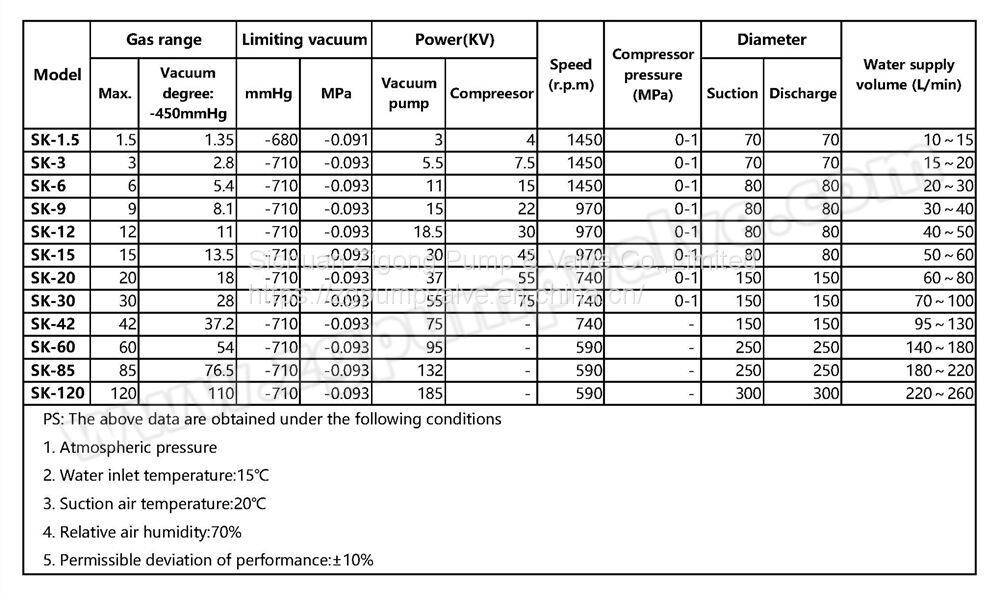

Parameters:

Features:

Since the work generates heat during work, the working water ring will heat up, and at the same time, part of the water and gas are discharged together. Therefore, during the work, the pump must be continuously supplied with water to cool and replenish the pump.

The seal can be mechanically sealed and installed in the packing chamber, and the packing is omitted. The packing gland is replaced by a mechanical gland, and the rest of the structure is the same as the packing seal.

Configuration:

Application:

Water ring vacuum pumps are widely used in:

Vacuum filtration, vacuum distillation, extrusion molding, impregnation, liquid degassing, compressed air regeneration, food processing, steam recovery, water pump diversion, condenser water tank replenishment, drying, wood drying, pharmaceutical vacuum, laboratory vacuum, solvent recovery, extraction, tanning, canning, etc.
