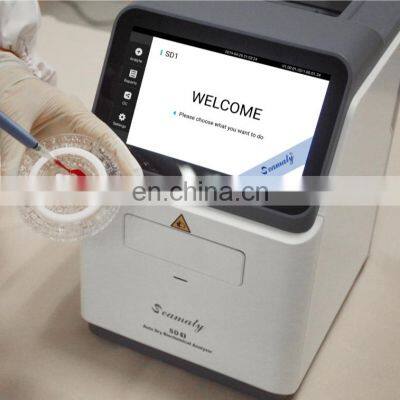

Seamaty SD1 Clinical Analytical Instruments Chemical Analyzer Portable Blood Chemistry Analyzer

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Specifications

SD1 Chemistry Analyzer

SD1 is a completely new and fully automated biochemical analyzer for human health diagnosis, accurate reference laboratory results. Through the latest medical and technological innovation, SD1 portable automatic biochemical analyzer can provide better diagnosis for blood analysis quickly, easily and accurately.

The reagent disc consisting of freeze drying reagent beads, diluent and QR code. It is single use with six months lifespan at the temperature of 2-8 Deg C. It offers multi-parameter testing for fast, accurate disease screening.

Advantage

■ Three simple steps for fast, efficient performance (12 minutes) ■ Only 100ul sample needed for a test ■ Single-use multi-test panel including chemistry, electrolyte, immunoassay and more ■ Memory capacity up to 500,000 patient records ■ Competitive and affordable reagent discs

Sample Type	Anti-coagulation whole blood, serum, plasma
Sample Volume	90-120 μl
Bar Code	QR Code
Testing Time	12 minutes/sample
Testing Principle	Absorption spectroscopy,transmission turbidimetry
Testing Method	End point, kinetic, fixed time, turbidmetry etc
Temperature	37±0.3℃
Absorbance	0-3.0Abs
Resolution	0.001 Abs
Cross Contamination	0
QC & Calibrate	IQC Intelligent QC
Working Condition	Temperature:10-30℃ Humidity: 30%-70%
Light Source	120v/20w, halogen tungsten lamp’s lifespan is over 2500 hours
Power Supply	AC220V, 50Hz
Power Rating	120VA
Optical System	After the filter spectral, 8 wavelength synchronous detection: 340,405,450,505,546,600,630,850nm
Display	Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice
Storage	500,000 results
Printer	Built-in thermal printer
Connectors	4 USB ports, 1 LAN port
Weight	4.6KG
Size	200mm(L)252mm(W)299mm(H)

Product packaging

? Analyzer (One unit per carton)			? Reagent discs (50PCS per carton)
shipping weight: 9Kg			shipping weight including ice bags: 5Kg
shipping dimension: 48.038.034.0cm			shipping dimension: 41.033.025.0cm

Company Profile

Seamaty has certificates including ISO13485:2016 Qaulity Management System issued by TUV; CE Declaration of Conformity listed by TUV as IVD device; Free Sale Certificate and Patents.

FAQ

Q: What is the sample volume required for a test?
90ul whole blood or serum or plasma is required to run a test.

Q: Does the analyzer require calibration?
No, the reagents are factory calibrated. The analyzer reads calibration values from the barcode on the disc itself.

Q: Can I connect the analyzer to an external computer?
Yes, through USB port to connect analyzer with the computer.

Q: Could I use your reagent disc in other analyzers?
No, it is a close system. The reagent only matches to our analyzer.

Q: How is warranty?
24 months for our analyzer. Seamaty or ur distributors will provide after-sales service.
