Portable Clinical Laboratory Equipment SD1 Blood Test Machine Chemistry Analyzer

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

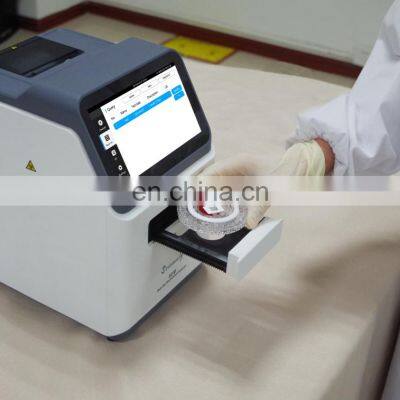

Seamaty SD1 is a fully automated chemistry analyzer designed for the on-site testing. It can provide faster, easier, more accurate medical diagnosis using 0.1cc of whole blood, serum or plasma. Utilizing cloud computing, SD1 can help the operators to make medical decisions remotely. Built-in centrifuge, QR code , real-time quality control. The test results will be automatically printed after 12 minutes.

Little sample volume required	Sample volume needed is 1/10 - 1/20 of traditional chemistry analyzer.
Easy to carry	4.6 kg. The portable analyzer designed to save space,use it anywhere anytime.
Large screen	The 7-inch large color capacitive screen, perfect human-computer interaction design, supports precise touch for operators of all ages.
Accurate result	Using the photoelectric colorimetric principle,the SD1 analyzer has many advantages versus traditional dry biochemistry analyzer using the light reflection method.Dilution of test sample is guaranteed without random errors and cross contaminations.
Fast detection	Simple 3-step operation, the whole process from adding anticoagulant whole blood to outputting results can be completed in about 12 minutes, helping you to quickly obtain comprehensive and reliable test results, reducing customer waiting time and improving customer satisfaction.
After sale	A perfect service team with a strong sense of service, sophisticated technology and high work efficiency can continue to support you during the complete life cycle of the product.

Product Paramenters

Sample Type	Anti-coagulation whole blood, serum, plasma
Sample Volume	90-120 μl
Bar Code	QR Code
Testing Time	12 minutes/sample
Testing Principle	Absorption spectroscopy,transmission turbidimetry
Testing Method	End point, kinetic, fixed time, turbidmetry etc
Temperature	37±0.3℃
Absorbance	0-3.0Abs
Resolution	0.001 Abs
Cross Contamination	0
QC & Calibrate	IQC Intelligent QC
Working Condition	Temperature:10-30℃ Humidity: 30%-70%
Light Source	120v/20w, halogen tungsten lamp’s lifespan is over 2500 hours
Power Supply	AC220V, 50Hz
Power Rating	120VA
Optical System	After the filter spectral, 8 wavelength synchronous detection: 340,405,450,505,546,600,630,850nm
Display	Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice
Storage	500,000 results
Printer	Built-in thermal printer
Connectors	4 USB ports, 1 LAN port
Weight	4.6KG
Size	200mm(L)252mm(W)299mm(H)

Details Images

Our Advantages

Product Feature

Independent Channel			Use microfluidic technology with internal independent channel to avoid cross-contamination during running.
Built-in Diluent			Eliminate the need for the processing of adding diluent which makes the operation easier.
Retaining Ring			The unique reagent disk retaining ring patent can effectively prevent the splash of liquid during the high-speed rotation of the reagent disk and reduce cross-contamination.
Single-use			The reagent tray is individually packaged for a single serving and is for one-time use. There will be no secondary pollution during use, and it is clean and hygienic.
QR Code			The innovative of built-in QR code technology not only has the decoding function of distinguishing the type of reagent plate and identifying the effective date of the reagent plate, but also has the function of regional custom code.
1 Year Shelf Life			The special lyophilization process is adopted to completely sublime the internal moisture of the reagent without destroying the active ingredients. The validity period is as long as 1 year under refrigeration at 2~8℃.

14 General Chemistry Kit			ALB, ALP, ALT, AMY, AST, Crea, GLU, GGT, TB, TC,TG, TP, UA, UREA, GLOB, U/C, A/G*
18 General Chemistry II Kit			ALB,AMY,AST,Ca,CK,Cl-, Crea, GLU, HBDH,K+,LDH,LPS,Mg,Na+,PHOS, tCO2,UA,UREA,U/C*
19 General Chemistry III Kit			Crea, UREA, UA, ALB, TP, GLU, TC, TG, HDL, ALP, GGT, TB, DB, CHE, TBA, ALT, AST, CK, AMY, GLOB, U/C, A/G, LDL
10 Liver Function Kit			ALB, ALP, ALT, AMY, AST, CHE, GGT, TBA, TB, TP, GLOB, A/G
7 Electrolyte Kit			Ca, Cl-, K+, Mg, Na+, PHOS, tCO2
6 Lipid Kit			ALT, AST, GLU, HDL, TC, TG, LDL*
4 Cardiac Kit			AST, CK, HBDH, LDH
17 Conventional Chemistry Kit			ALB, ALP, ALT,AST, CHE, Crea, DB, GGT, GLU, HDL, TB, TBA, TC, TG, TP, UA, UREA, GLOB,U/C,A/G,LDL
14 General Chemistry B Kit			ALB, ALT, AMY, AST, CK, Crea, DB, GLU, TB, TC, TG, TP, UA, UREA, GLOB,U/C,A/G*
13 Livernal Function Kit			ALB, ALP, ALT, AST, CHE, Crea, DB, GGT, TB, TBA, TP, UA, UREA,GLOB,U/C,A/G*
10 Relyte Kit			K+, Na+, Cl-, Ca, PHOS, Mg, tCO2, UREA, Crea, UA, U/C*
16 Health Check Kit			ALB, ALT, AMY, AST, Ca, CK, Crea, GLU, PHOS, TB, TG, TP, UREA, GLOB, U/C, A/G*
9 Renal Function Plus Kit			ALB, Ca, Cl-, Crea, K+, Na+, UA, UREA, U/C*
8 Relyte Kit			K+, Na+, Cl－, tCO2, UREA, Crea, GLU, U/C*
12 Liver Function Plus Kit			ALB, ALP, ALT, AMY, AST, DB, GGT, LPS, TB, TP, GLOB, A/G
14 Chemistry CRP Kit			TP, CREA, TB, AST, ALP, ALB, ALT, DB, GLU, CRP, UREA, GLOB, U/C, A/G*
5 CRP Kit			LPS, CRP, AMY, UREA, Crea

Seamaty chemistry reagent discs have 33 parameters in total, providing 18 test profiles, allowing maximum 23 parameters in a single test.

Packing&Shipping

1. We ship the SD1 Chemistry Analyzer by air or sea for you.
2. Our SD1 Chemistry Analyzer with standard export packing.
3. No matter what delivery way , all depending on your actual requirements.

Company Introduction

Clients Reviews

USA Distributor

"My customers are happy. They said thanks to Seamaty that they could lower a lot of the operating costs with decision to switch from other brands." ---Phil

India Distributor

"I am impressed on the analyzer and service of Seamaty. With our 20 years experience in veterinary market, I believe we will sell a lot of those analyzers." ---Ranjen

Chile Client

"The SMT-100V analyzer is easy to use and have allowed us to provide quick and reliable on-the-spot results to our clients." ---Alejandro

Brazil Client

"I installed Seamaty vet analyzers in my vet clinics. It is really easy to use and the accuracy and speed are good." ---Sunil

FAQ

Q: What is the sample volume required for a test?
100ul whole blood or serum or plasma is required to run a test.

Q: What is the shelf life of the reagent discs?
The reagent discs can be stored for up to 12 months at 2-8°C.

Q: Does the analyzer require calibration?
No, the reagents are factory calibrated. The analyzer reads calibration values from the barcode on the disc itself.

Q: Can I connect the analyzer to an external computer?
Yes, through USB port to connect analyzer with the computer.

Q: Could I use your reagent disc in other analyzers?
No, it is a close system. The reagent only matches to our analyzer.

Q: How is warranty?
24 months for our analyzer. Seamaty or ur distributors will provide after-sales service.
