Home > Products > Custom Battery Packs > OEM Li-ion Battery Pack Rechargeable 7.4V 18650 Pos Terminal Battery

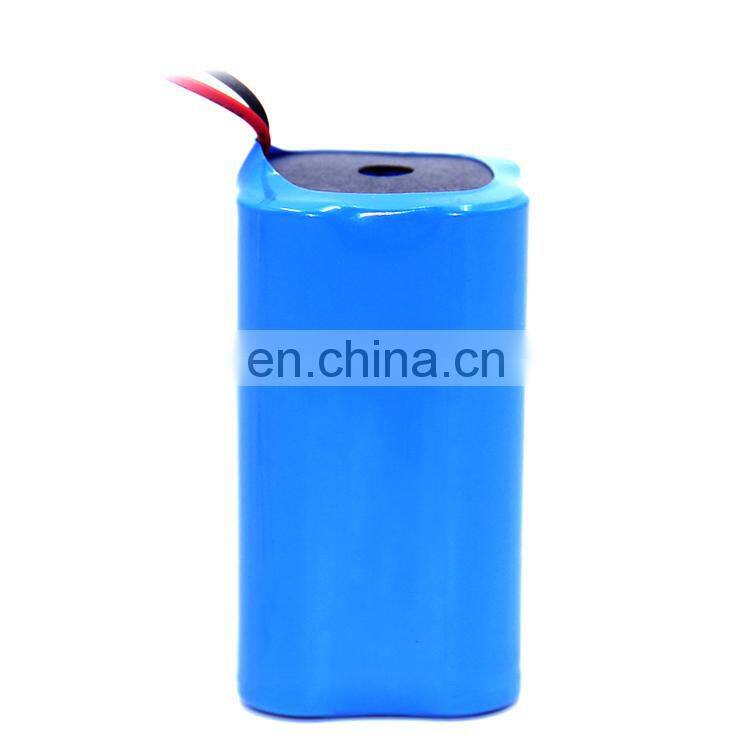

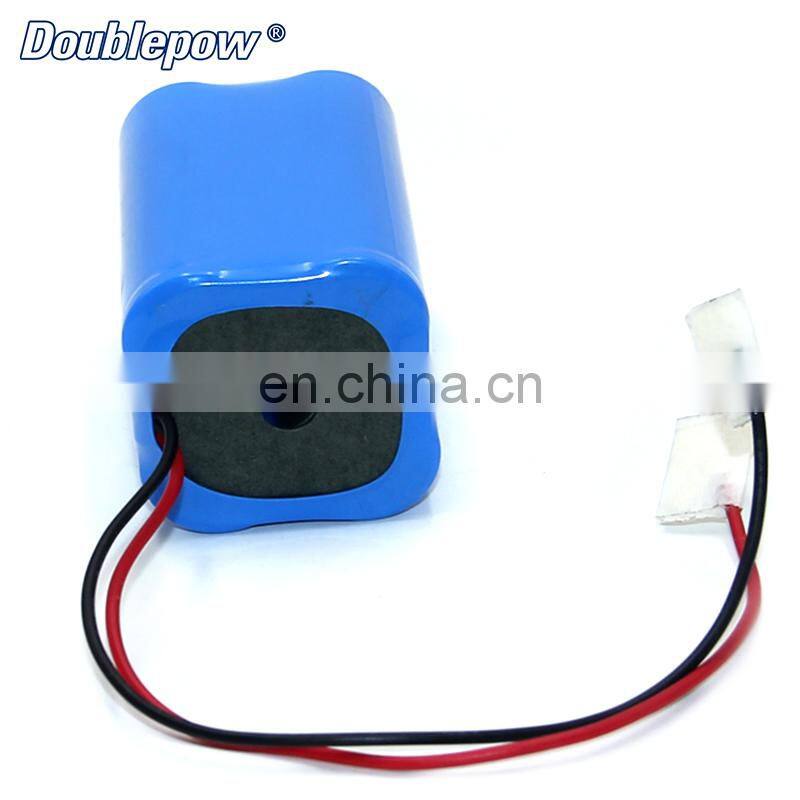

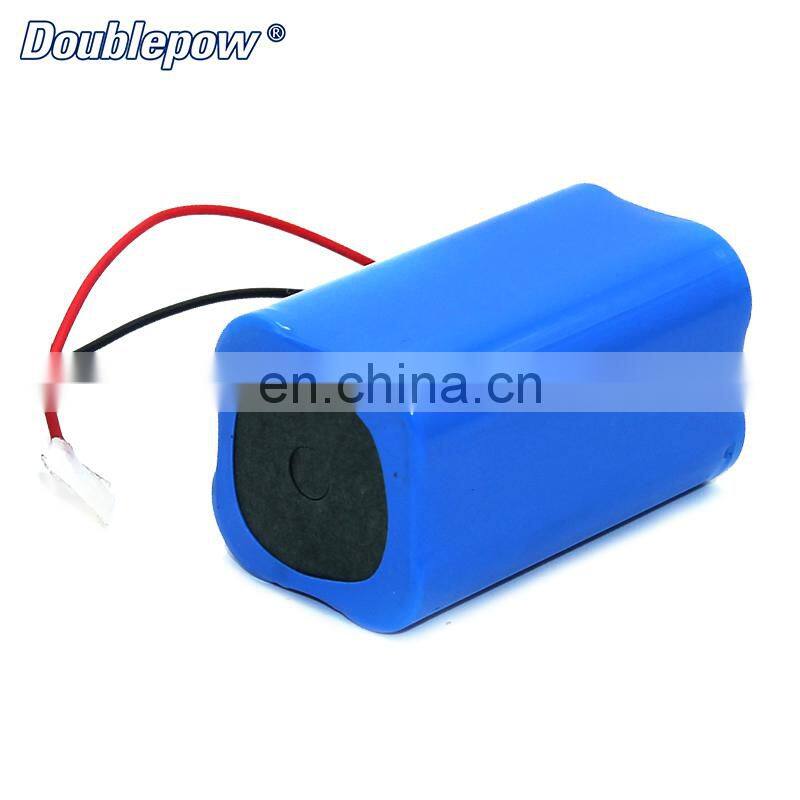

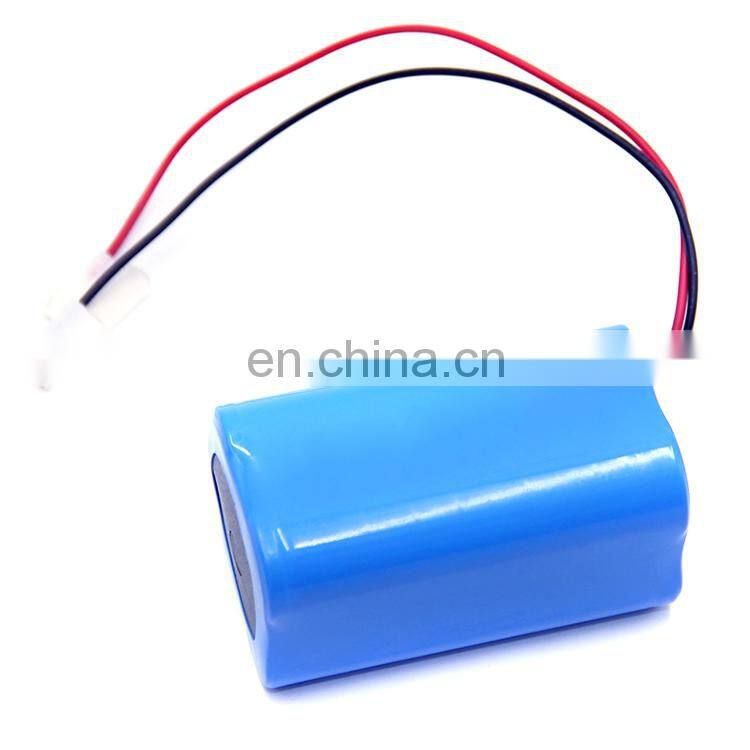

OEM Li-ion Battery Pack Rechargeable 7.4V 18650 Pos Terminal Battery

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

OEM Li-ion battery pack rechargeable 7.4V 18650 pos terminal battery

Specification:

Brand：Doublepow（OEM/ODM）

Capacity:custom

Nominal Voltage:7.4V

Material: Lithium Battery
Warranty: 1 year
Color:bule Anode
Material: Lithium Cobalt Oxide
Nominal Capacity: 10Ah/20Ah/30Ah 40Ah or Custom

Application: pos terminal

Battery Series	Battery Type	Battery Size
1.2V NiMH / NiCD Battery	Rechargeable	AA/AAA/C/D
1.5V Li-ion Battery	Rechargeable	AA/AAA/C/D
3V Lithium Battery	Rechargeable	CR2/CR123A
3.2V LiFePo4 Battery	Rechargeable	10440~18650~32700
3.7V Li ion Battery	Rechargeable	10440~18650~26650
9V Battery	Rechargeable	Prismatic
Button Cell Battery： Alkaline-Mn Li-Mn	Non-Rechargeable	1.5v: AG1~AG13 3.0v: CR1220~CR2032~CR2450
1.5V Dry Battery	Non-Rechargeable	AA/AAA/C/D
Custom Battery Pack	Rechargeable	Custom size
Battery Charger for all of standard rechargeable batteries

Please Send Us An Email or Inquire

If you want to know more informations about our ODM/OEM service, Welcome to visit our company and factory in Shenzhen, China.

Recommend Products

Our Company

Certifications

Packing & Delivery

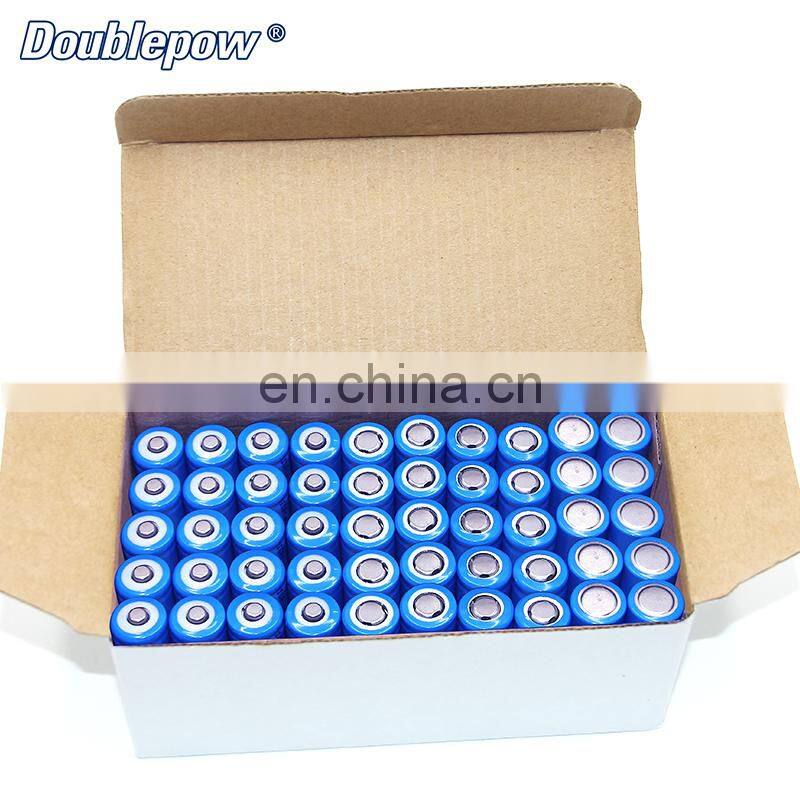

Packing

We strictly obey battery transportation rules,which transportation departments of air,express or sea request. Normally,each battery will be packed by PE or other insulation bag,or tray,and ensure each one must be insulated from others,then put them in certain carton as our shipping carriers request.We also accept special inner packaging for each battery as you request.

FAQ

18650 battery pack

1.18650 Li-ion cells are a great way to power Projects. Which provides a nominal voltage of 3.7V which is not sufficient for most of the application for let's say you want to power a BLDC motor with an ESC which requires 9V to start. So we need more voltage which can be achieved by connecting them in series. We will show you how you can make a 18650 Li-ion Battery Pack with a BMS circuit and all the things you need to know before you built one! Everything We Need for Building a 18650 Battery Pack. 2. Check the Battery and Charge Them Up! First, we need to check the capacity of all the cells & make sure all the cells are at the same voltage. It is mandatory that all the cells are at the same voltage else cells will end up charing each other and it can lead to unexpected results. 3. Calculations for the battery pack voltage and capacity 18650 cell can provide a Nominal voltage of 3.7V, Minimum voltage of 3V and Maximum voltage of 4.2V. So if we consider nominal voltage, connecting 6 cells in series will give us 22.2V which is a 6S1P Configuration. Where 6S means 6 Cells in series and 1P means 1 cell in Parallel. By adding another 6 Cells in parallel we can not only double the capacity but also the amount of current Pack can deliver.

Q: What are the applications of 18650 battery pack?

A:18650 Li-ion cells-18650 batteries are used for powering everything from laptop batteries to electric vehicles. It is a standardized type of lithium-ion battery, cylindrical in shape and measuring 18mm in diameter by 65mm in length (give or takea few 1 / 10s of a millimeter). Q: What is BMS?

A:BMS-A battery management system (BMS) is an electronic system that manages a rechargeable battery (cell or battery pack), such as by protecting the battery from operating outside its safe operating area, monitoring its state, calculating secondarydata, reporting that data, controlling its environment, authenticating it and / or balancing it. Adding BMS Now we can add and plug and call it for the day but we can also add a BMS which adds over charge, over discharge and some of the also add Balance charging to the battery pack. We just have to solder it to the battery pack as shown on the board. Also, some BMS like mine does not offer Balance charging so you need to add and Balance charging connector and You are done! Q: Why do I need a plastic gasket?

A:Plastic Spacer- Replacing the traditional general adhesive with a professional battery holder, the combination is very convenient, the connection is more firm, and the battery maintenance is also convenient. It is the best choice for battery packs. It makes building battery pack much less painful. Q: The purpose of spot welding?

A:Spot welder-One of the purposes of spot welding is to join 2 or more components together in a mainly permanent fashion. You can buy one or built one. Building the Pack and Spot Welding For building the battery pack we need tiny black Plastic spacers which snap like Lego and can be very useful as we don't need to use adhesive instead. Now make 2 pairs of 6 plastic spacers, Insert the cells in alternation pattern. Now we measured the spacing between 2 cells and it was about 25mm. So I used Nickel Ribbon marked 25mm on it and used sharp scissors to snap it. Now Place the Nickel pieces on top of cells and make a series connection use a spot welder to fuse nickel ribbon and battery top. Q: What is the role of nickel belt?

A: Nickel Ribbon-Nickel ribbon is commonly used in battery building due to its ease of use in spot welding and soldering as well its high corrosion resistance over time.

Please Send us An Email or Inquiry!If you want to know more informations about our ODM / OEM service.Welcome to visit our company and factory in Shenzhen, China.
