4R 4819 4-Row Cylindrical Roller Bearings 4R4819

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

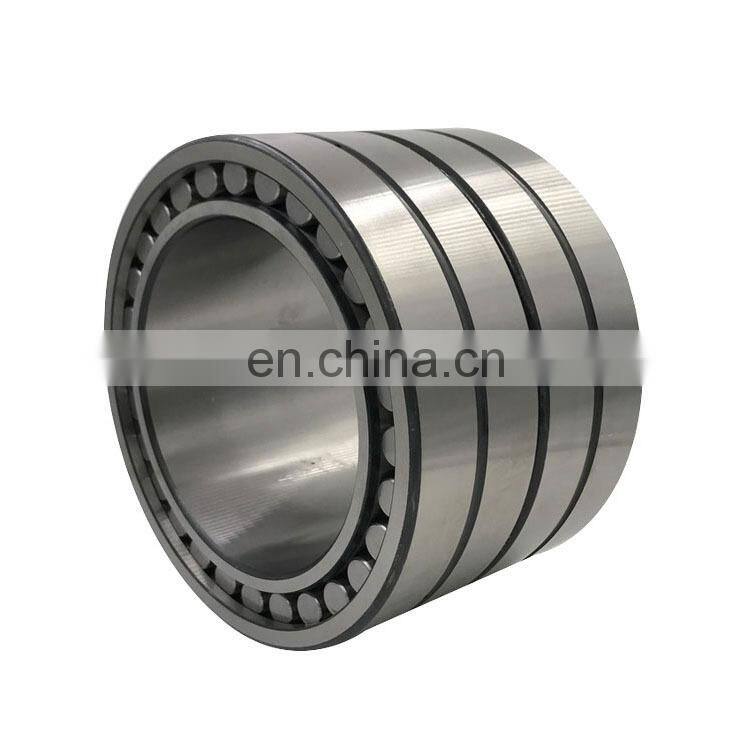

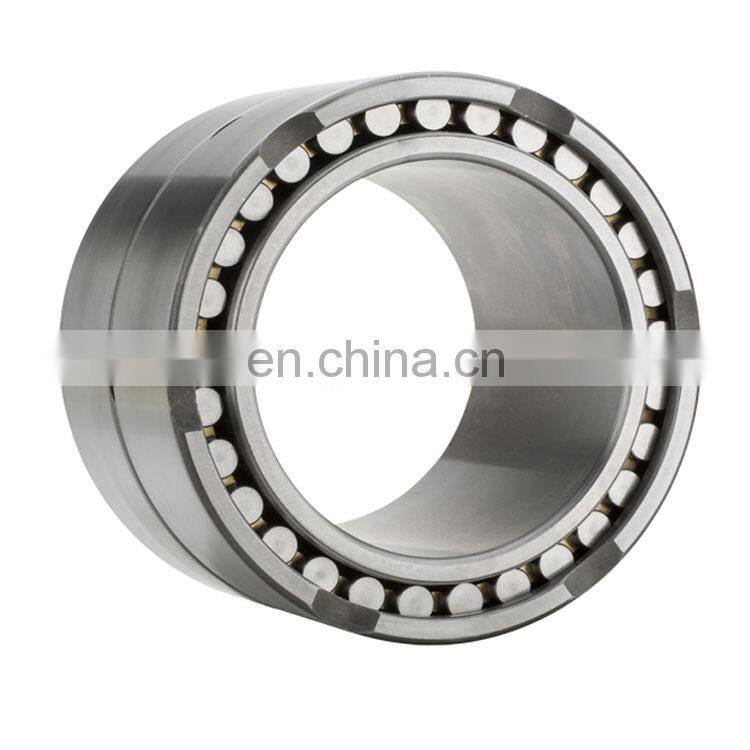

4R 4819 4-Row Cylindrical Roller Bearings 4R4819

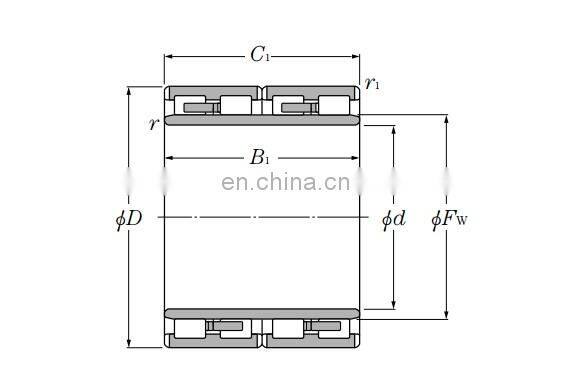

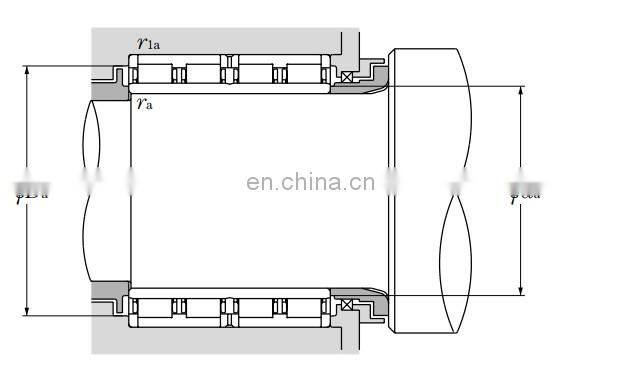

Boundary dimensions				Abutment and fillet dimensions			Mass	Bearing Numbers
mm				mm			kg
d	D	B1	C1	Fw	da	Da
230	340	260	260	261	243	327	82.6	4R4611
240	330	220	220	270	253	317	56.8	4R4811
240	330	220	220	264	253	317	57.1	4R4819
240	330	220	220	268	253	317	57.1	4R4821
240	330	220	220	270	253	317	57.1	4R4804
240	340	220	220	268	253	327	63.6	4R4806
240	360	220	220	274	251	349	79.6	4R4807
240	360	220	220	274	251	349	80.1	4R4813
250	350	220	220	278	263	337	66	4R5008
260	360	220	200	292	271	349	62.7	4R5221
260	360	260	260	287	271	349	81.5	4R5231
260	370	220	220	292	273	357	77.1	4R5208
260	370	220	220	292	273	357	76.5	4R5217
260	380	280	280	294	273	367	109	4R5213
260	400	290	290	296	276	391	135	4R5218
265	370	234	234	300	273	362	78.9	4R5306
270	380	280	280	297	281	369	101	4R5407
270	380	280	280	299.7	281	369	105	4R5405
280	350	208	208	298	291	339	46.4	4R5614
280	390	220	220	312	293	377	81.3	4R5611
280	390	220	220	312	293	377	82	4R5604
280	390	275	275	312	291	379	105	4R5612
280	420	280	280	323	296	404	139	4R5605
290	410	240	240	320	303	397	103	4R5806
290	420	300	300	327	303	407	141	4R5805
300	400	300	300	328	313	387	104	4R6014
300	420	240	240	334	313	407	106	4R6017
300	420	240	240	334	313	407	105	4R6012
300	420	240	240	336	313	407	105	4R6023
300	420	240	240	332	313	407	105	4R6027
300	420	300	300	331	313	407	136	4R6030

Packing&Shipping

Bearings Package:

Original Package:

1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2):Small sizes:Plastic Tube + Carton

3):Big sizes:Wooden Case

Bearings Lead time:

We will prepare your order as soon as possible.

1)2-3 days for ex-stock

2)6-10 days for others
