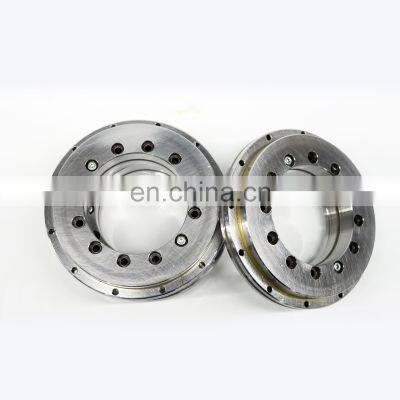

Crossed Roller Bearing Slew Drive RU66

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Crossed roller bearings product description

BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Products Show

Product Paramenters

Shaft diameter (mm)	Model number	Main dimensions (mm)					Weight(kg)
				Inner ring(d)	Outer ring(D)	Width B B1
20	RU42	20	70	12	0.29
35	RU66	35	95	15	0.62
55	RU85	55	120	15	1
80	RU124(G)	80	165	22	2.6
						RU124X	500	550	25	7.3
90	RU148(G)	90	210	25	4.9
						RB148X		625	50	41.7
115	RU178(G)	115	240	28	6.8
	700					RU178X	700	815	45	46
160	RU228(G)	160	295	35	11.4
	900					RU228X	900	1050	70	120
210	RU297(G)	210	380	40	21.3
	1250					RU297X	1250	1500	110	440
350	RU445(G)	350	540	45	35.4
						RU445X

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing

Packaging & Shipping

1. Industrial Neutral Packing,Package as your requirements. 2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box 4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc

Company Profile

Company Information

Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
