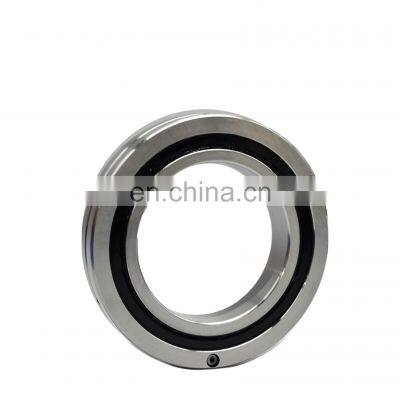

NRXT8013(80X110X13mm) Double Seal Slewing bearing For Robot
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CNC Machine RU445G/X RU35045 (350X540X45mm) cylindrical roller bearing
-
cross roller bearing XU120222 140x300x36mm Cylindrical bearing Slewing bearing
-
RU85/CRBF5515AT Axial Radial cylindrical roller bearing 55*120*85
-
CNC mahine tool RB70045 Slewing bearing Cross Roller bearing
-
RU42/CRBF2012AT single row crossed roller bearing for robot 20mm*70mm*12mm
-
RU124G/X CRBF8022AD CRBF8022AT single row Cylindrical crossed roller bearing
Product Description
Products Description
Crossed roller bearings product description
and outer rings with high rigidity,because of its vertical arrangement of cylindrical rollers with
a 90°V groove through the separate spacers in the deep grooverolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and
moment loads.
Products Show
Product Paramenters
Shaft diameter | Model number | Main dimensions (mm) | Weight | ||||
Inner ring | Outer ring | width | |||||
d | D | B B1 | Kg | ||||
20 | RB2008 | 20 | 36 | 8 | 0.04 | ||
25 | RB2508 | 25 | 41 | 8 | 0.05 | ||
30 | RB3010 | 30 | 55 | 10 | 0.12 | ||
35 | RB35 10 | 35 | 60 | 10 | 0.13 | ||
40 | RB4010 | 40 | 65 | 10 | 0.16 | ||
45 | RB4510 | 45 | 70 | 10 | 0.17 | ||
50 | RB5013 | 50 | 80 | 13 | 0.27 | ||
60 | RB6013 | 60 | 90 | 13 | 0.3 | ||
70 | RB7013 | 70 | 100 | 13 | 0.35 | ||
80 | RB8016 | 80 | 120 | 16 | 0.7 | ||
90 | RB9016 | 90 | 130 | 16 | 0.75 | ||
100 | RB10016 | 100 | 140 | 16 | 0.83 | ||
RB10020 | 150 | 20 | 1.45 | ||||
110 | RB11012 | 110 | 135 | 12 | 0.4 | ||
RB11015 | 145 | 15 | 0.75 | ||||
RB11020 | 160 | 20 | 1.56 | ||||
Shaft diameter | Model number | Main dimensions (mm) | Weight | ||||
Inner ring | Outer ring | Width | |||||
d | D | B B1 | Kg | ||||
120 | RB12016 | 120 | 150 | 16 | 0.72 | ||
RB12025 | 180 | 25 | 2.62 | ||||
130 | RB13015 | 130 | 160 | 15 | 0.72 | ||
RB13025 | 190 | 25 | 2.82 | ||||
140 | RB14016 | 140 | 175 | 16 | 1 | ||
RB14025 | 200 | 25 | 2.96 | ||||
150 | RB15013 | 150 | 180 | 13 | 0.68 | ||
RB15025 | 210 | 25 | 3.16 | ||||
RB15030 | 230 | 30 | 5.3 | ||||
160 | RB16025 | 160 | 220 | 25 | 3.14 | ||
170 | RB17020 | 170 | 220 | 20 | 2.11 | ||
180 | RB18025 | 180 | 240 | 25 | 3.44 | ||
190 | RB19025 | 190 | 240 | 25 | 2.99 | ||
200 | RB20025 | 200 | 260 | 25 | 4 | ||
RB20030 | 280 | 30 | 6.7 | ||||
RB20035 | 295 | 35 | 9.6 | ||||
220 | RB22025 | 220 | 280 | 25 | 4.1 | ||
Shaft diameter | Model number | Main dimensions (mm) | weight(kg) | ||||
Inner ring(d) | Outer ring(D) | width B B1 | |||||
250 | RB25025 | 250 | 310 | 25 | 5 | ||
RB25030 | 330 | 30 | 8.1 | ||||
RB25040 | 355 | 40 | 14.8 | ||||
300 | RB30025 | 300 | 360 | 25 | 5.9 | ||
RB30035 | 395 | 35 | 13.4 | ||||
RB30040 | 405 | 40 | 17.2 | ||||
350 | RB35020 | 350 | 400 | 20 | 3.9 | ||
400 | RB40035 | 400 | 480 | 35 | 14.5 | ||
RB40040 | 510 | 40 | 23.5 | ||||
450 | RB45025 | 450 | 500 | 25 | 6.6 | ||
500 | RB50025 | 500 | 500 | 25 | 7.3 | ||
RB50040 | 600 | 40 | 26 | ||||
RB50050 | 625 | 50 | 41.7 | ||||
600 | RB60040 | 600 | 700 | 40 | 29 | ||
700 | RB70045 | 700 | 815 | 45 | 46 | ||
800 | RB80070 | 800 | 950 | 70 | 105 | ||
900 | RB90070 | 900 | 1050 | 70 | 120 | ||
1000 | RB1000110 | 1000 | 1250 | 110 | 360 | ||
1250 | RB1250110 | 1250 | 1500 | 110 | 440 | ||
Related products
Manufacturing Technique
Application Field
Product packaging
Plan01
Blister packaging
Plan02
Carton packaging
Plan03
Wooden case packing
Packaging & Shipping.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton.
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box.
4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc.
Company Profile
Company Information
Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table,medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design , choose and manufacture non-standard precision bearings as customer requested.
