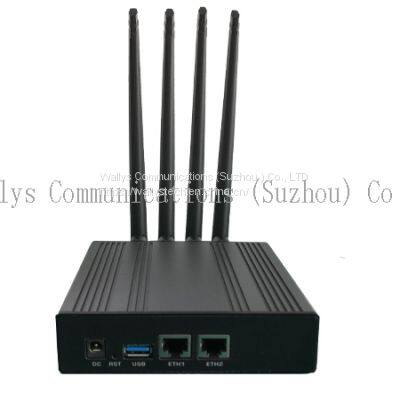

DR-AP40X9-A Indoor Aluminium alloy material  IPQ4019/4029 support OpenWrt 2.4/5G dual bands

Description

DR-AP40X9-A (Two Versions) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G Onmi Antennas; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.

Onmi Antenna

■  2 x 2.4G&5G Antenna

■  PCB Antenna

■  2.4G: 4dbi ;5G: 6dbi

Enclosure

■  Dimension: 220x 220 x 42.54mm

■  UV Protected and Durable ABS Radome

■  Support Wallys’ PCBA Mainboard

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	oC
Storage Temperature Range	-45 to +105	oC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	IPQ4029/IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）
Antenna Connector	2 x 5G MMCX connectors;2x2.4G MMCX
10/100/1000Mbps Gigabit Ethernet	2xRJ45
SFP connector	1xSFP fiber module connector (optional)
3G/4G connector	1xminipcie 3G/4G connector support with two sim card
USB connector	1xUSB 3.0 connector
POE	24V~48V passive POE
DC Jack	24V~48V power supply
ROHS Compliance	YES
Dimension	115mm x 105mm x 16mm
Max Power	48.1V x 0.180A= 8.658W
Nor Flash	2MB~32MB
Nand Flash	128MB
DDR	256MB~512MB




Radio TX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	27dBm	30dbm	±2dB
	54 Mbps	23dBm	26dbm	±2dB
802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
	MCS7, MCS15	22dBm	25dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	21dBm	24dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	19dBm	22dbm	±2dB




Radio RX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Sensitivity
802.11a	6 Mbps	-96dBm
	54 Mbps	-78dBm
802.11n HT20	MCS0, MCS8	-93dBm
	MCS7, MCS15	-73dBm
802.11n HT40	MCS0, MCS8	-90dBm
	MCS7, MCS15	-70dBm
802.11AC HT40	MCS0, MCS10,MCS20	-90dBm
	MCS9,MCS19,MCS29	-67dBm
802.11AC HT80	MCS0, MCS10,MCS20	-88dBm
	MCS9,MCS19,MCS29	-62dBm




Radio TX Specifications(2412MHz-2482MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11g	6 Mbps	27dbm	30dbm	±2dB
	54 Mbps	25dbm	28dbm	±2dB
802.11n HT20	MCS0, MCS8	26dbm	29dbm	±2dB
	MCS7, MCS15	25dbm	28dbm	±2dB
802.11n HT40	MCS0, MCS8	26dbm	29dbm	±2dB
	MCS7, MCS15	24dbm	27dbm	±2dB




Radio RX Specifications(2412MHz-2482MHz)




Operating Mode	Data Rate	Sensitivity
802.11g	6 Mbps	-96dBm
	54 Mbps	-78dBm
802.11n HT20	MCS0, MCS8	-93dBm
	MCS7, MCS15	-73dBm
802.11n HT40	MCS0, MCS8	-90dBm
	MCS7, MCS15	-70dBm




Version




Item	Information
DR40X9-1	CPU is IPQ4019
DR40X9-2	CPU is IPQ4029




LED & GPIO header




Item	Information	Note
1	PWR LED
2	Eth1 LED
3	Eth2 LED
4	2.4G LED	GPIO32
5	5G LED	GPIO50
6	Strength LED	GPIO36
7	Strength LED	GPIO39
8	NC
9	GND
10	Uart1_TX	GPIO8
11	Uart1_RX	GPIO9
12	NC
13	NC
14	NC
15	GND
16	PWR




Serial Port




Item	Information
1	PWR
2	Uart0 TX
3	Uart0 RX
4	GND




GPIO




Item	Information
GPIO11	Control for the switch of SIM cards
