PG 5100 Led pu Epoxy Filling Machineled Pcb pu Epoxy Machine

Automatic epoxy resin ab glue dispensing machine for LED soft rope light strip

Product Application

Widely used in LED lighting modules, LED display, LED flood lights, LED soft and hard light strips, fluorescent lamps, wall washers, waterproof power supplies, resistors, capacitors, photo albums, and other products.

Introduction :

1. Working Area: 400x5000x30/80mm

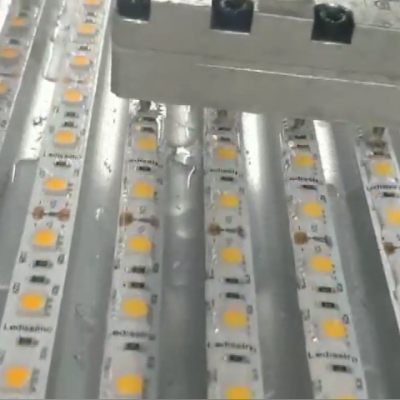

2.Application products: LED flexible strip

3.High precision valve: high speed, glue off clean, no glue drawing, no dropping.

4. Gear pump

5. Mix glue A & B more evenly; no more or no less for agent B.

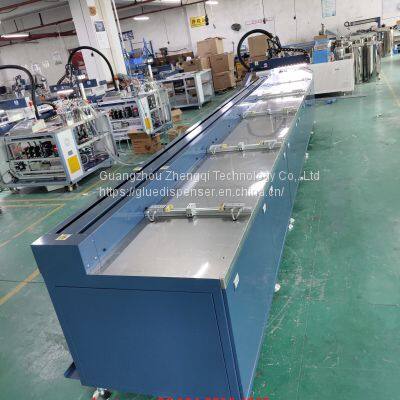

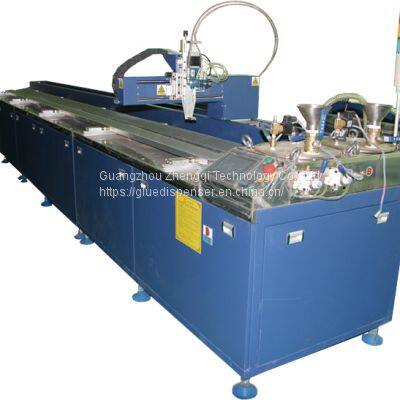

Name: Fully Automatic Glue Dispensing Machine

Model: PGB-5100 Advised Glue: two-component silicone, epoxy, PU, etc.

Ratio: 1:1 to 10:1 adjustable

Glue Color: transparent

Glue Type: no additives inside

Application: LED flexible strip 5m long Machine

Type: special for LED Strip 5m

Tech Data:

1.Gluing Speed: 0.2-12g/S

2.Repeatability: +/-1%

3. Glue Ratio: 1:1 to 10:1 adjustable

4. Tank Capacity: 10L, 25L, 40L available

5. Size: L6000xW1200xH1500mm

6. Weight: 810kg

7. Power: 1.5-3kw, Voltage: 220V & 380V optional

8. Air Pressure: 0.5-0.65MPa ( 5-6.5kgf/ cm2 )

1. High ratio between the base agent and hardener, ( the most common ratio is 10:1);

2. Transparent.

3. Need to vacuum to remove the air bubble inside

4. Not easy to mix the two components evenly.

5. Running Path is long. Have special requirement on metering pump.

1. Gluing Effect: high evenness; can not be rugged;

2. High precision for mixing of glue A and glue B. ( Glue B can not be more or less than required quantity)

3. Thickness of Glue: must be suitable.

4. Position: the nozzle must focus on the middle of PCB bar.

5. Capacity must meet up the customer’s requirement.
