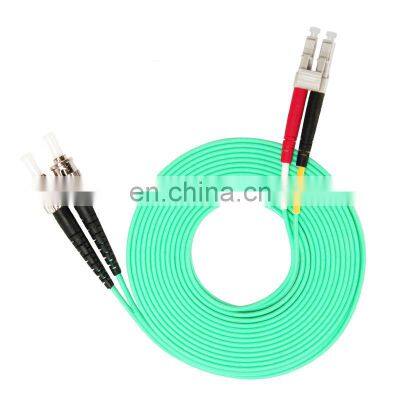

Manufacture Price OM3 10Gb Multimode LC To ST Fiber Optics Patch Cord
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Fiber Optic Patch Cord Om4 Om3 10 Gigabit Multimode LC To LC Optic Fiber Patch Cord
-
Low Loss OM3 10Gb Multimode 3m SC TO ST Fiber Optic Cable Patch Cord
-
Factory Supply MPO 8 Core OM3 Multimode Fiber Optical MPO-LC Patch Cord pigtails
-
Telecommunication Equipment OEM 24 Core OM3 Multimode MPO-LC OM3 Fiber Patch Cord
-
Low Loss Outdoor OM3 Multimode 12 Core MPO-MPO Patch Cord
-
Low Price 10G Multimode OM3 24 Core FTTH Fiber Optic MPO Patch Cord
Product Description
Recommend Products
Product Description
Support Ordering Parameters
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 3,5,10,15 meter or customized
7) Cable type: PVC, LSZH.Armored
8) patch cord/pigtailSupport Ordering Parameters:
Feature
1)Low Insertion loss
2)High return loss
3)Good Repeatability
4)Good Interchange
5)Excellent Environmental Adaptability
Application
1)Communication rooms
2)FTTH (Fiber to The Home)
3)LAN (Local Area Network)
4)FOS (fiber optic sensor)
5)Fiber Optic Communication System
6)Optical fiber connected and transmitted equipment
7)Defense combat readiness
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 3,5,10,15 meter or customized
7) Cable type: PVC, LSZH.Armored
8) patch cord/pigtailSupport Ordering Parameters:
Feature
1)Low Insertion loss
2)High return loss
3)Good Repeatability
4)Good Interchange
5)Excellent Environmental Adaptability
Application
1)Communication rooms
2)FTTH (Fiber to The Home)
3)LAN (Local Area Network)
4)FOS (fiber optic sensor)
5)Fiber Optic Communication System
6)Optical fiber connected and transmitted equipment
7)Defense combat readiness
Technical Parameters
Connetor Type | FC-FC FC-SC FC-LC FC-ST LC-LC LC-SC LC-ST SC-SC SC-LT ST-ST |
Number of plugs | >1000 times |
Tensile strength | ≥200N |
Bending radius | >3.8cm |
Light decay | <0.1dB |
Repeatability | Less than 0.2dB |
Exchangeability | Less than 0.1dB |
Length | 3M or Customized |
Wavelength | 1310nm or 1550nm |
Fiber | 10G OM3 |
10G OM4 | |
Connector | LC,FC,SC,ST |
Insertion Loss | Less than 0.3dB |
Return Loss | UPC ≥ 50dB |
SPC ≥ 55dB | |
APC ≥ 60dB (typ.65dB) | |
Cable | Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Certifications
Exhibition
Customer feedback
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
