Home > Products > New Arrival > FTTH sm 9/125 scapc 3.5m auqa optic jumper 1.6mm 2.0mm 3.0mm G657A2 white sc simplex fiber patch cord

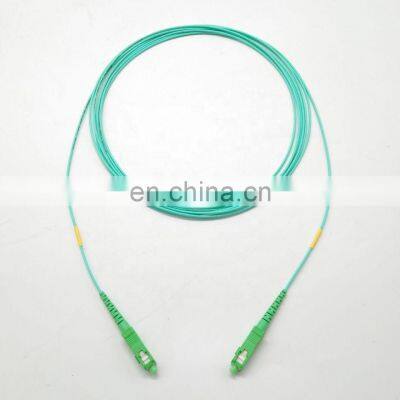

FTTH sm 9/125 scapc 3.5m auqa optic jumper 1.6mm 2.0mm 3.0mm G657A2 white sc simplex fiber patch cord
- 1000 per Month
- T/T Credit Card
You May Like
-
aqua scapc 1.6mm 2mm 3mm sm simplex optic fiber cable sc 3.5m 1.5m G657A2 lszh fiber optic patch cord
-
1.6mm 3.5m sm simplex optic fiber patch cord aqua color sc apc G657A2 cordon de raccordement fibre optique
-
indoor sc apc sm sx 1.6mm patch cord fibra optica patch cable jumper sc 3.5m optical fiber patch cord
-
FTTH fiber optic cable tools kit optical fiber cleaver VFL Termination toolkit optic cleaner pen stripper power meter
-
FTTH Indoor/Outdoor 3mm 4.5mm 6mm Fiber Aerial Duct Drop Cable Double Sheathed Optical Drop Cable
-
indoor outdoor ftth subscriber round size 4.5mm 6.0mm double sheathed 500m single mode G657a2 drop fiber cable 1 2 4core
Product Description
FTTH sm 9/125 scapc 3.5m auqa optic jumper 1.6mm 2.0mm 3.0mm G657A2 white sc simplex fiber patch cord
A ptachcords can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. The range of high performance SC, FC, ST, LC, MTRJ, MU, fiber optic cables come in any combination, including angled (angle polished) SCA, MUA, FCA, STA, LCA, MPO Angled. We offer a range of Flammability options, PVC and LSZH. Features include, low insertion loss and outstanding return loss performance. All cables are available in 1.8mm or 2.8mm duplex and 4.8mm round.
Optical Feature:
| Content | Testing Condition | (dB) | ||||
| SM | MM | |||||
| APC | UPC | PC | ||||
| Optical Performance | IL(dB) | 1310/1550nm LD Light | 0.2 | 0.2 | 0.2 | 0.2 |
| RL(dB) | 1310/1550nm LD Light | 65 | 55 | 50 | 35 | |
|
Environment Performance |
High Temperature | +85℃,168H | 0.2 | |||
| Temperature cycle | -40~+75℃,21cycle,168H | 0.2 | ||||
| Humidity thermal(Fixed) | 5℃,95%R.H.,168H | 0.2 | ||||
| Humidity thermal cycle | 10~+65℃,95%R.H.,21 cycle,168H | 0.2 | ||||
| Mechanical Performance | Vibration | 10~55Hz,1.5mm(p-p) | 0.1 | |||
| Bending | 0.9kgf,-90°~+90°,100cycle | 0.1 | ||||
| Torsion | 2.5kgf,10times/min,±180°,200times | 0.1n | ||||
| Anti-tension | 90N,10min | 0.1 | ||||
| Dropping | 1.5 height, 8 times | 0.2 | ||||
| Repeat | 10 Times inserts | 0.1 | ||||
| Durability | >1000times | 0.2 | ||||
