Product Description

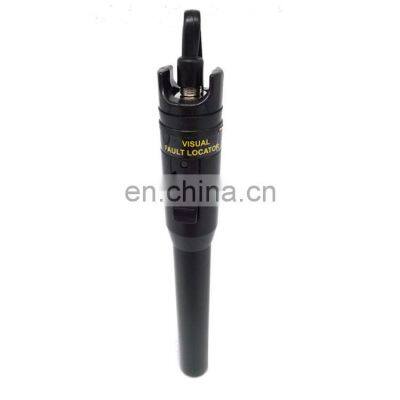

pen-type 10mw 30mw 50mw 20km 50km fiber optic cable tester visul fault locator vfl
Description:
VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network.
It includes: Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification
Specifications:
|
Wavelength |
650nm±10nm |
|
Light source |
FP-LD laser |
|
Output power |
1mw,10mw,20mw,25mW,30mW (optional) |
|
Connector |
2.5mm universal adapter |
|
Working mode |
CW or 2Hz modulation |
|
Operating temperature |
0~+60 °C |
|
Storage temperature |
-25~+70 °C |
|
Power |
2pcs AA battery |
|
Working hours |
≥10 |
|
Weight |
160g |
|
Dimension (mm) |
175*26*26 |
