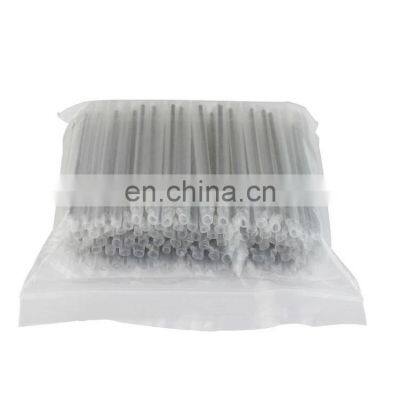

100pcs Per Bag Fiber Optic Splicing Protection Sleeve 40mm 60mm Protector Heat Shrink Tube For Fusion Splice
- T/T Credit Card
You May Like
-
Fiber optic drop wire cable dead end span 100M tension adss suspension clamp
-
fiber optic polishing paper 30um 9um 0.05um color diamond 127mm lapping polishing film
-
100 PCS Per Bag 40mm 60mm Heat Shrink Tube Fusion Splice Protector Splicing Protective Sleeve
-
china cheap smart micro fiber optic ftth sm mm 1310 1490 1550 1625 gpon agilent mini otdr
-
pen-type 10mw 30mw 50mw 20km 50km fiber optic cable tester visul fault locator vfl
-
handheld fiber optical opm light source mini laser pon power meter
Product Description
100pcs Per Bag Fiber Optic Splicing Protection Sleeve 40mm 60mm Protector Heat Shrink Tube For Fusion Splice
Constrcture and Features:
1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties.
2. Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.
3. Easily use and avoid any damages to the oprical fiber during installation.
4. Sealing structure provides good performanc e to the splicing in the environment with temperature and humidity.
5. Bellcore GR-1380 Compliant
6. RoHS & REACH Compliant
Operating Temperature : -50 - 100°C Shrink Temperature: 90 - 110°C
Technical Data:
| Property | Method of Test | Parameter |
| Tensile Strength(MPa) | ASTM D 2671 | 18 |
| Elongation at Break(%) | ASTM D 2671 | 700 |
| Density(g/cm2) | ISO R1183D | 0.94 |
| Dielectric(kv/m) | IEC 243 | 20 |
| Dielectric Constant | IEC 243 | 2.5 |
| Longitudinal Shrinkage | ASTM D 2671 |
±5 |
Single Fiber Series:
| Part No. | Steel Rod | Fusion Tube | Heat Shrink Tube | Device |
| O.D.*Length | I.D.*Length | Length | O.D. (after shrink) *Length | |
| 60200501 | 0.5*20mm | 0.5*20 mm | 20mm | 1.5*20mm |
| 60250501 | 0.5*25mm | 0.5*25mm | 25mm | 1.6*25mm |
| 60260501 | 0.5*26mm | 0.5*25 mm | 25mm | 1.5*26mm |
| 60300501 | 0.5*30mm | 0.5*30 mm | 30mm | 1.6*30 mm |
| 60301201 | 1.2*30mm | 1.3*30 mm | 30mm | 2.5*30 mm |
| 60350501 | 0.5*35 mm | 0.5*35 mm | 35mm | 1.6*35 mm |
| 60350701 | 0.7*35 mm | 1.3*34 mm | 35mm | 2.3*35 mm |
| 60400801 | 0.8*40 mm | 1.3*40 mm | 40mm | 2.2*40 mm |
| 60401001 | 1.0*36 mm | 1.4*40 mm | 40mm | 2.4*40 mm |
| 60401201 | 1.2*40 mm | 1.1*40 mm | 40mm | 2.5*40 mm |
| 60401202 | 1.2*35 mm | 1.1*40 mm | 40mm | 2.5*40 mm |
| 60451201 | 1.2*45 mm | 1.3*45 mm | 45mm | 2.5*45 mm |
| 60611001 | 1.0*57 mm | 1.4*61 mm | 61mm | 2.4*61 mm |
| 60611201 | 1.2*56 mm | 1.3*61 mm | 61mm | 2.5*61 mm |
| 60611501 | 1.5*56 mm | 1.3*61 mm | 61mm | 2.9*61 mm |
