Product Description

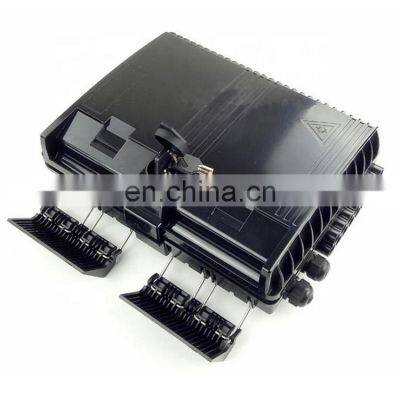

waterproof optical termination box 16 core 16 fiber indoor outdoor ftth fiber terminal box
Product Description
FAT-16B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
FEATURES
- Water-proof design with IP-66 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1*16 Splitter can be installed as an option.
- Efficient cable management.
- 16 ports cable entrance for drop cable.
|
Material
|
Size
|
Max Capacity
|
Installation
size
|
Weight
|
Color
|
|
|
PC+ABS
|
265*130*40mm |
SC
16 Ports
|
PLC
1x16(SC)
|
D*E(mm)
145*82
|
1.5KG |
White/Black
|
STANDARD ACCESSORIES:
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,hose clamp, rubber steal for cable entrance.
OPTIONAL ACCESSORIES
Pole ring, Extra lock and key
