Cheap Price 50km Measurement Length 9 in 1 Multifunctional MINI OTDR
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
waterproof optical termination box 16 core 16 fiber indoor outdoor ftth fiber terminal box
-
High Quality 144 Core Heat Shrinkable Sealing Joint Closure Dome fiber optic closure
-
600*600*1200 outdoor fiber optical cabinet 144core -720core
-
Plastic FTTH Drop Cable Anchoring Clamp S type FTTH Anchor
-
Promotion 2 pairs Fiber cable suspension clamp cable clamp for aerial fiber cable
-
3302F 1310/1550nm Optical Time Domain Reflector SM OTDR
Product Description
Product Description

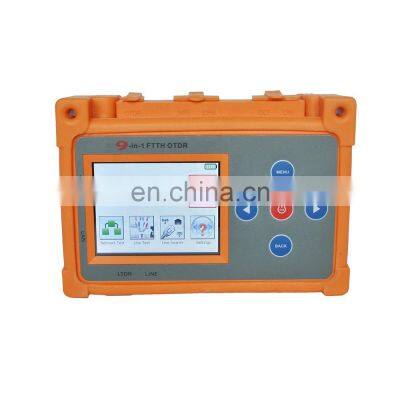

9-in-1 FTTH OTDR is an integrated multi-functional instrument 9excellent inbuilt functions.
* OTDR - full function OTDR that also allows active fiber testing;
* LTDR - can test copper wires&networks cables, measure the length, breaking point, short
circuit point and impedance mis-match point, etc;
* OPM - to check optical signal level;
* PON power meter- can check OLT/ONU, very useful for internet service providers;
* VFL - check fiber faults visually;
* Network test- no need of laptop to check internet speed(max 1000M) & LAN health;
* Link test- can test PING to the router/gateway;
*Line test- measure the loop resistance&unbalance resistance to judge the condition of
copper wires and network cables, test the line sequence;
*Setting Help.
|
Function
|
Parameter
|
|
|
Optical power meter
|
Wavelength range(nm)
|
800~1600 |
| Probe type | InGaAs | |
| Power measurement(dBm) | -70~+6(-50~+25
Broadcasting)
|
|
| Uncertainty | Uncertainty | |
| Display resolution | 0.1dBm | |
| Fiber category | Single mode | |
| Connector | SC | |
| PON Power meter | Wavelength range(nm) | 1277-1310nm |
| Measurement range | -30~+6dbm | |
| Insert loss | Less than 1dB | |
| Uncertainty value | ±1dBm | |
| VFL |
Operation Wavelength(nm)
|
650nm |
| Light emitting device | FP-LD | |
| Output power(mw) | 5mw | |
| Modulation | 0HZ,1HZ,2HZ | |
| Fiber category | Fiber category | |
| Connector | SC | |
|
Network test
|
Download speed | 1000M |
|
Ping test
|
6 groups or setting
|
|
|
Pppoedail
|
6 groups or setting
|
|
|
DHCP detect
|
Display IP and gateway
|
|
|
WEB test
|
Display WEB interface
|
|
|
Line test
|
4 groups loop resistance
|
1-8000Ω
|
|
4 groups unbalanced resistance
|
1-1000Ω
|
|
|
Uncertainty
|
5%
|
|
|
Line search
|
Audio Hunt
|
800/1600HZ-10vpp
|
|
Ultra audio hunt
|
400khz
modulation800/1600HZ-10vpp
|
|
|
OTDR
|
Laser tube
|
LD
|
|
Detecting diode
|
APD
|
|
|
Measurement resolution
|
0.6m
|
|
|
Event dead zone
|
15m
|
|
|
Attenuation dead zone
|
20m
|
|
|
Test pulse width
|
10,30,100,300ns,1,3us
|
|
| Scattering depth | 12dB | |
| Measurement length(Event) | 50km | |
| Measurement
length(Attenuation)
|
30km | |
|
LTDR
|
Measuring length | 5-2000m |
|
Test the pulse amplitude
|
10v
|
|
|
Test pulse with
|
10,30,100,300ns,1,3us
|
|
| Measurement resolution | 0.6m | |
|
Others
|
Power supply | Lithium/4000MAH |
| Power adaptor | MicroUSb5V/1000mA | |
|
Single-phase maximum current
|
≤ 200mA
|
|
|
Standby power
|
≤2uA
|
|
|
Battery operating time
|
≥10H
|
|
|
Auto-off time(min)
|
Adjustable | |
| Working temperature(℃) | -10~+50 | |
| Storage temperature(℃) | -25~+70 | |
Packing List:
|
Main body
|
1pc
|
|
Line searcher
|
1pc
|
|
Alligator clip test leads
|
1pc
|
|
Aluminum case
|
1pc
|
|
User manual
|
1book
|
