10 in 1 FTTH Assembly Optical Fiber Tool Kits FC-6S Cable Stripper Power Meter Fiber Equipment Tool kits ftth cable stripper

FTTH Tools Kit

FC-6S

Model: FC-6S
Applicable fibers Singlemode or Multimode Use
Fiber Diameter 125um
Coating Diameter 250um ~ 900um
Typical Cleave Angle 0.5 Degrees
Cleave Length 9 - 16mm (Single Fiber - 0.25mm Coating)
10 - 16mm (Single Fiber - 0.9mm Coating)
Blade Life Time 36,000 cleaves (3,000 per blade position)
Cleaver Dimensions 63 x 65 x 63mm
Weight 500g

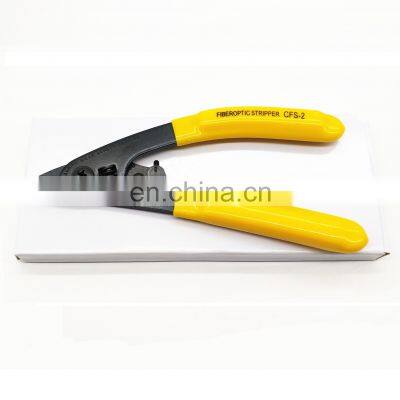

CFS-2

1.0mm diameter stripping hole at the tip of tool that can be used to strip the fiber jacket
140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
Lock to hold tool closed when it is not in use
Will not scratch or nick glass fiber
Pre-set at the factory-no adjustments needed
Comfort grip, ergonomic handles

FTTH Drop Cable Stripper

- Tool for FTTH flat drop optical cable

- Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.

- Simple jacket removing without fiber damaging

- Made of zinc alloy steel with PVC non-slip handle.

- Improve cable splicing, more efficient and easy to use.

- Lightweight and compact.

Fiber Optical Power Meter

Calibration Wavelength (nm):850,1300, 1310,1490,1550,1625
Measurement Range(dBm):-70~+3
Resolution (dB):0.01
Uncertainty (dB):±0.5
Linearity (dB):±0.1
Frequency Identification Range:<10K
Connector:FC/SC/ST
Wavelength (nm):1310/1550(optional others)/1490
Operating Temperature(℃):-10+60
Storage Temperature(℃):-25~+70
Power supply:3 double-A 1.5V dry batteries

Visual Fault Locator

* Easy to check fiber faults with visual red laser light

* Universally connector for test different ST,SC,FC interfaces

* Test for both single-mode and multi-mode cables with optional 2.5mm fiber optic(Standard) connectors to 1.25mm adapter(Optional)

* High effective power circuits allow for stable laser power

* Operates in both CW(Continuous wave) and pulse mode

* Dust-proof design keep fiber connectors clean

* Providing 15 hours of stable continuous operation

* Output power: 10mW

* Spectral width: 650+/-10nm

* Range: visibility up to 10km

* Operatiing temperature: -10 to +70C

* Store temperature: -40 to +85C

* Length: 6.3in(160mm)

* Weight: 170g(excluding batteries)

* Connector: 2.5mm universal adapter

Fiber Optic Kevlar Cutter

* Telecommunication System

* Testing Equipment

* CATV System

* Long-haul Telecommunication

* LAN System

• Blades made of high carbon alloy steel with vanadium and molybdenum FHRC60-62,cutting adge hardness FHV1200

• Handles made of thermo plastic elastomer

• Exteded tang for durability

• Serrated blade for gripping materials

• Specially designed for cutting kevlar materials

Package include:

1 x Fiber Tool Kits Bag
1 x FC-6S Fiber Optical Cleaver
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Fiber Optic Kevlar Cutter
1 x Alcohol Bottle
1 x Screwdriver
1 x Cotton Swab
20pcs x Protection Tube
