hand held FIber Microscope microscopes optical fiber scope microscopes

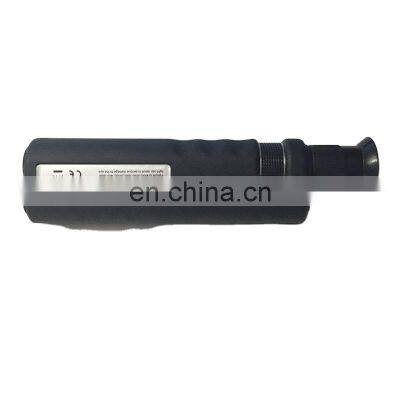

The CL-Series Hand Held Fiber Microscope utilize a white LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. For critical examination of polish quality. We strongly recommend the CL-Series Hand Held Fiber Microscope.

Specifications:

Optical Magnification: 100X,160X, 200X, 320X, 400X

Power Requirements: 3 “AAA” alkaline batteries

LED:Rated life: 10000hrs

Weight: 0.6kg

Size: 225mm/8.76 “Length x 32mm/1.25” Diameter

Controls: Momentary on/off switch; Fine-Focus control

Laser Safety Filter: Built-in

Adapter interface: Use interchangeable, presented universal or dedicated adapters.

Cat.No.     Description

Operation Step:

Step 1. Input the Fiber which will be checked into the Fiber Insert Entrance, insert another fiber connector into the light source entrance.

Step 2. See from the eyepiece and press on the on/off LED switch(Illumination)

Step 3. Adjust the focus control. just to find the clearest viewing.

Guarantee Terms:

All products from company are warranted to be free of all defects in material and workmanship for a period of 12 months from the date of delivery. The warranty does not apply to any instrument which has become worn, defective, damage or broken due to abuse, miuse, tampering or unauthorized repair. Under this warranty, we will repair or replace, without charge to the purchaser, any part of which upon our examination appears to be defective in material or workmanship.

How to choose between the CL-Series and the OL-Series ?

Both series of our Hand Held Fiber Microscope provide excellent views of the ferrule end face. We recommend 400x magnification foe single-mode and 200x magnification for muti-mode:

(1)if you frequantly termiate fiber and have received professional training, you are probably best served our CL-Series Microscope.

(2)If you only occasionally termiate fiber, and are unsure, you might consider the OL-Series.
