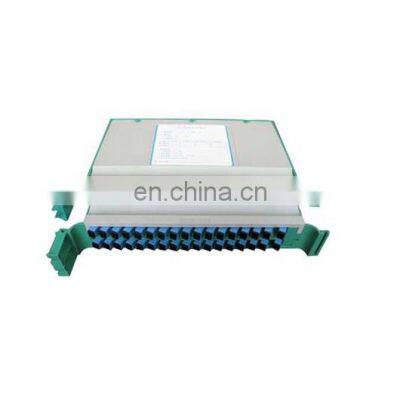

plc optical splitter tray assembly type
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
1/99 2/98 3/97 5/95 10/90 20/80 30/70 40/60 50/50 fiber FBT splitter FBT Coupler
-
support customization ervice 1x8 LGX box type PLC Optical Splitter with sc fiber adapter for ftth
-
1x2 1260~1650nm wavelength lgx box plc fiber optical splitter with sc/upc or sc/apc adapter
-
1x8 SC UPC/APC Mini Fiber PLC Splitter Single Mode With SC Connectors FTTH Optical Mini-module PLC Splitter
-
1x32 SC UPC/APC Mini Fiber PLC Splitter Single Mode With SC Connectors FTTH Optical Mini-module PLC Splitter
-
1x4 SC UPC/APC LGX Box Fiber PLC Splitter Single Mode LGX Module Optical PLC Splitter
Product Description
Product Description
Detailed Images
Parameter | Unit | 1X2 | 1X4 | 1X8 | 1x16 | 1X32 | 1x64 | |||||||||
Fiber Type | / | G.657A1, or customized | ||||||||||||||
Operating Wavelength | nm | 1260~1650 | ||||||||||||||
Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 | |||||||
S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | ||||||||
PDL | Max | dB | 0.2 | 0.3 | 0.5 | |||||||||||
Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | ||||||||
Return Loss | Min | dB | 55 | |||||||||||||
Directivety | Min | dB | 55 | |||||||||||||
Operating Temeperature | ℃ | -40~+80 | ||||||||||||||
Storage Temperature | ℃ | -40~+80 | ||||||||||||||
Dimension (LxMxH) | mm | 345x195x25 | 345x195x50 | |||||||||||||
Parameter | Unit | 1X2 | 1X4 | 1X8 | 1x16 | 1X32 | 1x64 | |||||||||
Fiber Type | / | G.657A1, or customized | ||||||||||||||
Operating Wavelength | nm | 1260~1650 | ||||||||||||||
Insertion Loss | P | Max | dB | 4.0 | 7.3 | 10.6 | 13.9 | 17.2 | 20.8 | |||||||
S | Max | dB | 4.2 | 7.5 | 11.0 | 14.5 | 17.5 | 21.0 | ||||||||
PDL | Max | dB | 0.2 | 0.3 | 0.5 | |||||||||||
Loss Uniformity | Max | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||||||
Return Loss | Min | dB | 55 | |||||||||||||
Directivety | Min | dB | 55 | |||||||||||||
Operating Temeperature | ℃ | -40~+80 | ||||||||||||||
Storage Temperature | ℃ | -40~+80 | ||||||||||||||
Dimension (LxMxH) | mm | 345x195x25 | 345x195x50 | |||||||||||||
Packing & Delivery
PLC splitter packed in a separate paper box
the separate paper box packed in a proper paper carton
Company Profile
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
