Home > Products > PLC splitter > sc/upc sc/apc lgx box type 1x2 1x4 1x16 1x32 1x64 Mini PLC Optical Splitter

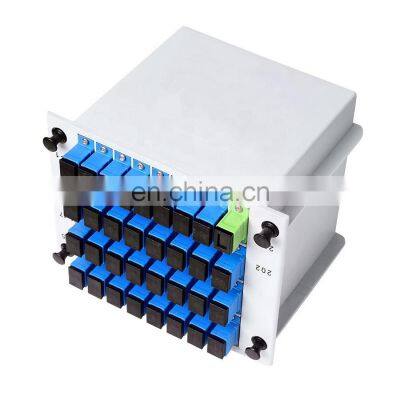

sc/upc sc/apc lgx box type 1x2 1x4 1x16 1x32 1x64 Mini PLC Optical Splitter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Fiber Optic PLC LGX Box Splitter 1x8 1*8 SC/UPC SC/APC LGX box low insertion loss high return loss PLC Optical Splitter
-
support customization plc splitter abs box 1x2 1x4 1x8 in fiber opti equipment
-
plc optical splitter 1U 2U 3U 19' rack-mounted low insertion loss high return loss low PDL Fiber Optic PLC Splitter
-
plc optical splitter tray assembly type
-
1/99 2/98 3/97 5/95 10/90 20/80 30/70 40/60 50/50 fiber FBT splitter FBT Coupler
-
support customization ervice 1x8 LGX box type PLC Optical Splitter with sc fiber adapter for ftth
Product Description
Product Description
Detailed Images
Parameter | Unit | 1X2 | 1X4 | 1X8 | 1x16 | 1X32 | 1x64 | |||||||||
Fiber Type | / | G.657A1, or customized | ||||||||||||||
Operating Wavelength | nm | 1260~1650 | ||||||||||||||
Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 | |||||||
S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | ||||||||
PDL | Max | dB | 0.2 | 0.3 | 0.5 | |||||||||||
Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | ||||||||
Return Loss | Min | dB | 55 | |||||||||||||
Directivety | Min | dB | 55 | |||||||||||||
Operating Temeperature | ℃ | -40~+80 | ||||||||||||||
Storage Temperature | ℃ | -40~+80 | ||||||||||||||
Dimension (LxMxH) | mm | 130x100x25 | 130x100x50 | 130x100x102 | 130x100x206 | |||||||||||
Parameter | Unit | 1X2 | 1X4 | 1X8 | 1x16 | 1X32 | 1x64 | |||||||||
Fiber Type | / | G.657A1, or customized | ||||||||||||||
Operating Wavelength | nm | 1260~1650 | ||||||||||||||
Insertion Loss | P | Max | dB | 4.0 | 7.3 | 10.6 | 13.9 | 17.2 | 20.8 | |||||||
S | Max | dB | 4.2 | 7.5 | 11.0 | 14.5 | 17.5 | 21.0 | ||||||||
PDL | Max | dB | 0.2 | 0.3 | 0.5 | |||||||||||
Loss Uniformity | Max | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||||||
Return Loss | Min | dB | 55 | |||||||||||||
Directivety | Min | dB | 55 | |||||||||||||
Operating Temeperature | ℃ | -40~+80 | ||||||||||||||
Storage Temperature | ℃ | -40~+80 | ||||||||||||||
Dimension (LxMxH) | mm | 130x100x25 | 130x100x50 | 130x100x102 | 130x100x206 | |||||||||||
Packing & Delivery
small paper box with foam
small paper box for separate plc
small separate boxes pack in paper cartons
Company Profile
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
