Home > Products > Fiber Optic Patch cord > 3meters 2.0mm LC APC Simplex Single Mode G652D APC Patch Cord Fiber Patch Cords Patch Cord Lc-lc

3meters 2.0mm LC APC Simplex Single Mode G652D APC Patch Cord Fiber Patch Cords Patch Cord Lc-lc

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Connector	SC,LC,FC,ST
Connector		UPC(SM)	APC(SM)	UPC(MM)
Insertion Loss(dB)	≤0.2
Return Loss (dB)	≥50	≥60	≥35
Cable Diameter (mm)	2.0mm, 3.0mm
Durability(dB)	1000matings, <0.3
Interchangeability (dB)	<0.2
Operating temperature (℃)	-40~+85

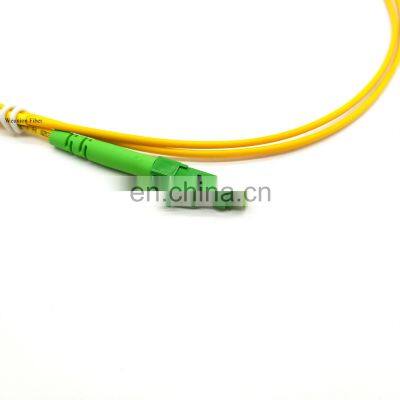

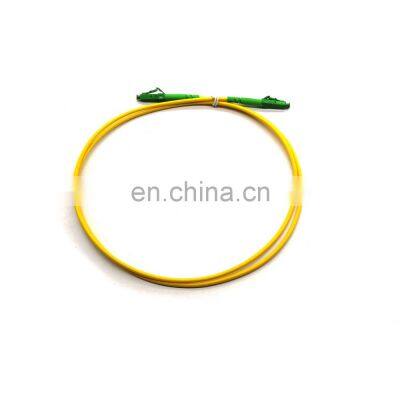

Patch cord LC-LC

Features:
Low insertion loss, high return loss, Good repeatability and interchange ability, Simplex and duplex for option, UPC and APC type
a available
Applications:
LAN, WAN, and access system
Fiber CATV and fiber network system

Details Images

G.652D, G.657A, G.657B3 fiber 2.0mm 3.0mm cable

LSZH PVC jacket U L RoHs, CPR standard

ceramic ferrule small concentricity

IL <0.2dB
RL> 60dB
100% tested

ceramic ferrule small concentricity
100% tested

Product Usage

Fiber patch cords are used to make patch cords from the device to the fiber optic cabling link. There is a thick protective layer,
which is generally used in the connection between the optical transceiver and the terminal box, and is applied in some fields such as a fiber-optic communication system, a fiber access network, an optical fiber data transmission, and a local area network.

1.FC type optical fiber patch cord: The external reinforcement method is a metal sleeve, and the fastening method is a turnbuckle.Generally used on the ODF side (the most used on the patch panel)

2.SC type fiber patch cord: The connector that connects the GBIC optical module. Its outer casing is rectangular, and the
fastening method is plug-and-pull type without rotating. (most used on router switches)
3.ST type fiber patch cord: commonly used in fiber distribution frame, the outer casing is round and the fastening method is screw
buckle. (For 10Base-F connections, the connector is usually ST type. Commonly used for fiber distribution frames)
4.LC Fiber Patch Cable: A connector that connects to an SFP module. It is made with a convenient modular jack (RJ) latch
mechanism. (used by routers)

Related Products

Packing&Shipping

1, patch cord lc-lc is packed 1psc per PE bag, and the test result stick in the package bag, 2, certain pcs patch cord lc-lc packed in a standard paper carton, carton size is 40*40*40cm, the qty of each carton is based on the patch cord diameter and patch cord length. 3, the paper cartons could packed 27 or 36 cartons per pallets. 4, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.

Company Introduction

Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, and Asia. Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTX solutions. WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.

FAQ

Q1: When can I get the quotation back? A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones. Q2:How about the cable's quality ? A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products. Q3: How do l assure that you are a reliable supplier? A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time. Q4: Could the OEM be accepted and what's the MOQ? A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
