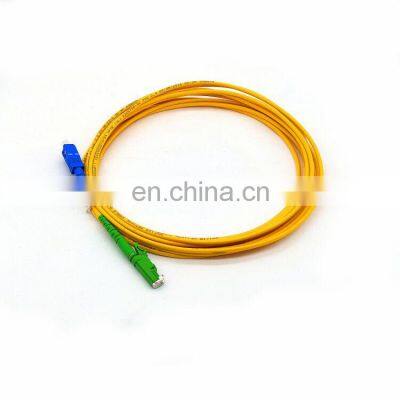

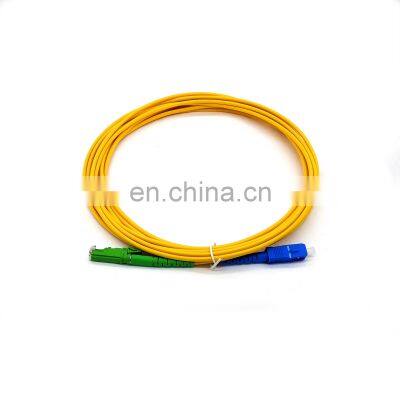

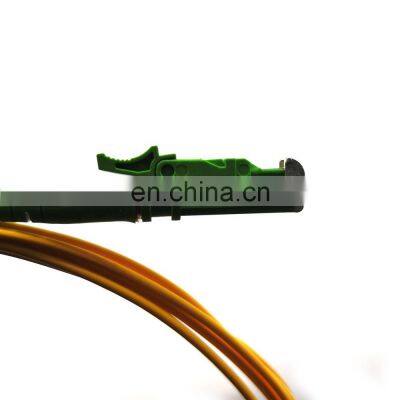

E2000 Simplex Single Mode G652D Fiber Optic Patch Cord Fiber Jumper Sc/upc-e2000/apc Patch Cord

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Connector	e2000
Connector		APC(SM)
Insertion Loss(dB)	≤0.2
Return Loss (dB)	≥60
Cable Diameter (mm)	2.0mm, 3.0mm
Durability(dB)	1000matings, <0.3
Interchangeability (dB)	<0.2
Operating temperature (℃)	-40~+85

sc/upc-e2000/apc patch cord

Use:FTTH
Product name:sc/upc-e2000/apc patch cord
Connector:e2000-SC
Cable type:Simplex/Duplex
Fiber Type:Single-mode G652D
Color:Yellow
Jacket:LSZH, PVC
Application:Telecom Comunication
Package:Plastic Bag
Length:1M/2M/3M...customize

Details Images

Features:

Low insertion loss, high return loss, Good repeatability and interchange ability, Simplex and duplex for option, UPC and APC type a available

Applications:

LAN, WAN, and access system

Fiber CATV and fiber network system

Product Usage

Fiber patch cords are used to make patch cords from the device to the fiber optic cabling link. There is a thick protective layer, which is generally used in the connection between the optical transceiver and the terminal box, and is applied in some fields such as a fiber-optic communication system, a fiber access network, an optical fiber data transmission, and a local area network.

1.FC type optical fiber patch cord: The external reinforcement method is a metal sleeve, and the fastening method is a turnbuckle.
Generally used on the ODF side (the most used on the patch panel)

2.SC type fiber patch cord: The connector that connects the GBIC optical module. Its outer casing is rectangular, and the fastening method is plug-and-pull type without rotating. (most used on router switches)

3.ST type fiber patch cord: commonly used in fiber distribution frame, the outer casing is round and the fastening method is screw buckle. (For 10Base-F connections, the connector is usually ST type. Commonly used for fiber distribution frames)

4.LC Fiber Patch Cable: A connector that connects to an SFP module. It is made with a convenient modular jack (RJ) latch mechanism. (used by routers)

Related Products

Packing&Shipping

1, sc/upc-e2000/apc duplex is packed 1psc per PE bag, and the test result stick in the package bag, 2, certain pcs sc/upc-e2000/apc duplex packed in a standard paper carton, carton size is 40*40*40cm, the qty of each carton is based on the patch cord diameter and patch cord length. 3, the paper cartons could packed 27 or 36 cartons per pallets. 4, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.
