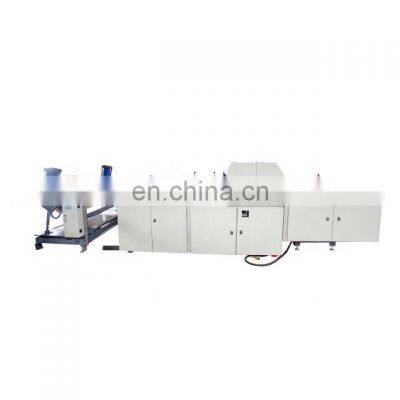

New Model Automatic Printed Paper Roll To Sheet Cutting Machine paper die-cutting machine

Feature:

This Machine suitable for different kinds 20-450gsm thickness reels paper,different kinds plastic film, main use for producing sheet from reels . So it is roll to sheet cutting machine.
This machine model special suitable for paper and plastic film counting the quantity then delivery to the table.

1) This Machine adopt Servo Motor (INVT,CHINA),PLC(Panasonic,Japan) Touch Screen (Weinview,Taiwan China)control system, auto counting quantity, auto stop when reached your set quantity , auto tension control and auto conveyor belt etc function.
2) Machine Standard Unwinding device adopt auto pneumatic loading system(Standard 3 inch air shaft), it can loading 1.2Ton roll weight.
Option : 3/6 inch shaft-less device, extra charge 3000USD difference .

3) Machine Conveyor device adopt newest technology to guarantee delivery thin paper quality and effect.
4) Paper cutting device adopt high precision and quality Germany cutting blade to guarantee durability and use life.
5)Option for Slitting blade, some customer want machine can producing Multi line, so machine have option for slitting big wide raw material then cut it to get Multi line product.
6)Option for printing sensor, some customer want to cutting exact printed material ,so we have option for Germany or USA brand printing sensor.
7) Machine has Three Motor (One Servo Motor to control cutting length, One Normal Motor to control cutting blade move, One Normal Motor to control material feeding)
