Product Description
Plate-Press Oil Filter Machine Transformer Oil Turbine Oil Engine Oil Diesel Aviation Hydraulic Oil Waste Oil Refining Machine
Product Description
Product Name :

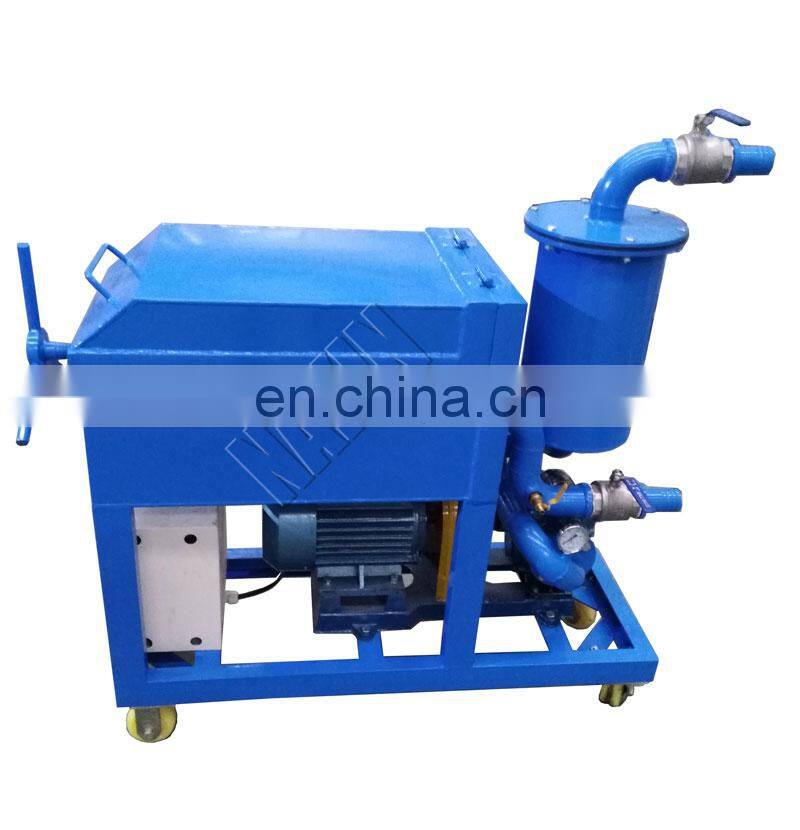

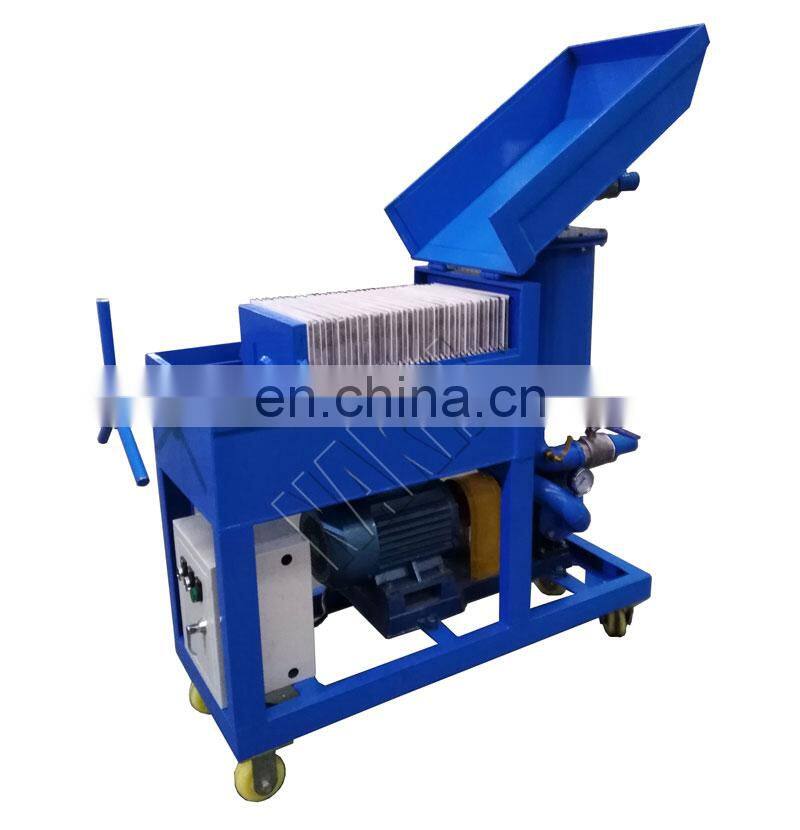

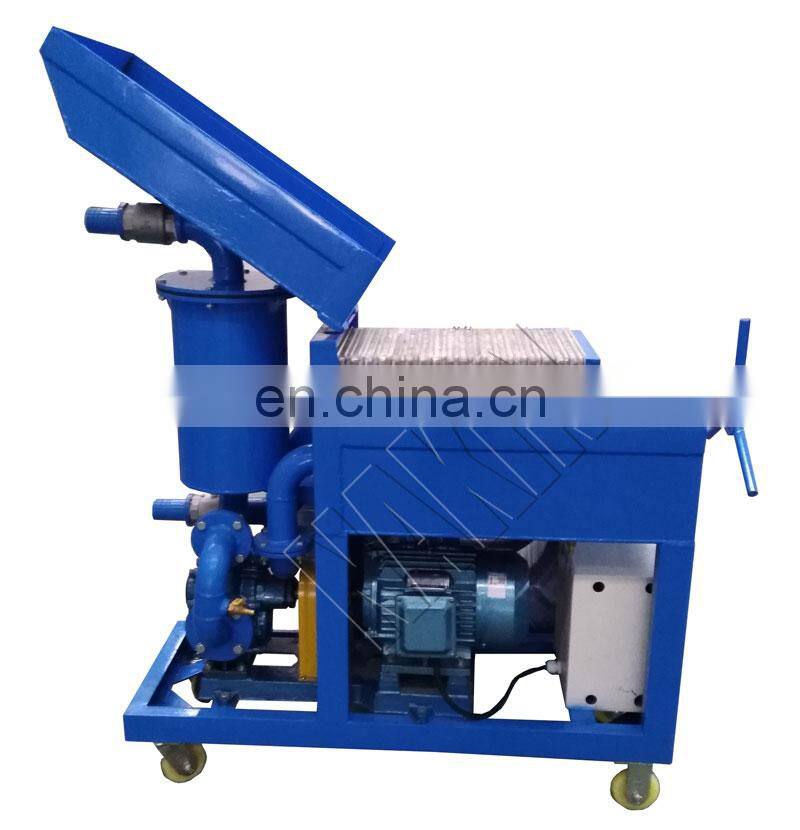

◆ LY Plate-Press Oil Purifier
Application:
◆ LY Plate-Press Oil Purifier uses the filter paper as the filtering media, it is mainly used to remove tiny water and impurities from oils, it can purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil, etc. Also it can be used as a vegetable oil purifier.

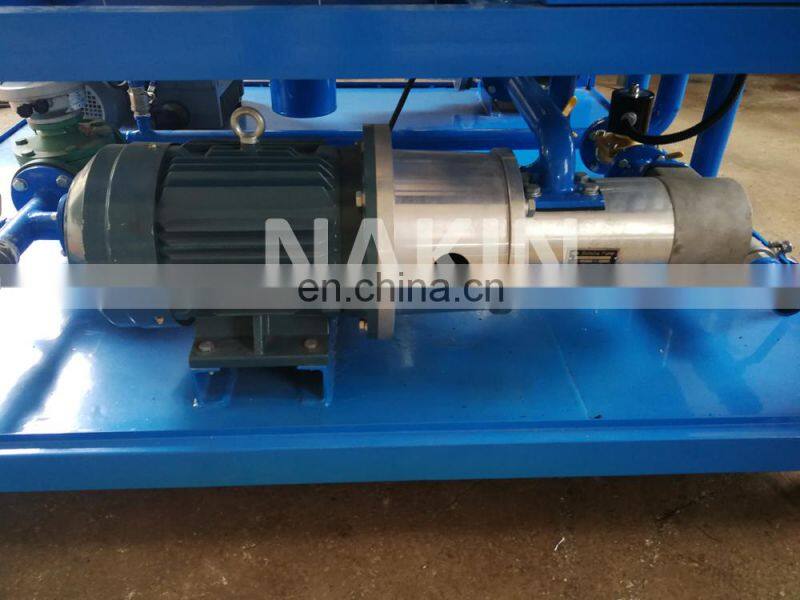

◆ The machine is composed of filter bed, oil pump and coarse filter. With industrial filter paper as the filter medium, different filter papers can be selected according to different filtering requirements, the filtering accuracy is high.
◆ It has the advantages of simple structure, easy operation and low running cost.
◆ Suitable for all kinds of lubrication purification and regeneration treatment in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.
Oil Index After Treatment
Index | Unit | LY30 | LY50 | LY100 | LY125 | LY150 | LY200 | LY300 | |||||||
Flow Rate | L/H | 1800 | 3000 | 6000 | 7500 | 9000 | 12000 | 18000 | |||||||
Working Pressure | MPa | 0-0.4 | |||||||||||||
Filtering Size | ≥ m 2 | 0.7 | 0.78 | 2 | 2.2 | 2.8 | 3 | 3.8 | |||||||
Plate Size | mm | 180×180 | 280×280 | ||||||||||||
Pressing Model | Manual Press | ||||||||||||||
Plate Quantity | 10 | 12 | 12 | 13 | 17 | 18 | 23 | ||||||||
Frame Quantity | 11 | 13 | 13 | 14 | 18 | 19 | 24 | ||||||||
Power | kw | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | ||||||||
Inlet/Outlet | mm | 25 | 32 | 40 | 40 | 50 | 50 | 65 | |||||||
Dimension | L (mm) | 900 | 900 | 1100 | 1100 | 1150 | 1300 | 1300 | |||||||
W (mm) | 500 | 500 | 650 | 650 | 750 | 850 | 1050 | ||||||||
H (mm) | 850 | 850 | 1050 | 1050 | 1150 | 1150 | 1150 | ||||||||
Paper Size | mm | 185×185 | 285×285 | ||||||||||||
Weight | kg | 140 | 155 | 185 | 200 | 250 | 280 | 350 | |||||||
Filtering Particles | ≤ 1～3 μm | ||||||||||||||
Recommend Products
Company Profile
NAKIN Oil Purifiers:
NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.
Service Commitment：
CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD will always adhere to the business philosophy of “Responsible for product, Responsible for user, Responsible for sell”, keep the faith to create the national brand, keep innovation, keep improving and keep making the high quality oil purifier&oil filtration products with first-class after-service for getting the customer’s trust and love. Really building a new era in Brand-NAKIN with customers.

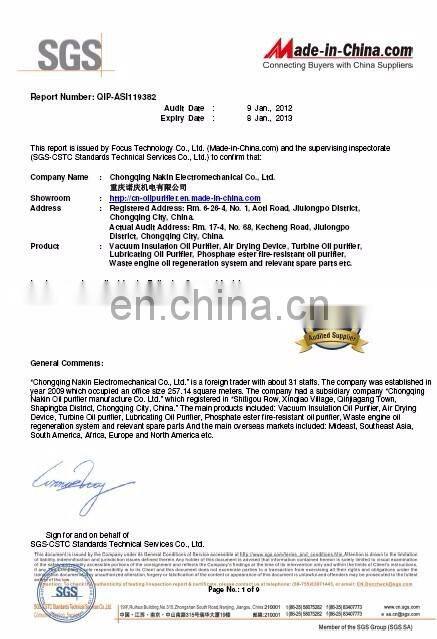

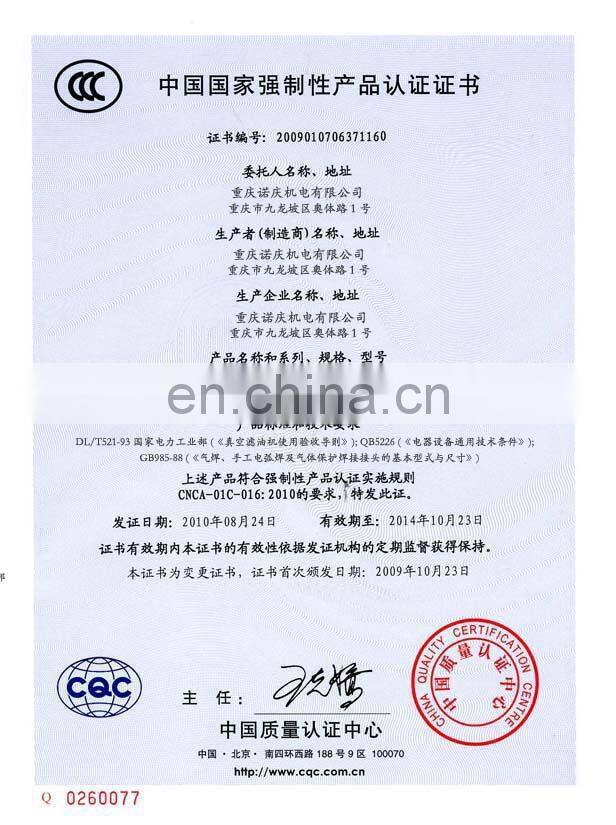

Certifications
Product packaging
FAQ
Q1. Can you please offer sample?
A: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.
Q2. What is your packing method?
A: Generally, our goods packed by wooden box.
Q3. What is your terms of payment?
A: Generally, we use T/T, 30% in advance, balance pay after the machine finish.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.
Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.
Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
