Paper Used Diesel Oil Purifier Mini Recycling Machine Oil Filtration Equipment Press Oil Purifier
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Filtering Accuracy Plate-Press Oil Purifier Aviation Hydraulic Oil
-
High Accuracy Filtering Machine Remove Tiny Water and Impurities Plate-Press Oil Purifier
-
Good Oil Purifier Price Hydraulic Oil Purifier/Transformer Oil Cleaning Plant/Filtration Equipment
-
Top Quality Used Transformer Oil Regeneration Purifier/Fuel Oil Filtration Equipment With Good Industrial Filter Paper
-
Cheap Price Fuel Oil Purifier /Used Lube Hydraulic Oil Recycling Plant With Good Quality
-
Multipurpose Plate-Press Oil Purifier/ Lubrication Purification And Regeneration Treatment Machine/Vegetable Oil Purifier
Product Description
Products Description

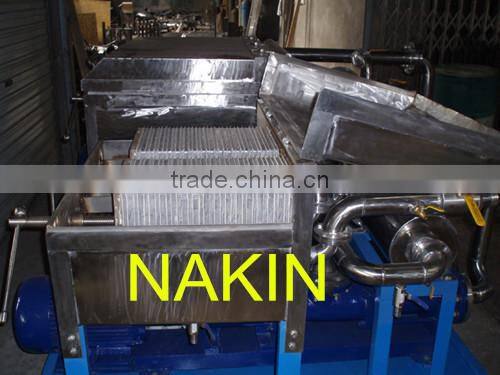

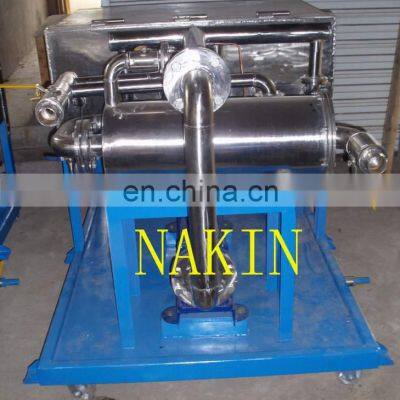

LY Plate-Press Oil Purifier uses the filter paper as the filtering media, it is mainly used to remove tiny water and impurities from oils, it can purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil, etc. Also it can be used as a vegetable oil purifier. The machine is composed of filter bed, oil pump and coarse filter. With industrial filter paper as the
filter medium, different filter papers can be selected according to different filtering requirements, the filtering accuracy is high. It has the advantages of simple structure, easy operation and low running cost. Suitable for all kinds of lubrication purification and regeneration treatment in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.
filter medium, different filter papers can be selected according to different filtering requirements, the filtering accuracy is high. It has the advantages of simple structure, easy operation and low running cost. Suitable for all kinds of lubrication purification and regeneration treatment in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.
Product Paramenters
Index | Unit | LY30 | LY50 | LY100 | LY125 | LY150 | LY200 | LY300 | |||||||
Flow Rate | L/H | 1800 | 3000 | 6000 | 7500 | 9000 | 12000 | 18000 | |||||||
Working Pressure | MPa | 0-0.4 | |||||||||||||
Filtering Size | ≥ m 2 | 0.7 | 0.78 | 2 | 2.2 | 2.8 | 3 | 3.8 | |||||||
Plate Size | mm | 180×180 | 280×280 | ||||||||||||
Pressing Model | Manual Press | ||||||||||||||
Plate Quantity | 10 | 12 | 12 | 13 | 17 | 18 | 23 | ||||||||
Frame Quantity | 11 | 13 | 13 | 14 | 18 | 19 | 24 | ||||||||
Power | kw | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | ||||||||
Inlet/Outlet | mm | 25 | 32 | 40 | 40 | 50 | 50 | 65 | |||||||
L | mm | 900 | 900 | 1100 | 1100 | 1150 | 1300 | 1300 | |||||||
W | mm | 500 | 500 | 650 | 650 | 750 | 850 | 1050 | |||||||
H | mm | 850 | 850 | 1050 | 1050 | 1150 | 1150 | 1150 | |||||||
Paper Size | mm | 185×185 | 285×285 | ||||||||||||
Weight | kg | 140 | 155 | 185 | 200 | 250 | 280 | 350 | |||||||
Filtering Particles | ≤ 1～3 μm | ||||||||||||||
Exhibition
Recommend Products
Our Service
Advanced Technology
Through learning and absorbing foreign advanced vacuum separation technology, combined with more than ten years of manufacturing and user experience, we have the ability to design various types of vacuum oil purifier.At the same time, the company has established long-term technical cooperation relationship with local colleges and universities, and also established long-term cooperation relationship with foreign counterparts, which has strong technical strength.
Reliable Quality
Company has passed ISO9001.2015 quality management system certification and CE European certificate. Our oil purifier machine only use the high quality parts, which is reliable quality and excellent performance. The company has complete testing instruments and testing equipment.
All products are strictly tested before leaving the factory to ensure that each product is qualified to leave the factory.
Strong Production Srength
The company has a 3,500-The company has a 3,500-square-meter production workshop. The production equipment includes machine tools, shears, plate rolling machines, bending machines, welding machines, sandblasting machines, cranes, spray booths, paint booths, and
other professional equipment. Many years of production experience forging It has a team of highly skilled workers that can deliver every piece of equipment efficiently and with high quality.
other professional equipment. Many years of production experience forging It has a team of highly skilled workers that can deliver every piece of equipment efficiently and with high quality.
Excellent After-Sales Service
Professional after-sales service team, after-sales personnel have many years of oil purifier expertise, including the electrical control part or the mechanical structure part, we can quickly and accurately solve the technical problems encountered by customers. Provide 24hours non-stop after-sales service. Solve user’s problems, providing the online technical support in any time and any place.
Company Profile
NAKIN Oil Purifiers:
NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto,
railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.
Service Commitment：
NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto,
railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.
Service Commitment：
CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD will always adhere to the business philosophy of “Responsible for product, Responsible for user, Responsible for sell”, keep the faith to create the national brand, keep innovation, keep improving and keep making the high quality oil purifier&oil filtration products with first-class after-service for getting the customer’s trust and love. Really building a new era in Brand-NAKIN with customers.
Packing & Delivery
Packaging | ||
Size | depend on the machine capacity | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | depend on the machine capacity | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Product Certificate
FAQ
Q1. Can you please offer sample?
A: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.
Q2. What is your packing method?
A: Generally, our goods packed by wooden box.
Q3. What is your terms of payment?
A: Generally, we use T/T, 30% in advance, balance pay after the machine finish.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.
Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.
Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
A: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.
Q2. What is your packing method?
A: Generally, our goods packed by wooden box.
Q3. What is your terms of payment?
A: Generally, we use T/T, 30% in advance, balance pay after the machine finish.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.
Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.
Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
