No Vacuum Negative Pressure Turbine Oil Purifier High Hydraulic Oil Cleaning Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hot Sale Trolley Style Machine Oil Purifier For Used Gasoline Oil Recycling
-
Pure Physical Oil Purification Machine Diesel Oil Recycling Mini Gasoline Oil Refinery Plant
-
Precision Filtration And Efficient Dehydration Motor And Car Oil Recycling Machine
-
Low Power And Low Running Cost Diesel Gasoline Oil Filtration Plant/Car Engine Oil Recycling
-
Light And Flexible Coalescing And Separating Oil Purifier For Used Gasoline Oil And Diesel Oil Recycling
-
Gasoline Oil Purifier/Diesel Oil Purifier With Strong Oil Purification Capacity And High Dehydration Efficiency
Product Description
Product Name:
No Vacuum Negative Pressure Turbine Oil Purifier High Hydraulic Oil Cleaning Machine
Product Description

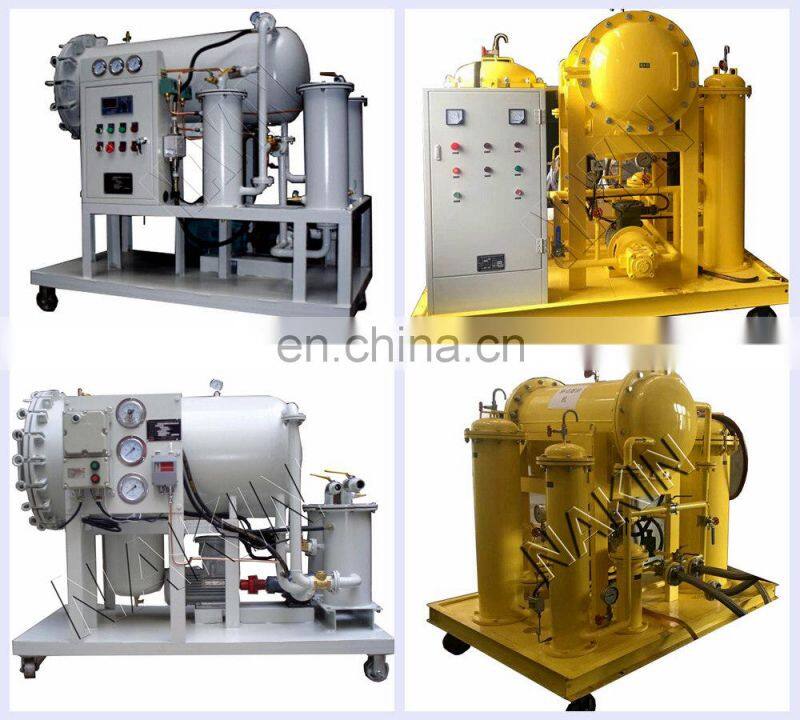

Product Images
Application
The TJ series coalescing and separating oil purifier uses advanced coalescing and separating materials as the filtering medium, which integrates emulsification and precision filtration. Combined with a special oil-water separation device, it can effectively separate the water in the oil, the dehydration efficiency is extremely high. It can perform on-line demulsification, dehydration, and impurity-removal of turbine oil for the operating steam turbine unit, and can also dehydrate and remove impurities of light oil with high water content. This machine does not need to heat and evacuate during operation, it is low energy consumption and low operating cost. The trolley structure is adopted, which is light and flexible and easy to use.
Features
◆ No heating, no vacuum negative pressure required, low power and low running cost.
◆ It integrates two functions of precision filtration and efficient dehydration.
◆ Continuous large flow treatment, strong purification capacity and high dehydration efficiency.
◆ Pure physical purification, does not change the physical and chemical properties of the oil, and prolongs the service life of the oil.
◆ It can drain water automatically, truly unattended.
Working Principle
The coalescing separator is mainly designed for liquid-liquid separation, and it contains two types of filter elements, namely, a coalescing filter element and a separating filter element.The oil flows into the coalescing separator, it first flows through the coalescing filter element. The coalescing filter element removes solid impurities and coalesces extremely small water droplets into larger water droplets. Most of the coalesced water droplets can be separated and removed from the oil by their own gravity and settled in the water collecting tank. The oil then flows through the separation filter element. Because the separation filter element has good lipophilic and hydrophobic properties, the water is further separated, and finally, clean, anhydrous oil flows out of the coalescing separator.
Oil Index After Treatment | ||||||||
Demulsification value | min | ≤15/min(GB/F7035) | ||||||
Water Content | ppm | ≤100 | ||||||
Cleanness | ≤NAS 6 | |||||||
Specification
Packing & Delivery

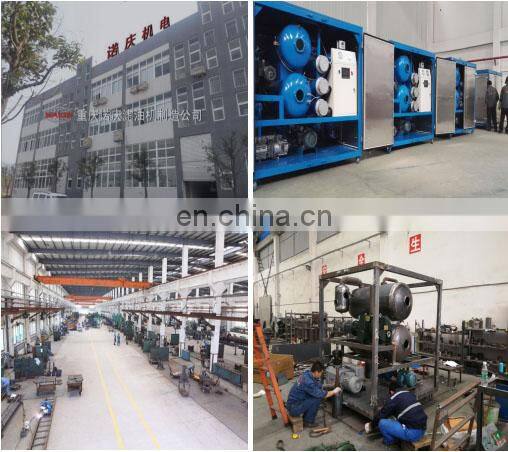

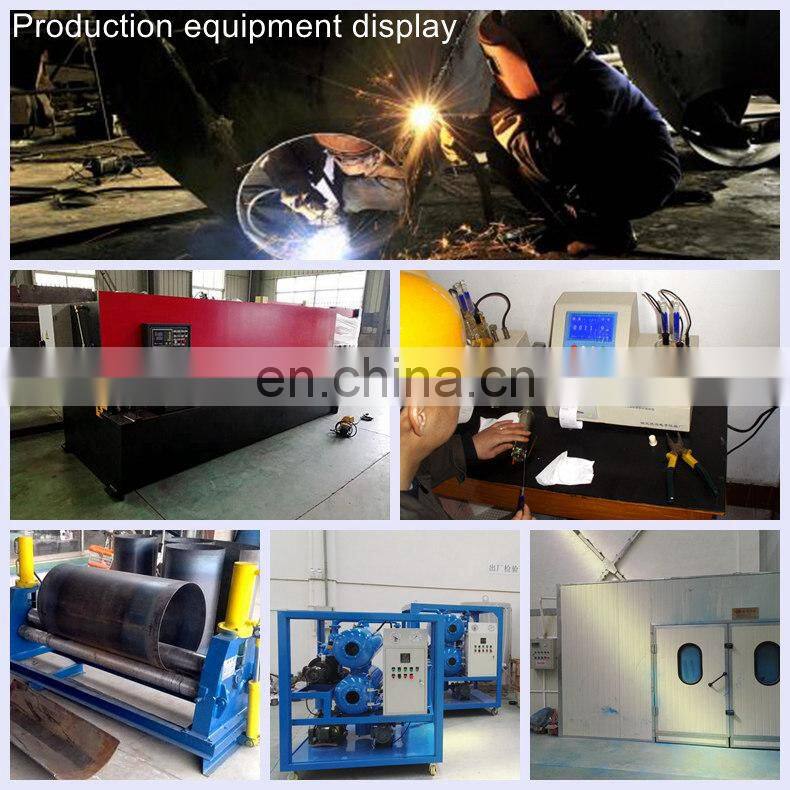

Company Profile
CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD is joint-stock high-tech enterprise from Chongqing China. We are professional in various oil purifier equipment manufacturing, main products cover vacuum transformer oil purifier, turbine oil treatment, hydraulic oil filtration, waste engine oil regeneration system etc. Since the foundation of our company, we always devote our efforts to produce good quality products. Relying on strong and completely technical supports, advanced producing equipment, perfect quality inspection method, fast and outstanding after-service, our company has developed into a national renowned oil purifier and oil filtration equipment manufacturer in China.
NAKIN Oil Purifiers:
NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.
Service Commitment：
CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD will always adhere to the business philosophy of “Responsible for product, Responsible for user, Responsible for sell”, keep the faith to create the national brand, keep innovation, keep improving and keep making the high quality oil purifier&oil filtration products with first-class after-service for getting the customer’s trust and love. Really building a new era in Brand-NAKIN with customers.
Certifications

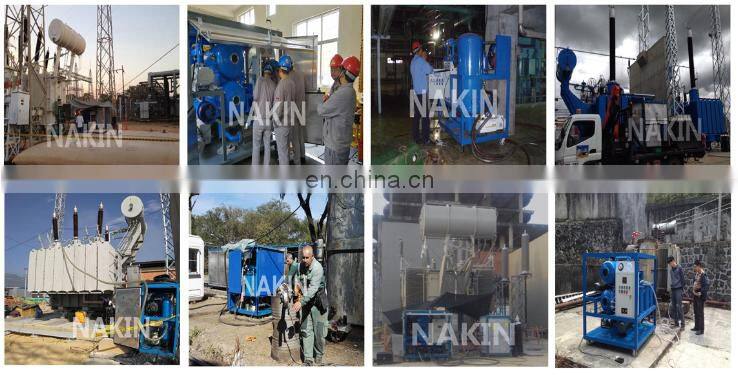

Successful Cases
FAQ
Question1. Can you please offer sample?
Answer: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.
Q2. What is your packing method?
A: Generally, our goods packed by wooden box.
Q3. What is your terms of payment?
A: Usually, we use T/T.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.
Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.
Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
