Home > Products > Metal Push Button > 22mm 12v 24v Waterproof Metal Push Button Electrical Switch Latching Momentary Annular Power Symbol with LampLed Indicator
22mm 12v 24v Waterproof Metal Push Button Electrical Switch Latching Momentary Annular Power Symbol with LampLed Indicator
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
1NO 1NC XD2PA12 XD2PA22 2NO 2NCXD2PA14 XD2PA24 Momentary Latching Toggle Joystick switch Controllers, monolever on off switch
-
16mm Start Horn Button Momentary Stainless Steel flat head Metal Push Button Switch 1NO 2pin reset button switch waterproof
-
Auto wire connector 1 2 3 4 5 6 Way 1P 2P 3P 4P 5P car connector Male Female Waterproof Electrical Connector Plug with cable
-
16mm Waterproof Metal Push Button Switch Ring and LED light 9-24V 12V 110V 220V Momentary Latching 1NO 1NC Wide Voltage
-
16mm Waterproof Momentary latching 1NO 1NC Metal Push Button Switch Ring and LED light 9-24V 12V 110V 220V Wide Voltage
-
16mm High Head Waterproof Metal Push Button Switch Reset Button Switch Momentary Horn Car Red Green Yellow Blue Black 3A 250 VDC
Product Description
Product Description
1.) parameter
| Model Description | |
| Model NO. | LB-22B metal push button switch |
| Mounting diameter | 22MM |
| Head shape | Plat Head/High Head |
| Switch Combination | 1NO 1NC |
| Operation type | Momentary/self locking |
| Illuminating type | Annular,power symbol,dot |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.5mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤13mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key
|
Stainless Steel/aluminum oxide/copper plate
|
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life | Rated:2A250VAC- 100,000 times Rated:5A250VAC-50,000 times Rated:8A250VAC-20,000 times Reated:10A250VAC- 20,000 times | Nut
Base Seat/ Bottom Seat | Nickel brass
PA66 |
| Mechanical Life | Maintained-200,000 times Self-locking-800,000 times |
Pins Contact | PA66 H65 Silver Plated |
| Waterproof | IP67 | Spring | Improved steel wire |
| Switch Rated Load | |||||
Project | Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 5A | ||||
| Rated Voltage | DC12V | DC24V | AC110V | AC250V | |
| Rated Current | Nonreactive Load | 2.5 | 2 | 4 | 3 |
| Inductive Load | 0.5 | 0.5 | 0.5 | 0.3 | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |

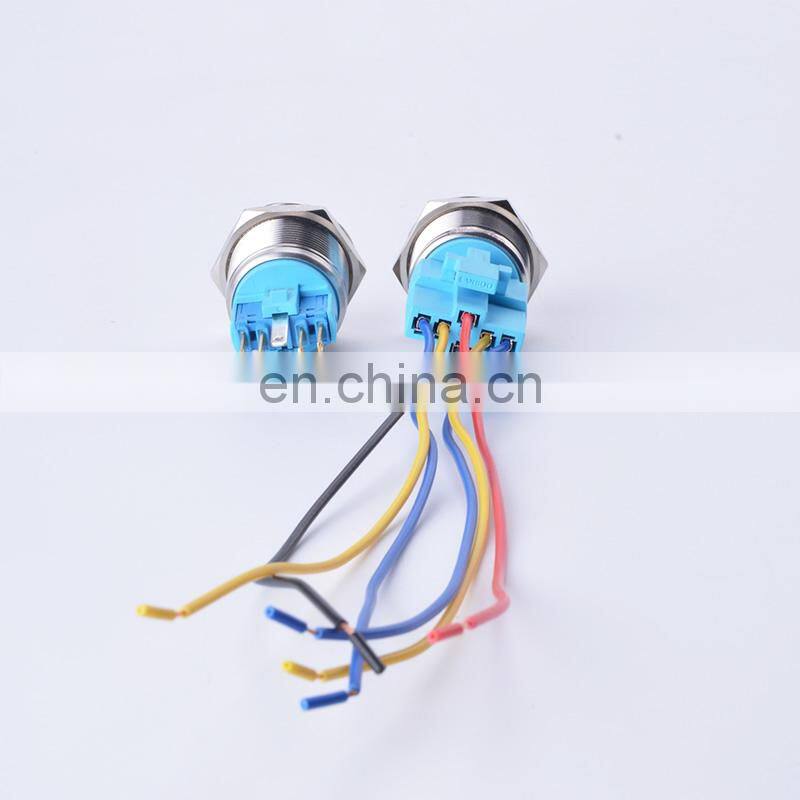

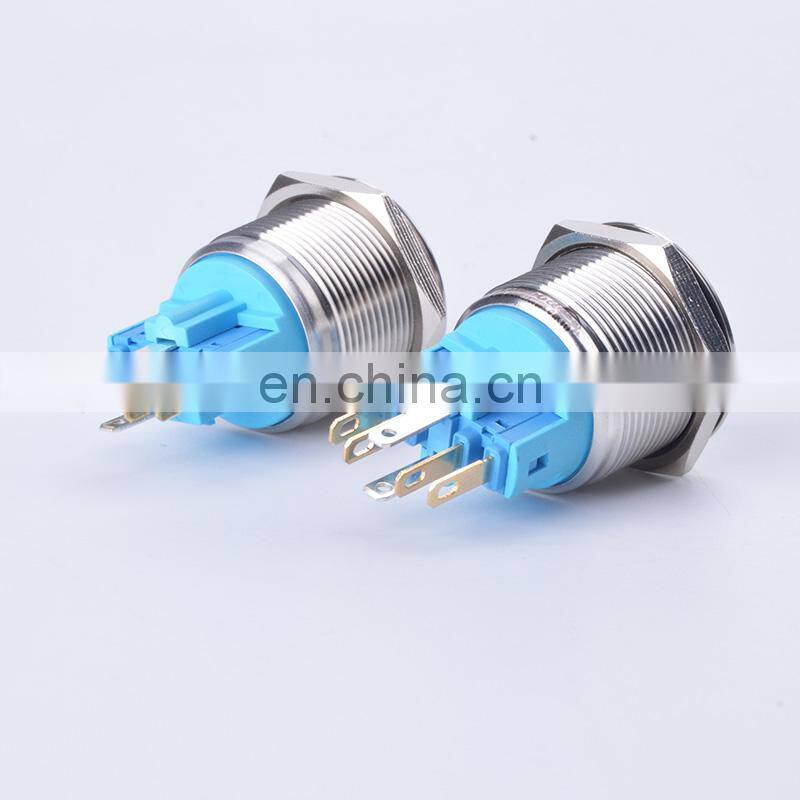

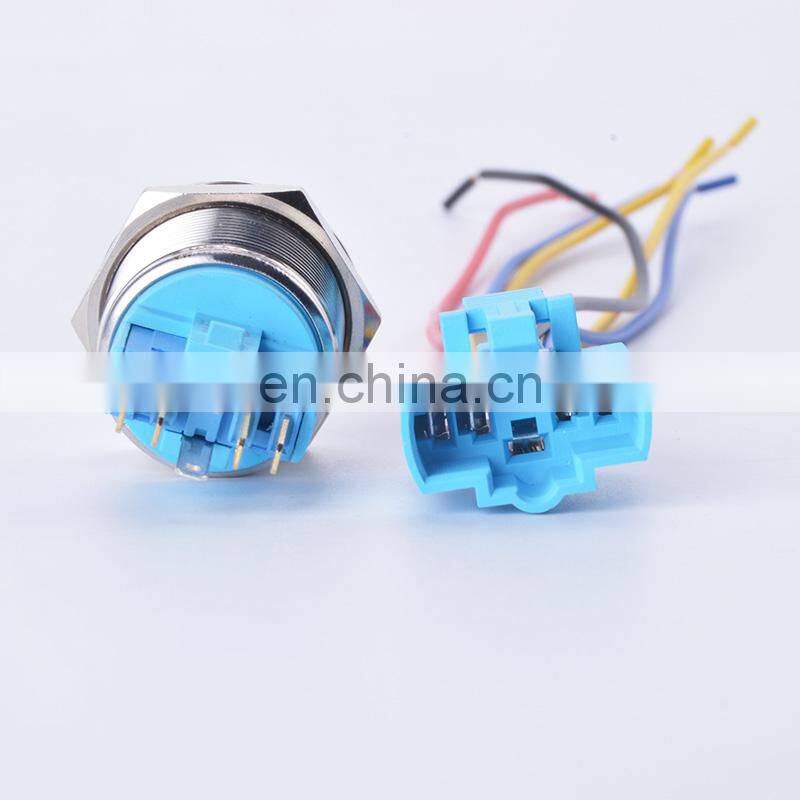

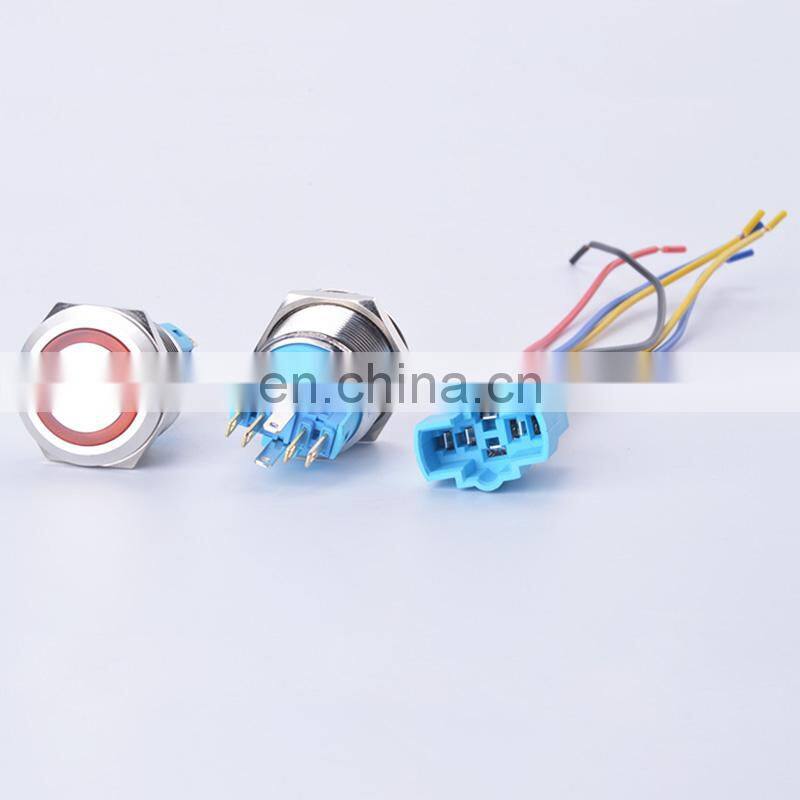

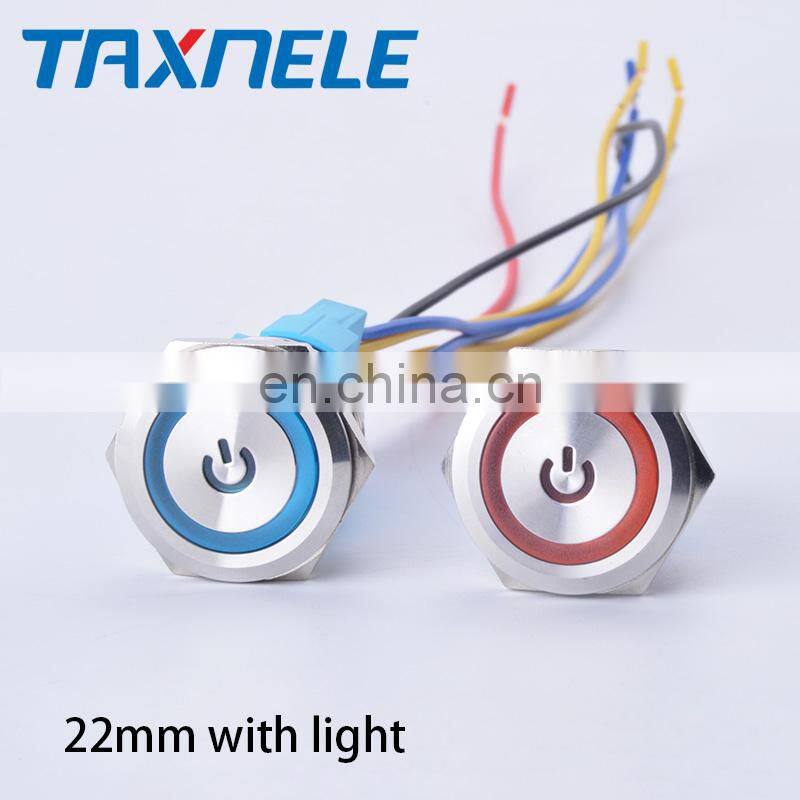

2.) product display
