Layer Chickens Rearing Cage A Type Style for Farm

1.  Material:

All of our cage was made of low carbon steel wire or Q235, Q 195.  If you haven't require, we will used the low carbon steel wire.

2. Surface treatment:

All the cages used hot dip galvanized or electric galvanized, PVC powder coated after galvanized.  But commonly it is electric galvanized.

About the price: the hot dip galvanized is much higher than the electric galvanized and PVC coated. But it will used for much long time.

3. All of our cage used automatic water system.

4. Our cage used the big wire to made, it is stronger for the chicken.

5. The cages is very easy to install, and we can offer the vedio after you place your order.

Wire diameter: 2.5-4.0mm.

Type: Ladder type, two side, "A" type and "H " type , 3 & 4 & 5 floors/side, 4 & 5 & 6 cells /floor, 3 or 4 chicken/cell.

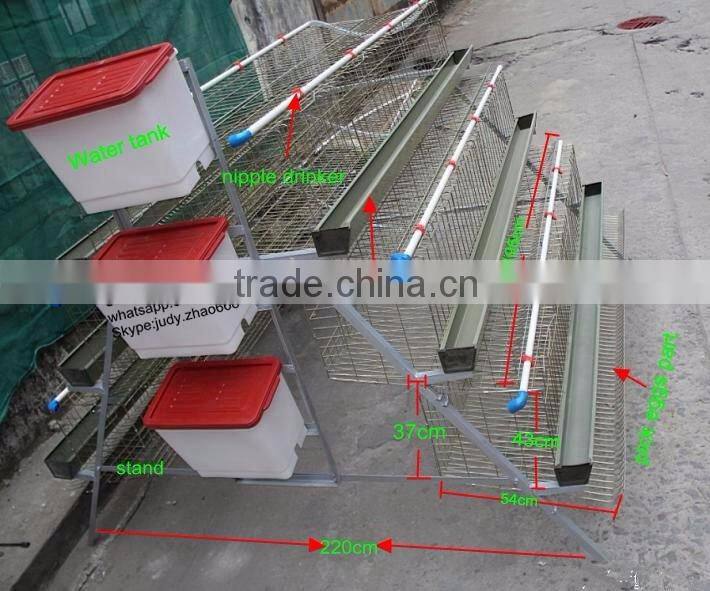

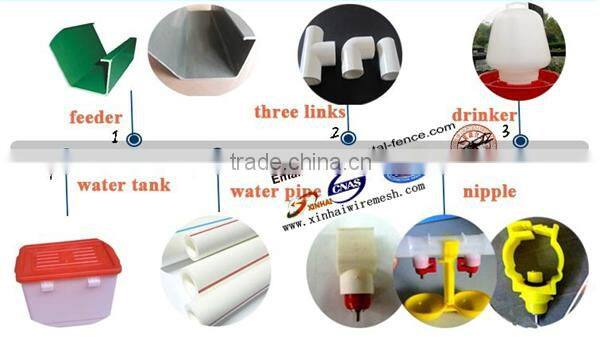

One sets include: Cage, legs, drinkers, water pipes, water tank, water pipe connector, water tank connector, feeder, feeder connector, clip of assemble, pincer of assemble.

The formation of chicken cage management system:

Specification of the frame per set:

   The loading quantity: 90 & 96 &108&120& 180 chicken one set
   The length: 1.8m to 2.4m
   The width: 2m to 2.8m
   The height: 1.5m to 2.4m

Production Process:

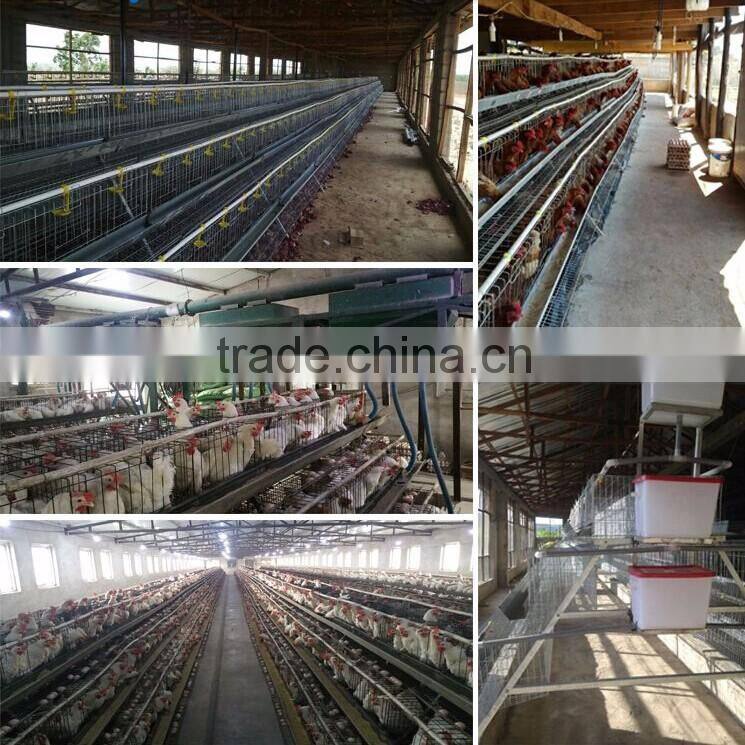

 Project case:

Our cage was widely used on Kenya, Zimbabwe, Uganda, South Africa, Asia etc....

If you want, we can offer the drawing after you tell me the chicken house size. Commonly, the 3 tiers cage is the most selling. Such as:  96 birds cage, 120 birds cage. It's easy to feed and Administration.

  Installation detail
