10 Gauge Galvanize Wrought Iron Steel Palisade Fencing Gate Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Steel Tube Barrier Fence Tubular Steel Palisade Fence and Gate
-
High Quality Palisade Fence Wrought Iron Fence Models of Gates
-
Europe Style Fencing Colorful W Section Palisade Fence
-
Colorful Powder Coated and Galvanized Steel Palisade Fence
-
Wholesale Residence Euro Fence Type Steel Picket Palisade Fencing
-
Galvanized PVC Coated Garden Iron Palisade Fence
Product Description

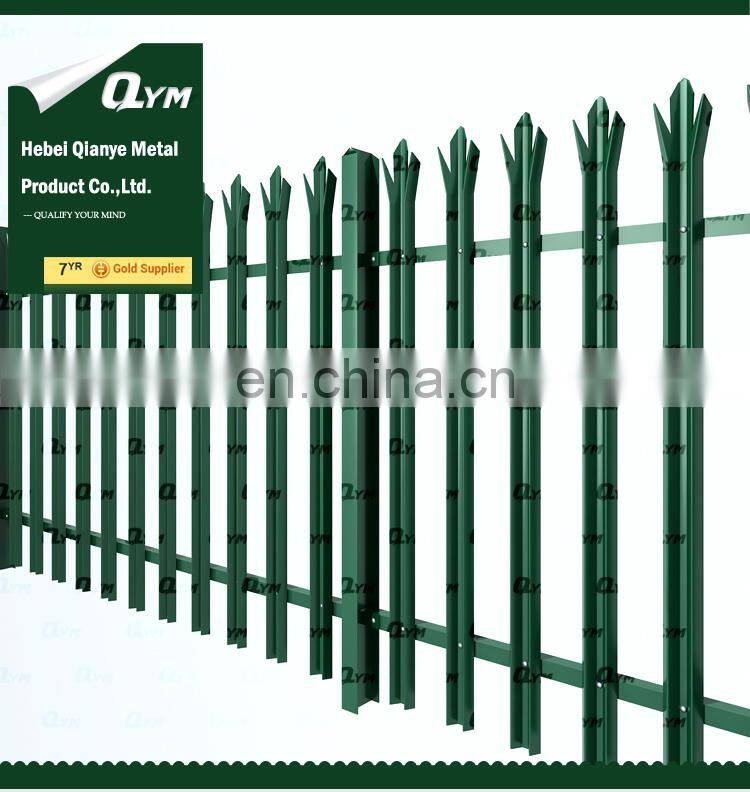

QYM- Palisade fence

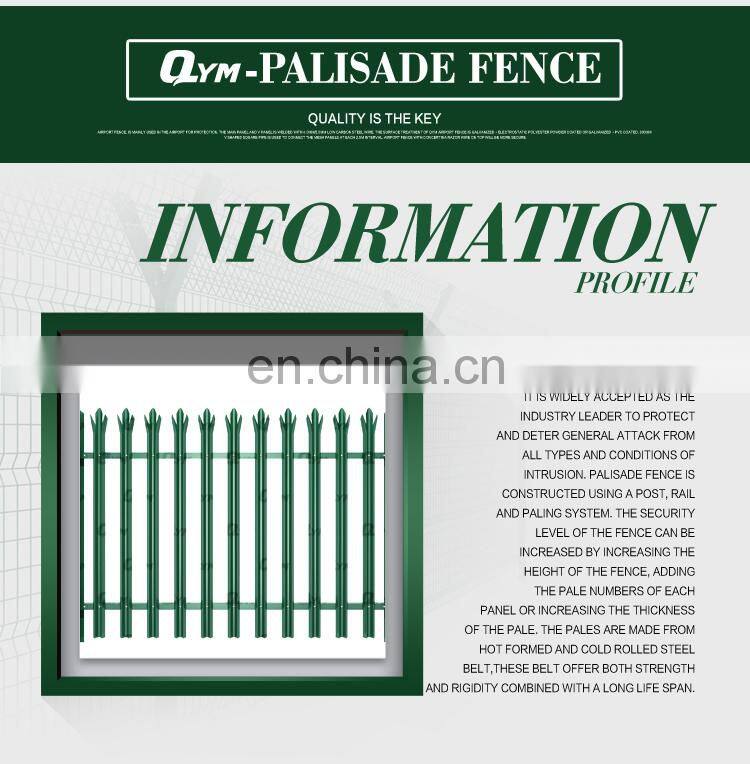

It is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.

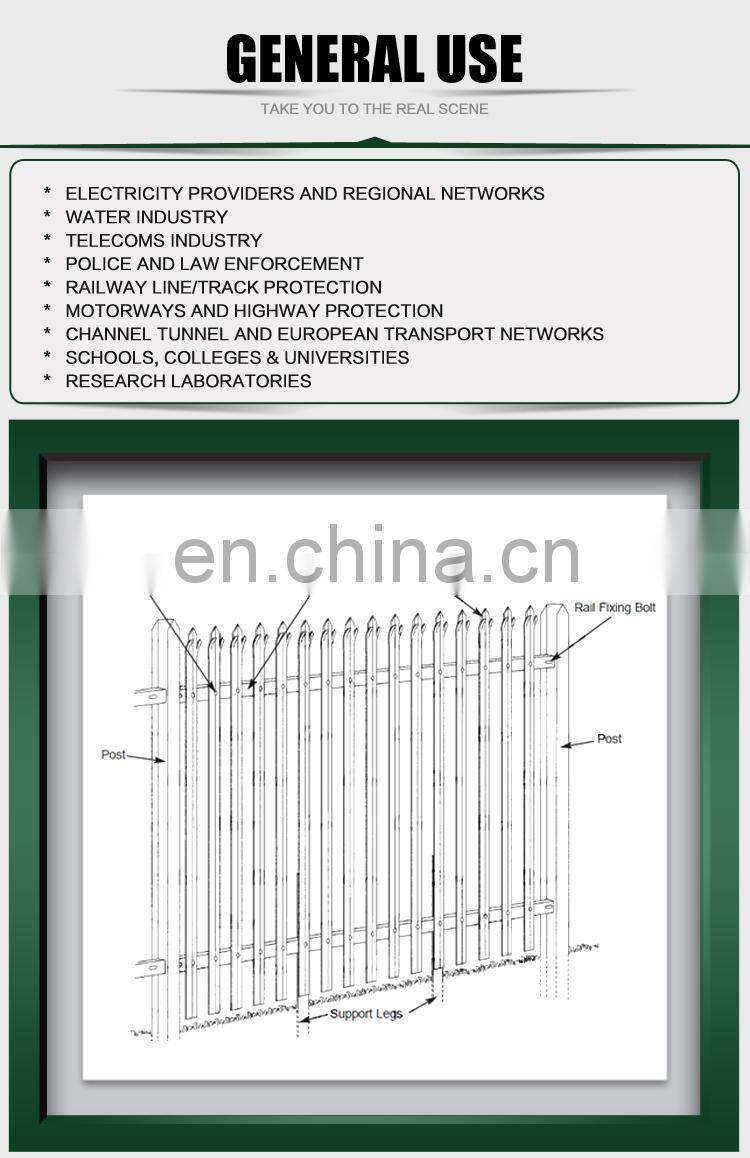

Palisade fence is constructed using a post, rail and paling system. The security level of the fence can be increased by increasing the height of the fence, adding the pale numbers of each panel or increasing the thickness of the pale. The pales are made from hot formed and cold rolled steel belt,These belt offer both strength and rigidity combined with a long life span.

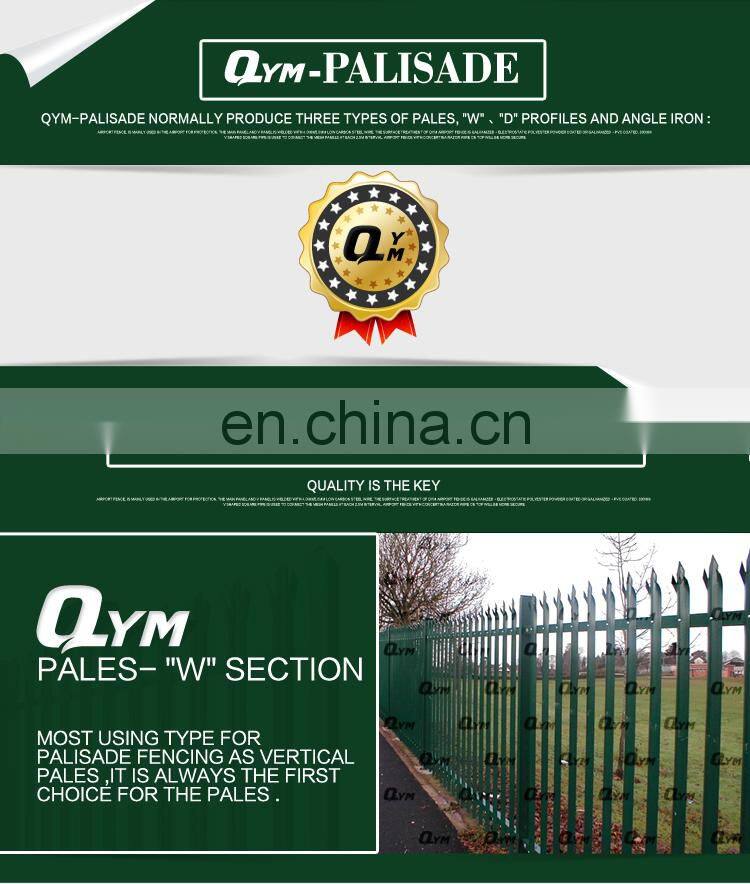

QYM-Palisade normally produce three types of pales, "W" ,"D" profiles and angle iron :Pales- "W" section Most using type for palisade fencing as vertical pales ,it is always the first choice for the pales .
Palisade fence is constructed using a post, rail and paling system. The security level of the fence can be increased by increasing the height of the fence, adding the pale numbers of each panel or increasing the thickness of the pale. The pales are made from hot formed and cold rolled steel belt,These belt offer both strength and rigidity combined with a long life span.
QYM-Palisade normally produce three types of pales, "W" ,"D" profiles and angle iron :Pales- "W" section Most using type for palisade fencing as vertical pales ,it is always the first choice for the pales .
Width | Thickness | Surface Treatment | Head | Height |
65mm - 75mm | 2.0mm 2.5mm 3.0mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | Single point Triple point | 1200mm |
1500mm | ||||
1800mm | ||||
2000mm | ||||
2100mm | ||||
2400mm | ||||
2700mm | ||||
3000mm |
Width | Thickness | Surface Treatment | Head | Height |
70mm | 2.0mm 2.5mm 3.0mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | Single point Triple point | 1200mm |
1500mm | ||||
1800mm | ||||
2000mm | ||||
2100mm | ||||
2400mm | ||||
2700mm | ||||
3000mm |
Comparing with "W" profile pales , this type is more economical.
Width | Thickness | Surface Treatment | Head | Height |
40x40 | 2.0mm - 3.0mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | Single point | 1200mm |
1500mm | ||||
1800mm | ||||
2000mm | ||||
2100mm | ||||
2400mm | ||||
2700mm | ||||
3000mm |

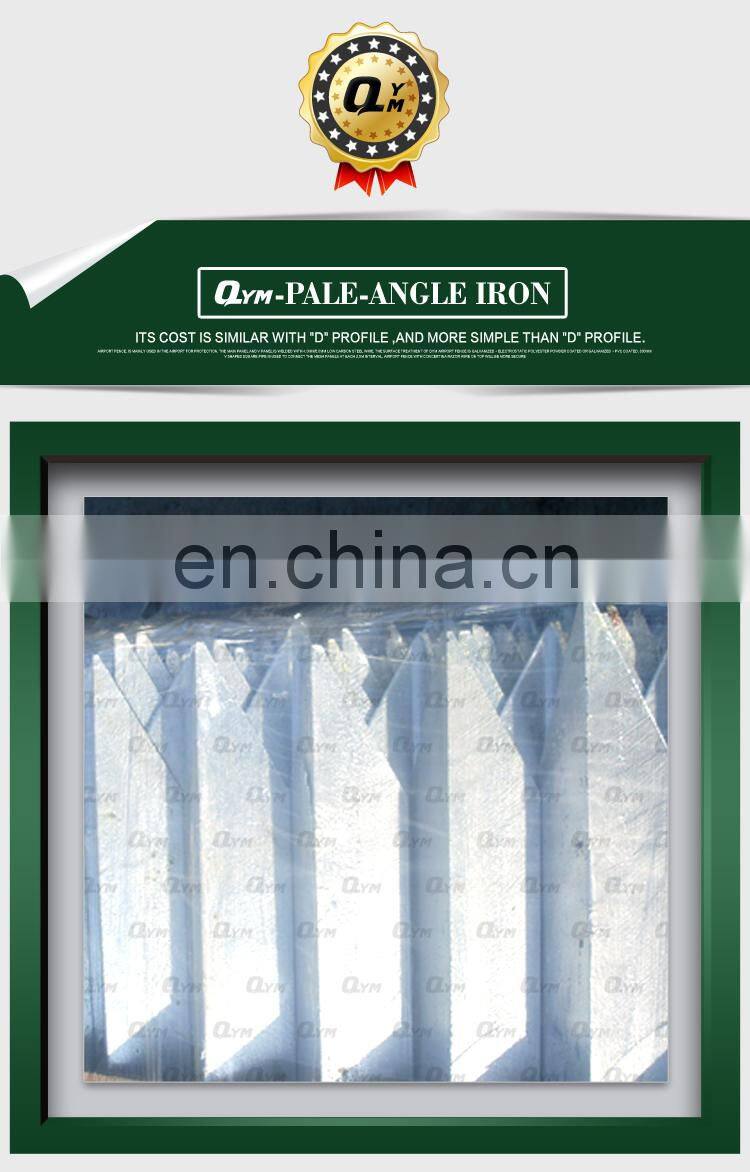

Its cost is similar with "D" profile ,and more simple than "D" profile.
Size | Thickness | Surface Treatment | Head | Height |
100x55mm 100x68mm 120x74mm | 3.5mm 4.0mm 4.5mm 5.0mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | Cut sharp | On the fence height basis |
As a connection pipe for the fence panels ,IPE type is the most using way.
Variations for post
In addition to the standard posts many variations are available to accommodate site requirements:
? wall fixing plates, cranked posts or base plated
? with cranked or straight extensions for barbed or razor wire
? cranked panels
In addition to the standard posts many variations are available to accommodate site requirements:
? wall fixing plates, cranked posts or base plated
? with cranked or straight extensions for barbed or razor wire
? cranked panels
Size | Thickness | Surface Treatment | Holes | Length |
50x50 40x40 | 5.0mm 6.0mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | With19 holes drilled on one edge side | 2710mm |
Company Information
Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products, such as airport fence, barb wire, chain link fence, concertina razor wire, double wire fence, euro fence, palisade fence, temporary fence, welded mesh, welded mesh fence, wire mesh, etc. Its registered capital is RMB50, 100, 000(about USD 7,400, 000), covering a land area of 30, 000 square meters.
Service
1>Quality Products:
We follow the policy of Seeking Development through Quality and Establishing Reputation via
Quality Products. We try to meet customers' requirements with excellent quality products.
2>Honest Service:
We offer honest service to customers. We provide products with sincere and excellent service and the most prompt delivery.
3>Innovation:
We have advanced inspection and production equipment and can develop new products to meet the demand of market. We can also accept customized orders. Our strong R&D capability enables us to innovate almost everyday.
Service
1>Quality Products:
We follow the policy of Seeking Development through Quality and Establishing Reputation via
Quality Products. We try to meet customers' requirements with excellent quality products.
2>Honest Service:
We offer honest service to customers. We provide products with sincere and excellent service and the most prompt delivery.
3>Innovation:
We have advanced inspection and production equipment and can develop new products to meet the demand of market. We can also accept customized orders. Our strong R&D capability enables us to innovate almost everyday.
Packing & Shipping
1>Panel Packing:
It has soft sponge at the botom of the pallet to avoid the botom fence panel to be damaged by metal pallet.
It has 4 metal corners to keep the pallet be more strong.
It has metal plate under the plastic bandage to avoid the bandage to presure the fence panel.
It has wood plate on the top of pallet to keep the above pallet to de destroyed by the pallet.
2>Post Packing:
The post is covered with plasti cap then packed with plastic flim. Clips packed by set.
3>Accessories:
Plastic bags + carton boxes
It has soft sponge at the botom of the pallet to avoid the botom fence panel to be damaged by metal pallet.
It has 4 metal corners to keep the pallet be more strong.
It has metal plate under the plastic bandage to avoid the bandage to presure the fence panel.
It has wood plate on the top of pallet to keep the above pallet to de destroyed by the pallet.
2>Post Packing:
The post is covered with plasti cap then packed with plastic flim. Clips packed by set.
3>Accessories:
Plastic bags + carton boxes
FAQ
Q: What's QYM's after service policy?
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Anyissues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable.
Q: How can we get the quotation from QYM?
A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Anyissues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable.
Q: How can we get the quotation from QYM?
A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
