Product Description

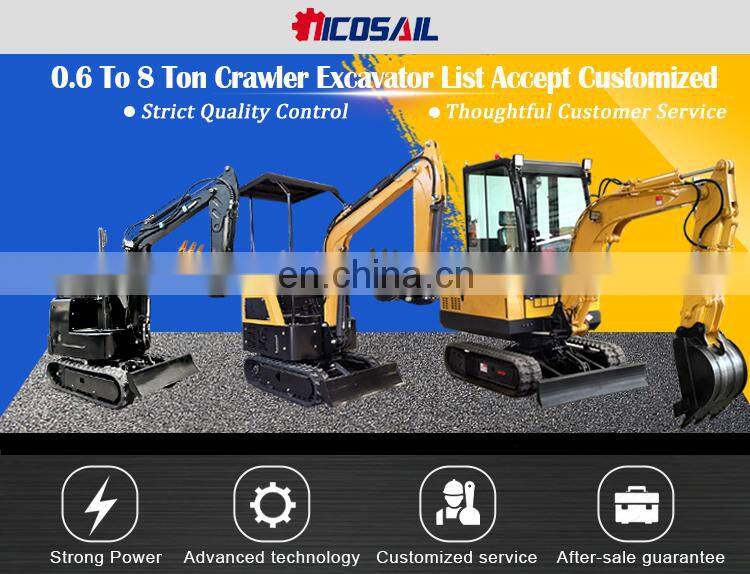

New Excavator Price 0.8 ton 1 ton 2 ton 3 Ton mini Excavator Digging Machine
This mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Popular Excavator Type List


No Tail Type
| Model | 16EV80 | 18J | 18Z | 20STelescopic crawler |
| Vehicle weight | 1340kg | 1340kg | 1600kg | 1850kg |
| Bucket capacity | 0.025m3 | 0.025m3 | 0.045m3 | 0.07m3 |
| Bucket width | 40cm | 40cm | 40cm | 40cm |
| Engine | EV80 | Yanmar 3TNV70 | Yanmar 3TNV70 | Yanmar 3TNV70 |
| Power | 14 Kw/ 2200 rpm | 10.3Kw/ 2200 rpm | 10.3Kw/ 2200 rpm | 10.3Kw/ 2200 rpm |
| Rotary speed | 12rpm | 12rpm | 12rpm | 12rpm |
| Walking speed | 2km/h | 2km/h | 3km/h | 2.7km/h |
| Grade ability | 30° | 30° | 30° | 30° |
| Crawler width | 18cm | 18cm | 23cm | 25cm |
| Crawler length | 1090mm | 1090mm | 1250mm | / |
| Max. Digging Radius | 2400mm | 2400mm | 3470mm | 3600mm |
| Max. Digging Depth | 1400mm | 1400mm | 1500mm | 2320mm |
| Max. Digging Height | 2490mm | 2490mm | 3275mm | 3720mm |
| Max unloading height | 1750mm | 1750mm | 1900mm | 2260mm |

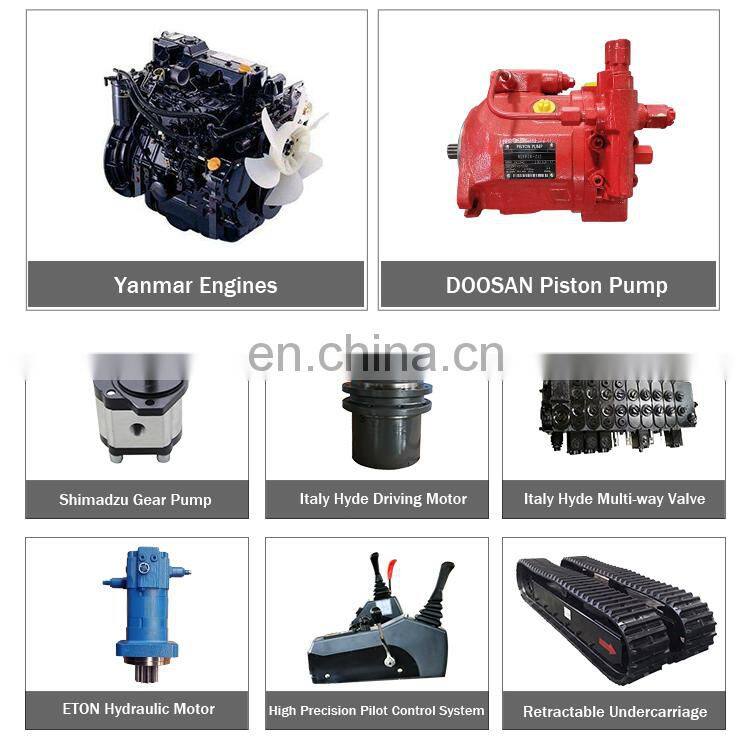

1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.
4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
